Help CenterDry-Type Isolation Transformer for Welding Applications 3 Phase 415V to 110V
Product Spotlights
Related Products
-
Dry-Type Isolation Transformer 415V 380V Input to 220V 110V Output 3 PhaseUS$ 180 - 2000MOQ: 10 Units -
Transformer With Overload Protection 3 Phase 415V/380V to 220V/110V ACUS$ 180 - 2000MOQ: 10 Units
-
3 Phase 415V/380V to 220V/110V AC Step-Down Dry-Type Isolation TransformerUS$ 180 - 2000MOQ: 10 Units
-
3 Phase Step-Down Transformer With 1-Year Warranty and Technical SupportUS$ 180 - 2000MOQ: 10 Units
-
Single Phase Transformer 220V to 24V 26V With Overload Protection and Cooling FanUS$ 15 - 39MOQ: 10 Units

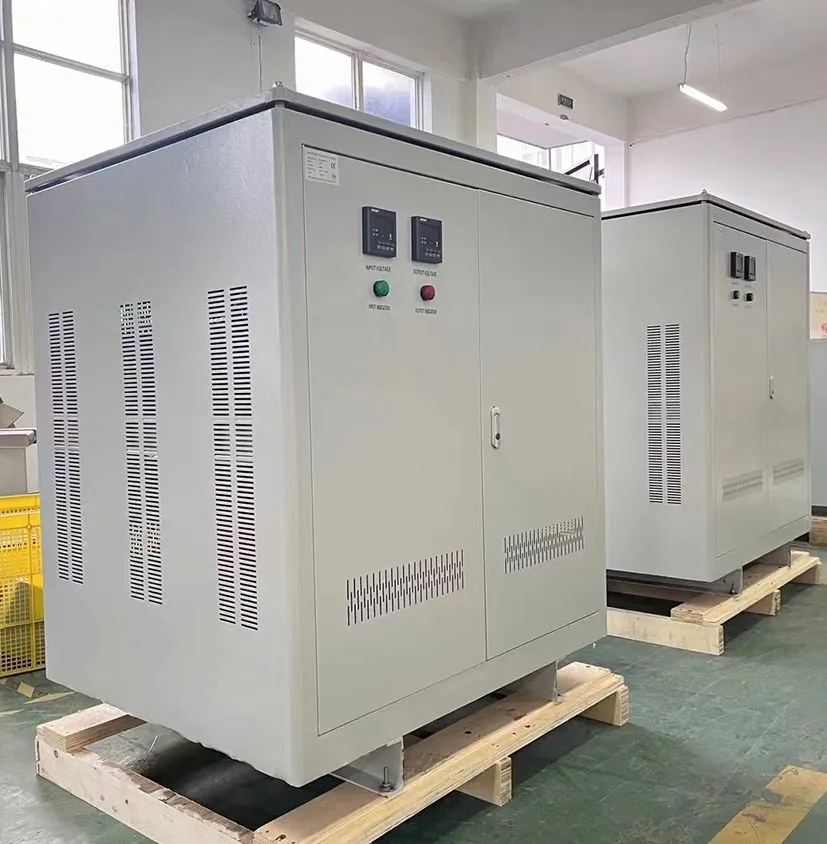

As a professional manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in providing robust and reliable power solutions for demanding industrial environments. Our Dry-Type Isolation Transformer for Welding Applications is engineered to deliver stable and clean 110V power from a 415V 3-phase supply, ensuring optimal performance and safety for your welding equipment. Designed with the challenges of industrial welding in mind, this transformer isolates sensitive welding machinery from power line disturbances, significantly reducing the risk of equipment damage and improving weld quality.
This transformer is a critical component for any workshop or fabrication facility relying on consistent and safe power for welding operations. Its core value lies in providing a dedicated, isolated power source that protects both the operator and the equipment from electrical hazards, while also enhancing the longevity and reliability of your welding systems. We understand that downtime is costly, which is why our transformers are built for durability and continuous operation.
The heart of this product is its dry-type, air-cooled design, which eliminates the risks and maintenance associated with liquid-filled transformers. There are no oils or coolants to leak, making it an environmentally friendly and safer choice for indoor installations. The high-grade insulation materials ensure excellent thermal stability and a long operational life, even under the high intermittent loads typical of welding applications.
Key Features & Technical Advantages:
- Enhanced Safety & Isolation: Provides complete galvanic isolation between primary and secondary circuits. This protects welding equipment from voltage spikes, surges, and noise on the main power line, and is crucial for operator safety.
- Stable Output for Quality Welds: Delivers a consistent and stable 110V output, which is essential for maintaining arc stability and achieving high-quality, repeatable welds, especially in sensitive processes like TIG welding.

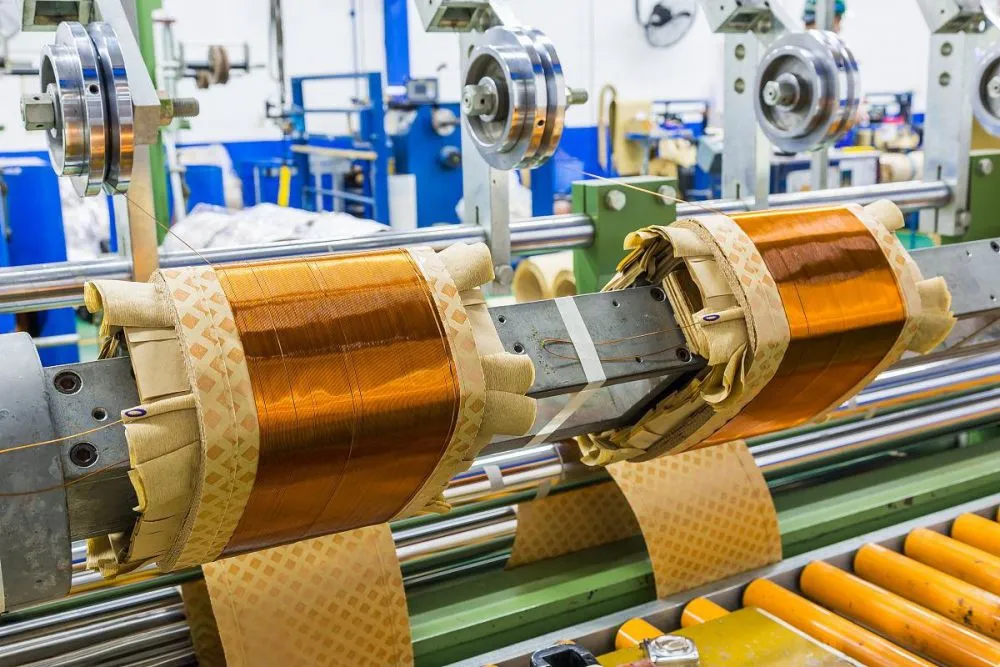

- Robust Construction for Industrial Use: Built with high-quality silicon steel cores and copper or aluminum windings (options available) to handle the high inrush currents and fluctuating loads of welding machines.
- Low Maintenance & High Reliability: The dry-type design requires minimal maintenance. There is no need for periodic oil testing or containment systems, reducing long-term operating costs.
- Flexible Installation: Available in various enclosure types (e.g., IP23 for basic protection) suitable for floor mounting or wall mounting, allowing for flexible integration into your workshop layout.
- Improved Power Factor: Can help in correcting the power factor of your welding setup, leading to potential energy savings and reduced demand charges from utility providers.
Technical Specifications Overview:
| Input Voltage | 3 Phase, 415V AC (±10%) |
| Output Voltage | 3 Phase, 110V AC |
| Frequency | 50/60 Hz (as required) |
| Cooling Method | AN/AF (Air Natural / Air Forced) |
| Insulation Class | Class H or higher (customizable) |
| Ambient Temperature | Designed for operation up to 40°C |
| Altitude | Suitable for installations up to 1000m above sea level |
| Standards | Designed and manufactured in compliance with relevant IEC standards |
Benefits for Your Business:
- Protects Capital Investment: Shields expensive welding machines from harmful power quality issues, extending their service life and reducing repair costs.
- Increases Productivity: Minimizes equipment faults and failures due to electrical problems, leading to less downtime and higher workshop throughput.
- Ensures Worksite Safety: The isolation barrier significantly reduces the risk of electric shock, creating a safer environment for your personnel.
- Offers Operational Flexibility: Allows for the safe operation of 110V welding equipment on standard 415V industrial power grids, simplifying electrical infrastructure.
- Provides a Clean Power Source: Essential for welding processes that use digital controls or are sensitive to electrical noise, ensuring process consistency.
Backed by Jinhua Dika Electrical's commitment to quality and a comprehensive management system framework, this Dry-Type Isolation Transformer is a product you can trust. Our company, with over a decade of experience and a team of 11-50 dedicated professionals, serves a global market from North America to Southeast Asia. We maintain a robust export operation valued between US$1-1.5 million annually, supported by efficient logistics from major ports like Shanghai, Tianjin, Guangzhou, and Ningbo. This transformer embodies our focus on creating reliable, safe, and efficient electrical solutions for industrial clients worldwide. To enhance the performance and safety of your welding operations, contact us today for a detailed quotation or to discuss your specific power requirements.
Frequently Asked Questions (FAQ)
-
Q: Why is an isolation transformer specifically needed for welding applications?
A: Welding machines, especially arc welders, draw high, intermittent currents that can introduce electrical noise and surges back into the power line. An isolation transformer creates a separate, clean circuit for the welder, protecting it from upstream disturbances and preventing it from disrupting other sensitive equipment on the same line. It also provides a crucial safety barrier against electric shock. -
Q: What are the main advantages of a dry-type transformer over an oil-filled one for my workshop?
A: Dry-type transformers are inherently safer as they pose no risk of oil leaks or fires. They require less maintenance (no oil testing/filtering), are more environmentally friendly, and are generally better suited for indoor installations due to their lower fire load. They also often have a smaller footprint. -
Q: Can this transformer handle the high inrush current when multiple welding machines start simultaneously?
A: Yes, our transformers are designed with robust cores and windings to withstand the high magnetic inrush currents typical of inductive loads like welding machines. It is recommended to specify your total connected load and potential simultaneous start-up scenarios so we can recommend the appropriate kVA rating. -
Q: Is the output voltage adjustable, or is it fixed at 110V?
A: The standard model provides a fixed 110V output from a 415V input. However, we offer customizable designs where tap changers or other adjustments can be incorporated upon request to fine-tune the output voltage if needed for specific applications. -
Q: What kind of protection features does the transformer have?
A> Standard protection often includes thermal protection via embedded temperature sensors (optional) and a high-grade enclosure (e.g., IP23) to protect against solid objects and water spraying. Additional protection like circuit breakers or fuses on the primary and secondary sides can be integrated into the design or panel. -
Q: How do I determine the correct kVA rating needed for my welding setup?
A> You should sum the kVA ratings of all welding machines that will be connected and may operate simultaneously. It's advisable to add a 20-25% safety margin to account for inrush currents and future expansion. Our technical team can assist you with this calculation based on your equipment list. -
Q: Are these transformers suitable for outdoor installation?
A> While the dry-type design is resilient, standard enclosures like IP23 are meant for indoor or sheltered outdoor use. For full outdoor exposure, a higher ingress protection (IP) rating enclosure (e.g., IP54 or IP55) is available as a customization to protect against rain and dust. -
Q: What is the typical lead time for an order, and what are the shipping terms?
A> Lead times vary based on the order quantity and specifications. As an experienced exporter, we ship globally from major Chinese ports (Shanghai, Tianjin, Guangzhou, Ningbo). We work with customers on standard Incoterms like FOB, CIF, or CFR, and can provide detailed logistics solutions tailored to your destination.
