Help CenterSingle Phase 220V to 24V 26V Step Down Transformer for Industrial Control Panels
Product Spotlights
Related Products
-
220V to 24V 26V Isolation Transformer for PLC and Automation System Power SupplyUS$ 15 - 39MOQ: 10 Units -
Step Down Voltage Converter 220V to 24V 26V for CNC Machine Tool Lighting SystemsUS$ 15 - 39MOQ: 10 Units
-
Power Supply Transformer 220V to 24V 26V for Industrial Oven and Heating Element ControlUS$ 15 - 39MOQ: 10 Units
-
24V 26V Step Down Transformer for Conveyor Belt and Packaging Machine Safety CircuitsUS$ 15 - 39MOQ: 10 Units
-
Copper Wound Single Phase Transformer 220V AC to 24V 26V AC for MachineryUS$ 15 - 39MOQ: 10 Units
As a dedicated manufacturer with over a decade of expertise in electrical components, Jinhua Dika Electrical Equipment Co., Ltd. specializes in providing reliable power solutions for industrial automation. Our Single Phase 220V to 24V/26V Step Down Transformer is engineered specifically for the demanding environment of industrial control panels. It ensures a stable, isolated low-voltage supply, which is critical for protecting sensitive PLCs, relays, contactors, and indicator lights from mains voltage fluctuations and surges, thereby enhancing system longevity and operational safety.
This transformer is a cornerstone for safe and efficient industrial control systems. By stepping down the standard 220V AC supply to a safer 24V or 26V AC, it creates a segregated control circuit that minimizes electrical hazard risks for personnel during maintenance and troubleshooting. The robust design focuses on consistent performance under continuous operation, which is essential for manufacturing lines, machinery, and process control applications where downtime is costly.
Core Technical Specifications & Design Advantages:
- Precise Voltage Conversion: Delivers a stable output of either 24V or 26V AC from a 220V AC single-phase input, with tight voltage regulation to ensure control devices receive consistent power.
- Robust Construction for Industrial Use: Available in both encapsulated (resin-filled) and open-frame designs. The encapsulated version offers superior protection against moisture, dust, and corrosive atmospheres, while the open-frame type facilitates better heat dissipation.
- Flexible Installation: Designed for easy integration into control panels with options for standard panel mounting or convenient DIN rail mounting, saving valuable panel space and simplifying wiring.
- Enhanced Safety & Isolation: Provides galvanic isolation between the primary and secondary windings. This isolation is vital for breaking ground loops, reducing noise, and protecting low-voltage circuitry from high-voltage transients on the mains line.

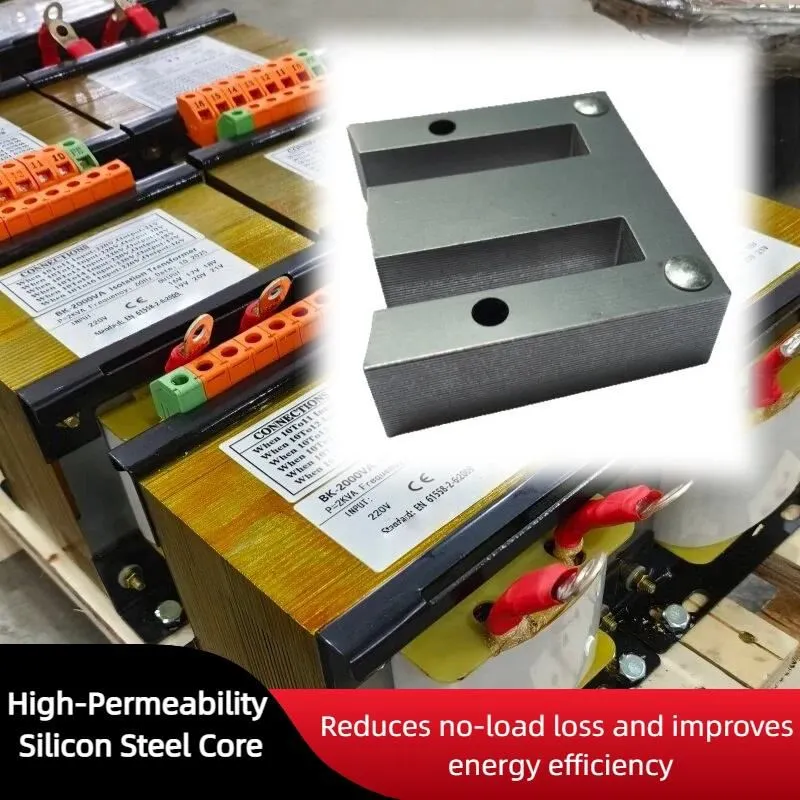

- Thermal Management: Built with high-grade lamination cores and copper windings to minimize losses and heat generation. Natural air cooling is standard, ensuring quiet and maintenance-free operation.
- Customization & Options: While our standard units are highly reliable, we offer optional features such as integrated thermal cut-offs or overload protection devices for added safety in critical applications. Specific power ratings (VA/kVA) are available upon request to match your exact load requirements.
Detailed Parameter Table:
| Parameter | Specification |
| Input Voltage | 220V AC, 50/60Hz, Single Phase |
| Output Voltage | 24V AC or 26V AC (Specify) |
| Power Rating | Available from 50VA to 5kVA (Customizable) |
| Insulation Class | Class B (130°C) Standard |
| Efficiency | >90% (Typical at full load) |
| Mounting | Panel Mount / DIN Rail Mount (Optional) |
| Operating Temperature | -10°C to +40°C (Standard) |
Benefits for Your Business:
- Increased System Reliability: A stable power source prevents malfunctions in control components, reducing unplanned stoppages.
- Improved Personnel Safety: Low-voltage control circuits significantly lower the risk of electric shock.
- Reduced Electrical Noise: Isolation helps in creating cleaner signals for sensors and communication modules within the panel.
- Long-Term Cost Savings: Durable construction and reliable operation translate to lower maintenance costs and longer service intervals for your control systems.
Backed by Jinhua Dika's commitment to quality, evidenced by our adherence to recognized management standards and an annual export value reflecting global trust, this transformer is more than just a component—it's a investment in your control system's integrity. Our products reach diverse markets worldwide from major Chinese ports, ensuring reliable logistics. Choose a transformer built with the precision and durability required for modern industrial automation. Contact us today to discuss your specific requirements or to request a quotation for your next project.
Frequently Asked Questions (FAQ):
Q1: What is the primary purpose of this step-down transformer in a control panel?
A1: Its main purpose is to provide a safe, isolated, and stable low-voltage (24V/26V AC) power source for all control devices within the panel, such as PLCs, relays, and indicators, protecting them from the higher and potentially noisy 220V mains voltage.
Q2: Can this transformer be used with both 50Hz and 60Hz power systems?
A2: Yes, our standard design is compatible with both 50Hz and 60Hz input frequencies, making it suitable for a wide range of international applications.
Q3: What are the differences between the encapsulated and open-frame construction?
A3: Encapsulated transformers are potted in resin, offering excellent resistance to moisture, dust, and vibration, ideal for harsh environments. Open-frame transformers have exposed windings on a core, which often allows for better heat dissipation and may be more cost-effective for clean, indoor panels.
Q4: How do I determine the correct power rating (VA) I need for my application?
A4: You should calculate the total volt-ampere (VA) requirement by summing the power consumption of all devices that will be powered by the transformer's secondary. It is recommended to add a 20-30% safety margin to this total when selecting the transformer rating.
Q5: Does the transformer provide any form of overload protection?
A5: Our standard units do not include built-in electronic protection. However, we strongly recommend protecting the transformer's primary circuit with a suitably rated fuse or circuit breaker. Optional models with integrated thermal protectors are also available upon request.
Q6: Is the output voltage adjustable, or is it fixed at 24V/26V?
A6: The output voltage is fixed based on the transformer's winding ratio. You must specify your required output voltage (24V or 26V) when ordering. For applications requiring a variable voltage, a separate variable autotransformer (variac) would be needed upstream.
Q7: What are the standard lead times for this product?
A7: Lead times vary based on the specific model and order quantity. For standard power ratings, we often have stock or short production cycles. We provide accurate lead time information with every quotation.
Q8: Can you provide custom transformers with different input/output voltages or special enclosures?
A8: Absolutely. As a manufacturer, we have the capability to design and produce custom transformers. Please contact our technical sales team with your detailed specifications for a customized solution.
