Product Description:

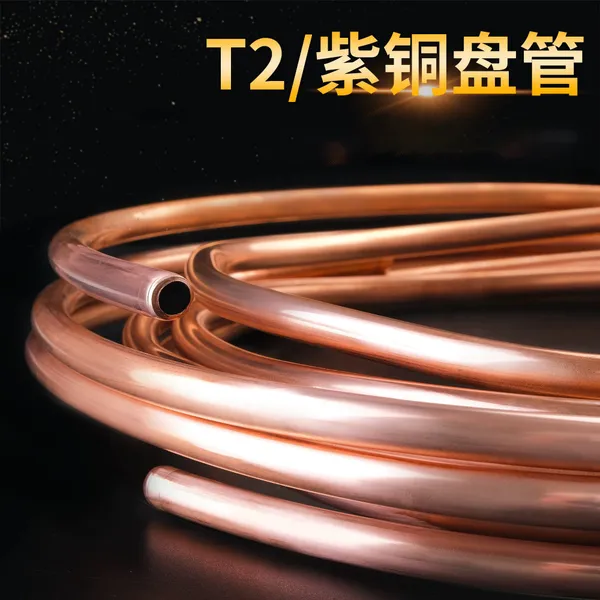

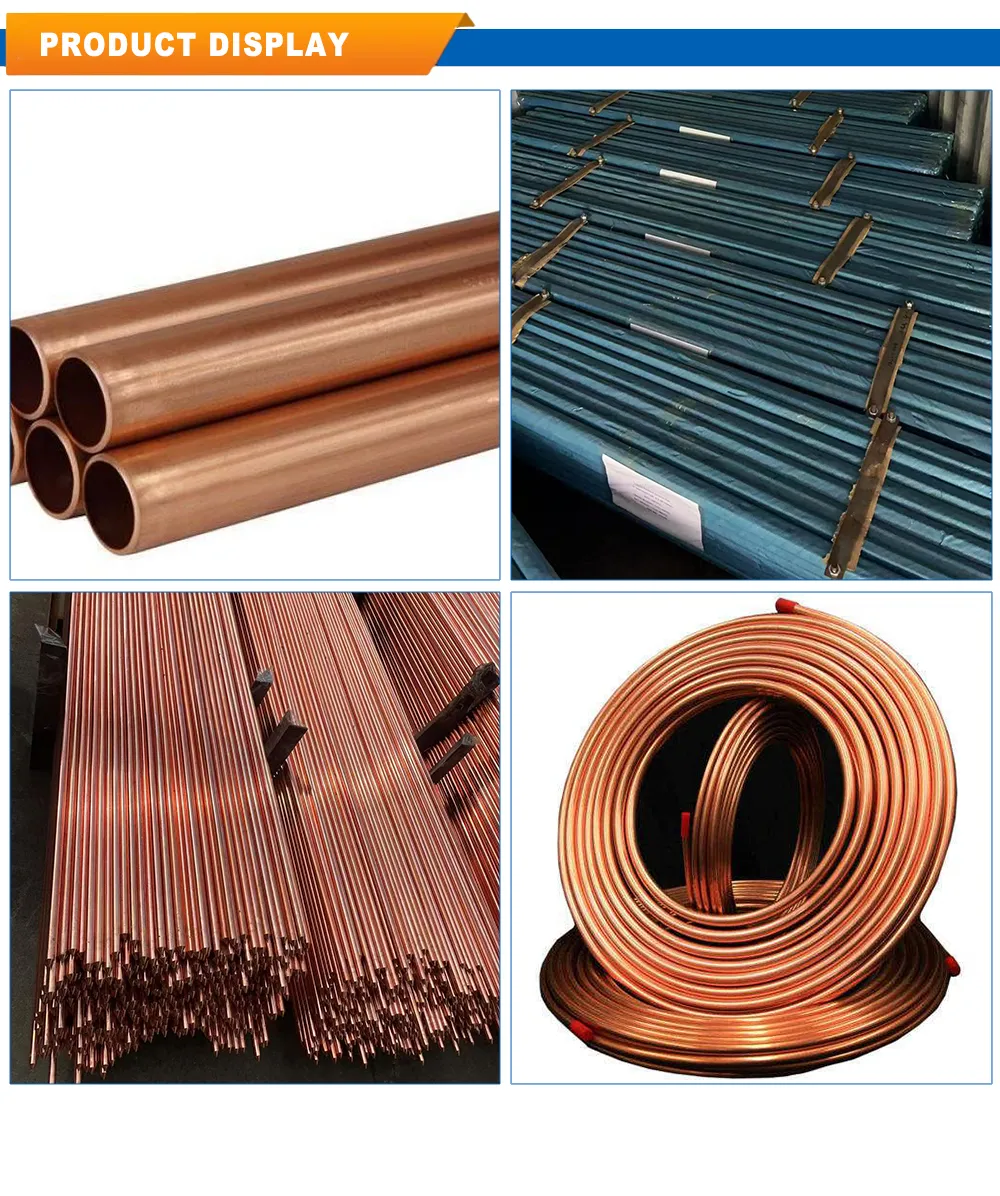

Copper Coil / Pancake Coil – The Standard Choice for HVAC & Refrigeration Lines
Copper coils (also known as pancake coils or copper tubing coils) are seamless copper tubes wound into circular coils. They are manufactured from high-purity copper through a precision drawing and annealing process, resulting in a soft, flexible tube that can be easily bent and routed without kinking.
Why choose copper coil over straight pipe:
Long continuous lengths – Reduce joints and potential leak points
Flexible installation – Easy to bend around obstacles
Cost-effective – Less scrap, faster installation
Space saving – Compact coil packaging for transport and storage
Key standards: ASTM B280 (USA), EN 12735-1 (Europe), AS/NZS 1571 (Australia/New Zealand), JIS H3300 (Japan)
Typical applications: Air conditioning refrigerant lines, refrigeration systems, heat pumps, water heaters, solar heating systems, oil coolers, plumbing, and gas distribution.
Each coil is cleaned, dried, capped, and vacuum-sealed or nitrogen-purged to ensure internal cleanliness. MOQ: 500 kg – 1 ton, trial orders welcome.
Key Specifications (Copper Tube)
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM B280, B88, B68, EN 1057, JIS H3300, GB/T 17791 |
Others on request |
Material / Grade |
C11000 (ETP), C12200 (DHP), Cu-DHP, Cu-ETP |
Purity: Cu ≥99.9% |
Outer Diameter (OD) |
3 mm – 219 mm |
Custom on request |
Wall Thickness |
0.3 mm – 10 mm |
– |
Length |
Straight: 3m / 6m / custom; Coil: 15–50m per coil |
Level wound up to 500m |
Temper |
Soft (annealed), half-hard, hard |
– |
Surface |
Bright annealed, clean, oilfree |
Tinning available |
Density |
8.94 g/cm³ |
– |
Testing |
Eddy current, hydrostatic, tensile, hardness |
Mill cert provided |
Packaging |
End capped, bundled, wooden case / pallet |
Seaworthy, ISPM 15 |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
