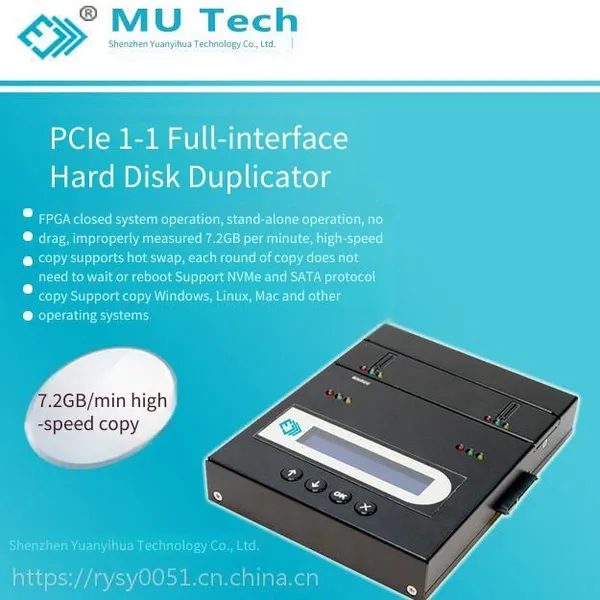

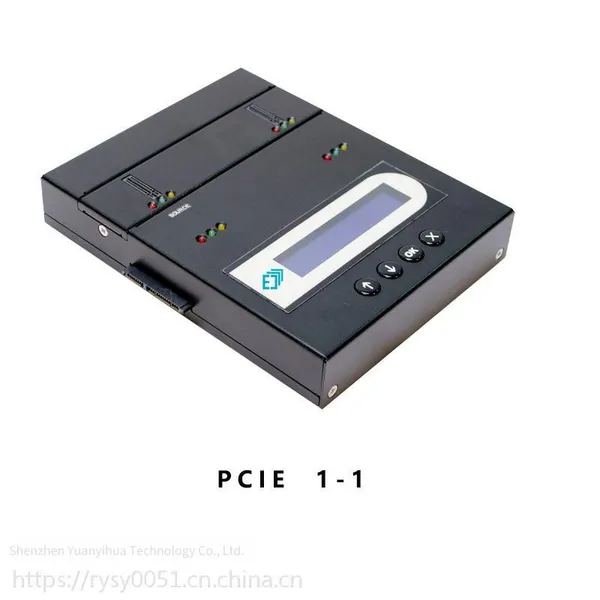

PCIE 1-1 SSD Hard Drive Copier
1. FPGA architecture with an independent operating system, stand-alone operation, no slowdown, no system crash
2. High-speed copying at 7.2GB per minute
3. Supports hot-swapping, no need to wait or restart the machine between each round of copying
4. Supports (M.2) NVMe and SATA transmission signals
5. Intelligent detection of copying device signals, cross-interface and cross-signal copying
6. Supports mutual copying between M.2 NVMe/SATA SSDs and common 2.5", 3.5" hard drives or SSDs
Each port can reach 7.2GB per minute, no slowdown, no system crash
The PCIe 1-1 SSD Copier of Shenzhen Yuanyiwa Technology Co., Ltd. is designed with a closed-system FPGA architecture, which can give full play to the multi-tasking processing performance and achieve a copying performance of 7.2GB per minute.
High-efficiency hot-swapping copying
Designed with a closed FPGA hardware architecture, each interface operates with an independent IC. After each round of copying, you only need to replace the new target disk to start the copying operation. There is no need to waste time waiting or restart the copier. You can directly plug and unplug, and it is not a modification of the computer (PC) software architecture.

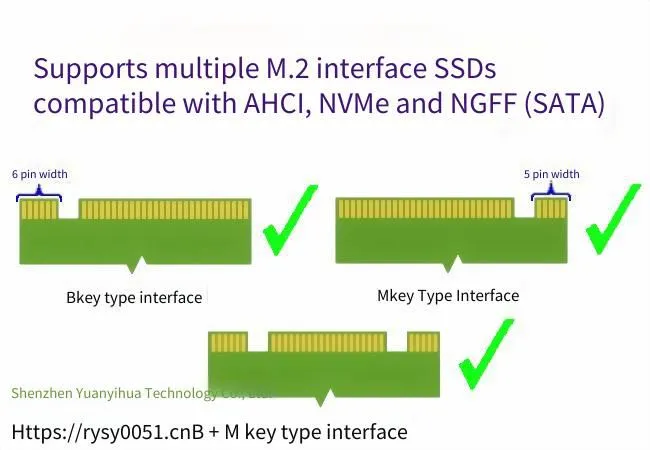

The M.2 interface has intelligent detection for mutual copying and is compatible with AHCI, NVMe, and NGFF (SATA)
The M.2 interface can automatically detect AHCI, NVMe, and NGFF (SATA) for mutual copying. Multiple M.2 SSDs such as AHCI, NVMe, and NGFF (SATA) can be copied to each other without adapters.
Cross-interface/signal copying
Supports mutual copying between M.2 (NVMe) SSDs and SATA, SATA2, SATA3 SSDs or hard drives (supports over 18TB). In addition to the comprehensive copying between M.2 (NVMe) and SATA, it can also be more flexible in terms of interfaces through various SATA adapter boards. It can be used for SSD hard drives, mSATA SSDs, SATA DOM cards, eSATA, iVDR, CFast, NGFF (SATA), IDE interface hard drives, etc., and can be directly connected for easy and convenient operation. It provides an excellent choice for users with various copying needs and is easy to use without complicated operation steps.
Traditional Chinese option operation interface (can freely switch between Chinese and English letters)
The traditional Chinese display screen is paired with four buttons for easy operation and convenient use. It has powerful functions and can meet the needs of various hard drive copying. You can freely set the display text to be in Chinese or English. (The factory default setting is Chinese subtitles)
Supports multiple copying modes
Supports four copying modes: System and data area copying (fast copying), effective formatted area copying, entire hard drive copying, and percentage copying, which can meet the needs of various hard drive or SSD copying tasks.
System and data area copying (fast copying): It can intelligently identify the data area and skip the blank area without copying, greatly saving the copying time.
Supports two erasing methods
The PCIe 1-1 SSD copier supports fast erasing or complete erasing.
Excellent compatibility
Supports copying of all current mainstream operating systems
Such as: Windows 10 / 8 / 7 / 95 / 98 / ME / 2000 / XP / Vista / Server (including other unlisted Windows versions are all supported) / Android / Apple Mac (HFS, HFS+, HFSX) / Unix (EXT2, 3, 4) / Linux (supports various versions on the market), CentOS, Debain ... etc., including other unlisted or unknown operating systems, are all supported.
Supports all file formats
Such as: FAT16/32/64 / exFAT / NTFS / HPFS / JFS / XFS / Mac (HFS, HFS+, HFSX) / Linux (EXT2, 3, 4) / Unix (EXT2, 3, 4) / GPT / MBR / LVM / Android, also including other unlisted or unknown file formats, all are supported.

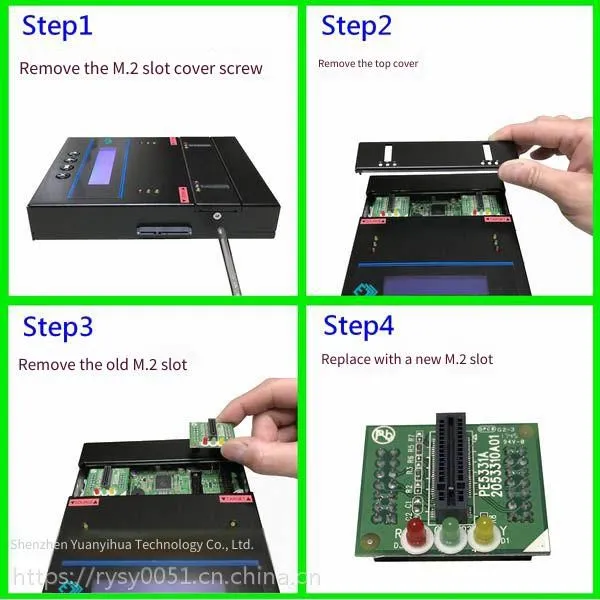

The M.2 slot has a quick-release design for easy replacement, and the host is lightweight and has an open design
The M.2 slot has a modular design with a simple quick-release design for easy replacement
The convenient quick-release modular design of the M.2 slot makes it easy to replace by yourself when the slot is worn out.
Supports copying of various hard drive system data
For example, hard drives for various purposes such as PC computers, monitoring systems, various video game systems, karaoke song-ordering machines, and various data backup or industrial control equipment systems... can all be copied.
The system software of the PCIE 1-1 M.2/SATA comprehensive hard drive copier can be continuously updated.
The copier system software can be updated to provide more comprehensive technical upgrades and support.
It features a lightweight, portable, and open design, allowing for plug-and-play copying with convenient operation.

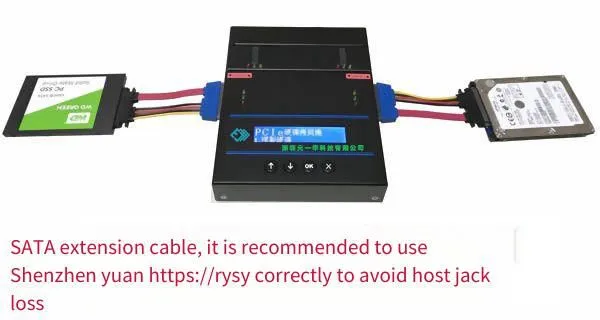

With its lightweight, portable, and open design, it is easy to carry and copy at any time. The convenient M.2 plug-and-play design enables direct copying by simply placing the M.2 SSD into the M.2 slot. The SATA interface can also be directly inserted into the SATA slot for copying. It also comes with a SATA extension cable, which can reduce the wear and tear of the machine's SATA slots through its use.
