Help Centermu Original Taiwan-made Sh2504 Portable High-speed Hard Drive Copier, One-to-three Offline Fast Copy, Supports Inter-copy Between Ngff and Msata, in Stock and Free Shipping
Related Products
-
mu Original Flash tf Card Copier From Taiwan, 1-to-47 Batch Fast Copy, Synchronous and Asynchronous, h2 Quality Detection, Formatting and Erasing, in Stock, Free Shipping via sf ExpressUS$ 2923.08 - 3384.62MOQ: 1 Piece -
mu Original Flash tf Card Copier From Taiwan, 1-to-39 Ports, Batch Fast Copy, Synchronous and Asynchronous, Quick h2 Detection, Erasing and Formatting, in Stock, Free Shipping by sf ExpressUS$ 2461.54 - 2923.08MOQ: 1 Piece
-
Original Flash tf Card Copier From Taiwan's mu Factory, 1-to-31 Ports for Batch Copying, h2 Fast Quality Inspection, Synchronous and Asynchronous Erasing and Formatting, in Stock, Free Shipping by sf ExpressUS$ 1969.23 - 2307.69MOQ: 1 Piece
-
mu Original Flash tf Card Copier From Taiwan Factory, 1-to-23 Ports, Batch Fast Copy, Supports Synchronous and Asynchronous Copy, tf Card h2 Detection, Formatting and Erasing, in Stock and Free ShippingUS$ 1692.31 - 2000MOQ: 1 Piece
-
Original Taiwan-made mu Sh2502 Portable One-to-one High-speed Hard Drive Copier Supporting Inter-copying Between Msata and Sata. in Stock, Free Shipping via sf ExpressUS$ 369.23 - 407.69MOQ: 1 Piece

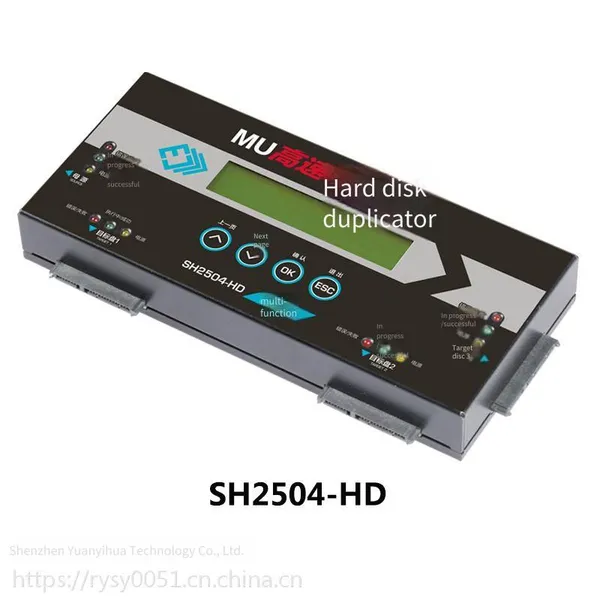

SH2504 High-speed Hard Disk Copier uses SATA interface for transmission. It can copy three SATA hard disks simultaneously, with a copying speed of up to 18GB/min. It supports copying through interfaces such as IDE, MSATA, NGFF, IVDR, and ESATA via adapters. It uses the bit-to-bit (bit to bit) copying mode to completely copy data at the underlying level, ensuring that the data on the target disk is exactly the same as that on the master disk. It is compatible with various operating systems such as Windows, Linux, and Mac, and supports partition formats such as FAT16/32, EXFAT, NTFS, EXT1/2/3/4. It is widely used in data backup, system cloning, image investigation, etc.
Product Introduction
Model: SH2504
Brand: MU
Specification: 1-to-3
Speed: 18GB/min
Interface: SATA
Expansion: Supports copying hard disks with interfaces such as IDE, ESATA, MSATA, NGFF, and IVDR via an adapter board.
Function: Purely copy the system and data at the underlying level, completely copy the source disk at a 1:1 ratio, and support two copying functions: fast copying and full-disk copying.
Advantages: It can copy hard disks with encrypted data, hidden data, hidden partitions, encrypted partitions, restored partitions, boot information, etc., without the need for cracking.
Destruction: It has a built-in data destruction function, which can perform underlying erasure of hard disk data. Confidential data can be destroyed, and the hard disk can be reused.

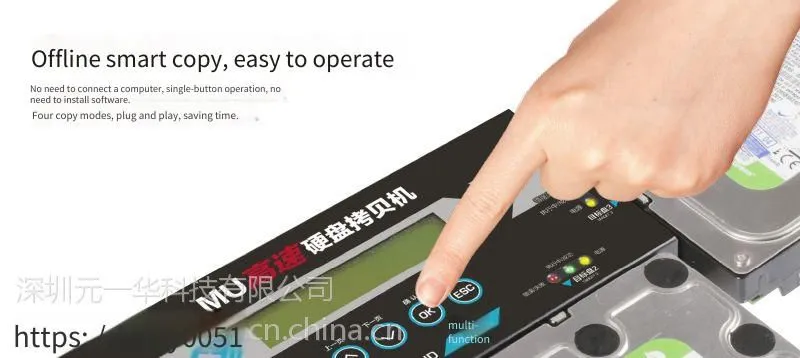

Operation: Stand-alone operation, no need for a computer, one-key copying.
Function Introduction
1. Stand-alone operation, simple to operate, one-key copying.
2. The copying speed is up to 18GB/min.
3. It uses the bit-to-bit copying principle to completely copy data and the system at the underlying level.
4. Supports copying of Windows, Linux, Mac, Android, or independently developed systems.
5. Supports copying of NTFS, FAT16, FAT32, EXFAT, EXT1/2/3/4, and unknown partitions.
6. Supports copying of partitions such as encrypted system data, hidden data, hidden partitions, restored partitions, and boot partitions.
7. Supports dual partition standard copying of MBR and GPT

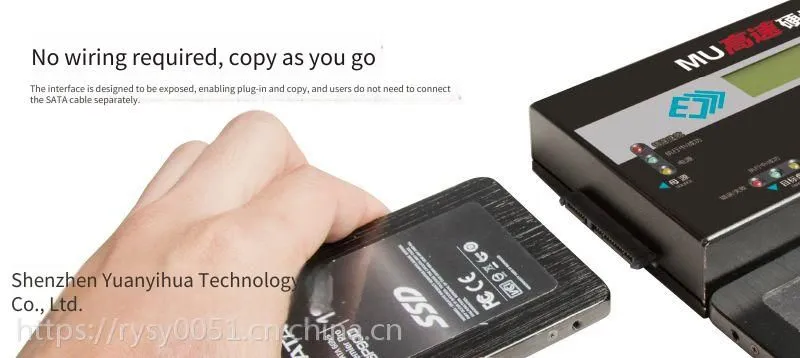

8. Standard 7+15Pin SATA interface, can copy hard drives with interfaces such as IDE/ESATA/MSATA/NGFF through the adapter board
9. Intelligent power-off design, automatically powers off after copying is completed to ensure operation safety
10. Small size, light weight, and easy to carry
Operation Steps

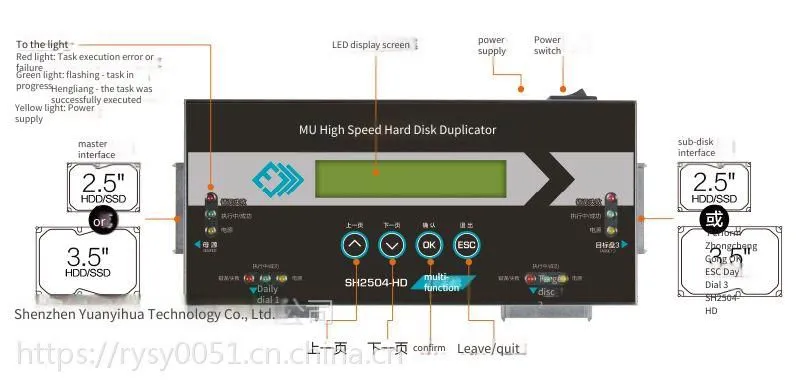

1. After connecting the power supply, connect the source disk to the left interface of the copier, and connect the target disk to the second, third, and fourth ports.
2. On the copier, directly select the copy function button to start copying.
3. After copying is completed, directly pull out the hard drive.
Common Questions
1. Will it damage my original master disk?
Answer: The master disk ports of the copier are all designed to be read-only, and will only read the data of the master disk without any write operations on the master disk, so the master disk will not be tampered with or damaged.
2. Do I need to format or clear the original data in the target disk?
Answer: As long as you confirm that the master source is correct, there is no need to format or clear the data in the target disk. You can directly perform copying on the copier, and the copier will automatically overwrite the original data in the target disk.
3. How do I know that the copying is completed?

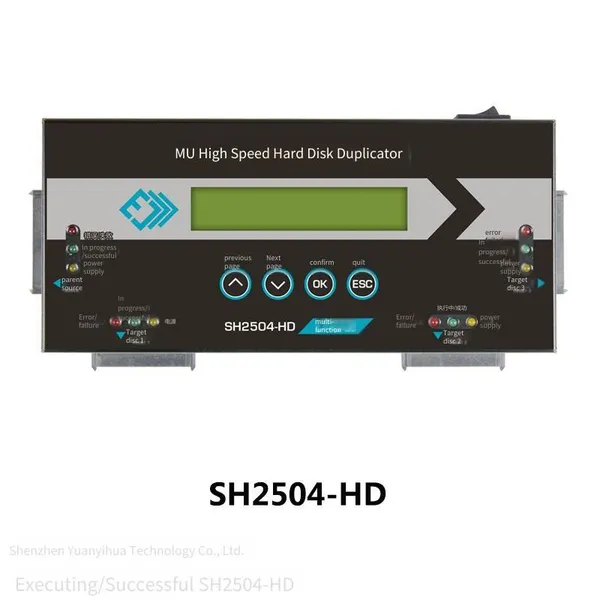

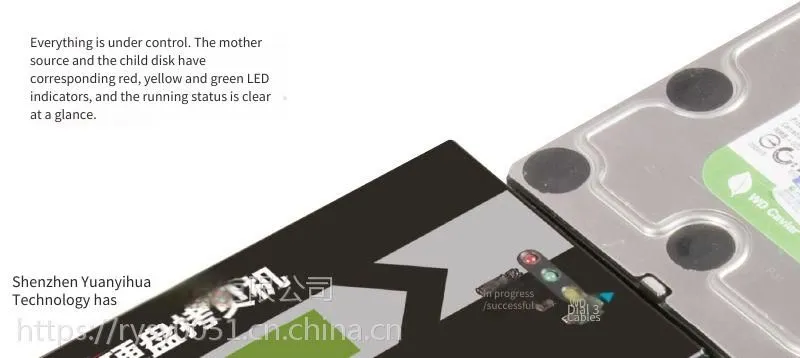

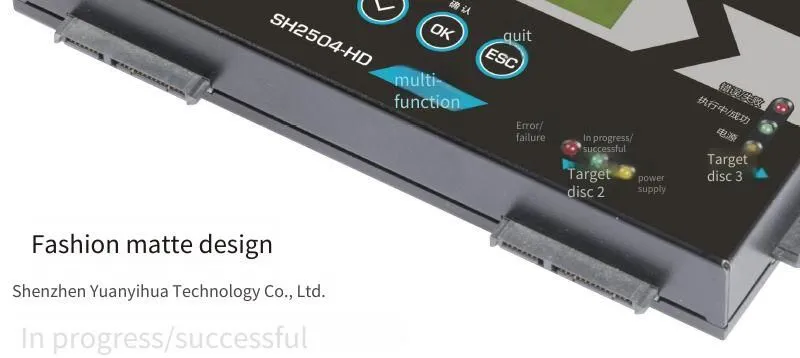

Answer: The copier is equipped with working indicator lights or there will be a "beep" prompt sound after copying is completed. A flashing green light indicates that it is working, a steady green light indicates that the work is completed, a red indicator light indicates an abnormal copy, and a yellow indicator light indicates the power-on state.
4. Can I copy when the master disk is small and the target disk is large?
Answer: It can be copied. If it is used on an industrial computer, it is recommended to use the same capacity as the master disk. Some old industrial computers cannot recognize large-capacity disks. If the target disk used is larger than the master disk, then after copying is completed, the capacity of the target disk will also become the same as that of the master disk. For example, if the master disk is 4GB and the target disk is 16GB, after copying is completed, the target disk will also become 4GB (the extra space is hidden, and the original capacity can be restored by performing a formatting on the copier once).
5. Can I copy data from a large source disk to a small target disk?
Answer: It depends on the specific situation of the source disk. If the data partitions on the source disk are all arranged at the front and the actual size of the data does not exceed the actual capacity of the target disk, the copy can be made. Otherwise, the copy cannot be made. (This method has certain requirements for the hard disk format. It is not recommended to use this method for operation.)
