Coconut Shell Processing Production Line Coconut Shell Fiber Sisal Fiber Extraction Machine EPC

Coconut Shell Processing Production Line Coconut Shell Fiber Sisal Fiber Extraction Machine EPC photo-1
Coconut Shell Processing Production Line Coconut Shell Fiber Sisal Fiber Extraction Machine EPC photo-2
Coconut Shell Processing Production Line Coconut Shell Fiber Sisal Fiber Extraction Machine EPC photo-3
Coconut Shell Processing Production Line Coconut Shell Fiber Sisal Fiber Extraction Machine EPC photo-4
Coconut Shell Processing Production Line Coconut Shell Fiber Sisal Fiber Extraction Machine EPC photo-5

Product Spotlights

1.Can process palm fruit bunches or coconut shells into palm silk. 2. Efficient and labor-saving 3.Product size and output can be customized 4. Customizable complete coconut shell fiber production line
US$ 9800 1 - 4 Set
US$ 9700 ≥5 Set
Key Specifications
Get Latest Price
Type:
Other
Warranty:
1 year
Voltage:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
15 days
Type Other
Warranty 1 year
Voltage Other
Power Other
After-sales Service On site installation or video guidance
Customized Customized
core components Engine, Motor
application separate coir fiber and peat from coconut husk
dimension(l*w*h) 3700*2200*2700 mm /customized
power(w) 45+55 KW
voltage 380V(customized)
Capacity 2000 pcs/hour
Application coconut,palm,hemp,jute,bamboo
Machine Weight 4500 kg
features High-effect and easy to operate
Product Name Sisal Palm Fiber Extraction Making Machines
Transport Package container
Trademark KUNTENG
Origin China

Product Description



Coconut Fiber Making Defibering Machine is mainly extract fiber from coconut husk, oil palm, bamboo etc. There is currently a large market for processed coconut husk and fiber is used in mattresses. Coconut peat is used as fertilizer.


The Main Parameters of Coconut Fiber Making Defibering Machine:

Coconut Fiber Making Defibering Extracting Equipment is divided into two types.Double drum and single drum. The double drum is used to process relatively hard materials, such as coconut husk etc. The single-drum can process oil-pressed palm fruit, banana leaves, bamboo, etc.

Details show about Source Manufacturer Coconut Shell Processing Line Fiber Extract Machine/Packing Press Machine/Dehydrator ,you can choose the one suit you the best,and we can also customize it for you :

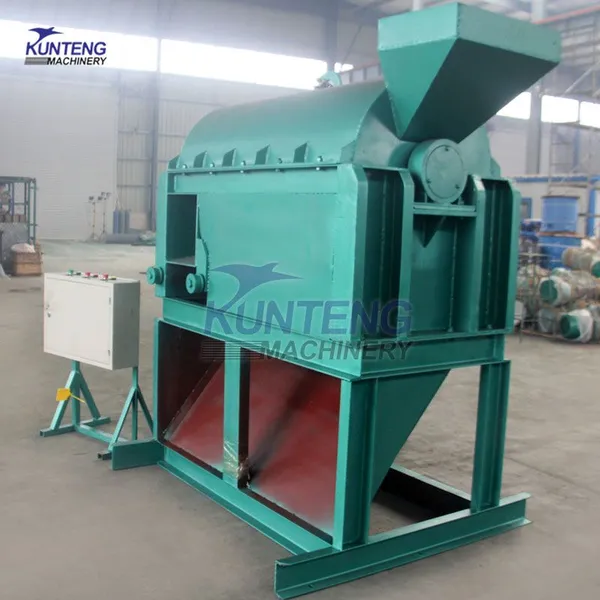

Single Drum Coconut Fiber Making Defibering Machine:

Model Power(KW) Capacity(pcs/h) Weight(kg) Dimension(mm)
KS-1 37 1000 2300 2100*2200*1500
KS-1 45 1200 2400 2100*2200*1500
KS-1 55 1500 2400 2100*2200*1500
KS-1Z 75 2000 3300 3200*2200*1500
KS-1Z 110 3000 3600 3200*2200*1500
KS-1Z 160 4000 3800 3200*2200*1500

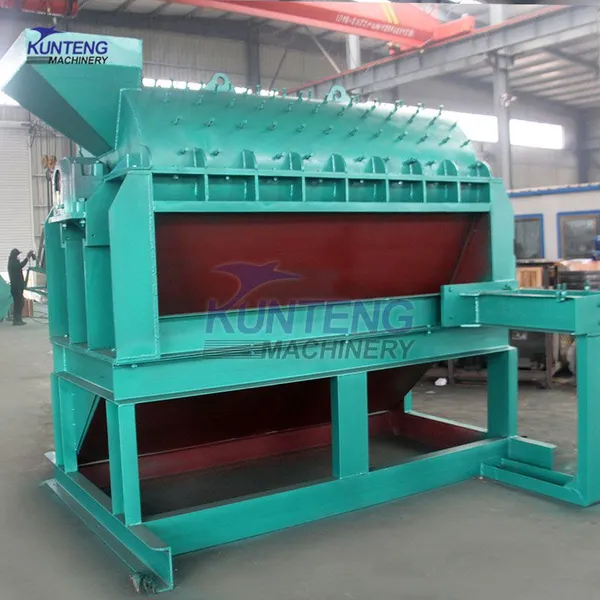

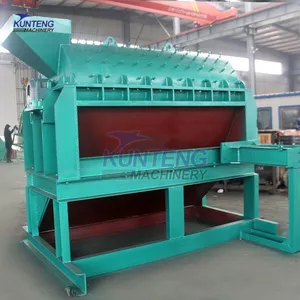

Double Drum Coconut Fiber Making Defibering Machine:

Model Power(KW) Capacity(pcs/h) Weight(kg) Dimension(mm)
KS-2 45+55 2000 4500 3700*2200*2700
KS-2 55+75 3000 4800 3700*2200*2700
KS-2 75+90 4000 5000 3700*2200*2700



Production Line

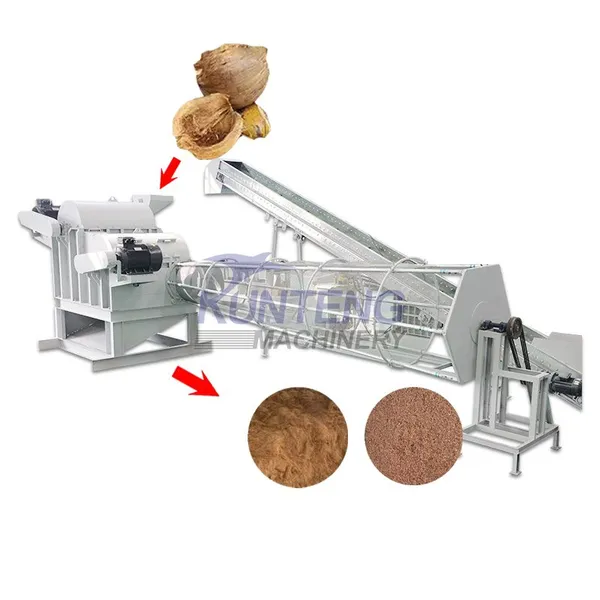

 The whole processing line about coconut shell:
1.Coconut Fiber Making Defibering Machine
Mainly seperate coconut fiber and coconut peat.
2.Screen
The fiber blowing to screen and through screen forward to discharge port, it can collect pure fiber.
3.Baling machine
The coconut fiber can make bale and loading into container.
4.Coconut peat washing machine.
Reduce salt and EC inside.
5.Dewater machine.
Reduce moisture inside coconut peat around 50-60%
6.Coconut peat drying machine.
Using hot air dry coconut peat and get final product with moisture 12-15%.
7.Coconut peat block making machine.
Per block weight is customized, normally the block weight is 5kg,In order to facilitate transport.





Customer Visit

 2023 Indonesian and other customers visit our factory and sign the purchase contract for the coconut husk processing line:

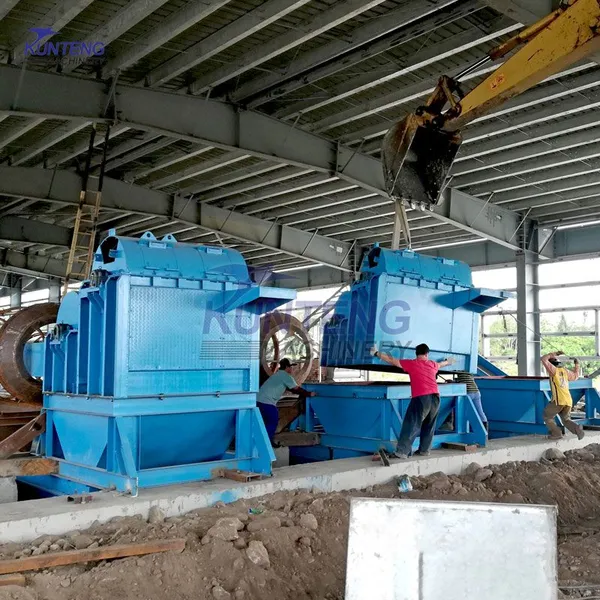

Customer Site

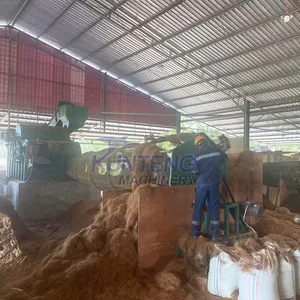

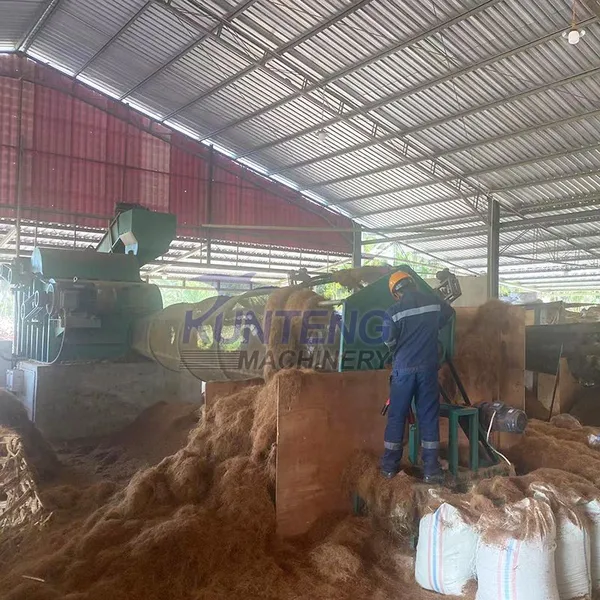

 This is our Malaysian customer site for Coconut husk processing line:





Packaging & Shipping

 The machines for whole production line will be loaded into the 20/40 GP container directly.

Company Information

1.Founded in 1999, KUNTENG Machinery is a technology-based enterprise integrating R&D, manufacturing, sales and after-sales.

2.We have our own R&D(research and development)team. We have ability design the factory building, circuit direction, and machine assemble for the entire project.

3.The equipment is strictly controlled by the quality inspection department before loading to the container to ensure that each set of equipment work smoothly.

4.The company's products have passed more than 100 national patents, and passed passed ISO, CE quality system certification.
