Help CenterNon-Oriented 35W250 0.35mm Silicon Steel Sheet Coil ASTM JIS Motor Applications
Product Spotlights
Related Products
-
50W1300 NOES 0.50mm Electrical Steel Coil IEC GB/T High Permeability Motor SheetUS$ 0.55 - 1.25MOQ: 100 Kilograms -
65W600 Non Grain Silicon Steel 0.65mm Sheet Strip ASTM IEC Motor and Generator LaminationsUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
35W440 Electrical Steel 0.35mm NOES Coil C6 Coating Transformer & Appliance Motor SheetsUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
50W800 Non-Oriented Silicon Steel 0.50mm Sheet IEC GB/T ASTM Motor Stator LaminationsUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
Grain Oriented Electrical Steel CRGO 0.23mm 0.27mm 0.30mm B23R075 Transformer CoreUS$ 15 - 35MOQ: 100 Kilograms
Versatile Steel for Motor Manufacturing
Produced according to ASTM and JIS standards, 35W250 NOES provides reliable magnetic performance and efficient energy utilization. It is widely used in motor cores, generators, and electrical equipment.
Key Specifications (Non-Oriented Silicon Steel Coil)
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM A677, IEC 60404-8-4, GB/T 2521 |
Others on request |
Grades |
50W800, 50W600, 35W440, 65W1300 |
– |
Thickness |
0.35 mm – 0.65 mm |
– |
Width |
600 mm – 1250 mm |
Slit edge available |
Core Loss (50Hz) |
P1.5: 3.0 – 6.5 W/kg |
Grade dependent |
Magnetic Induction B50 |
≥1.65 – 1.75 T |
– |
Coating |
C-3 / C-5 / C-6 insulation coating |
– |
Density |
7.75 – 7.80 g/cm³ |
– |
Testing |
Epstein frame, tensile, hardness |
Mill cert provided |
Packaging |
Rust-proof paper + steel strapping + wooden pallet |
Seaworthy, ISPM 15 |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.

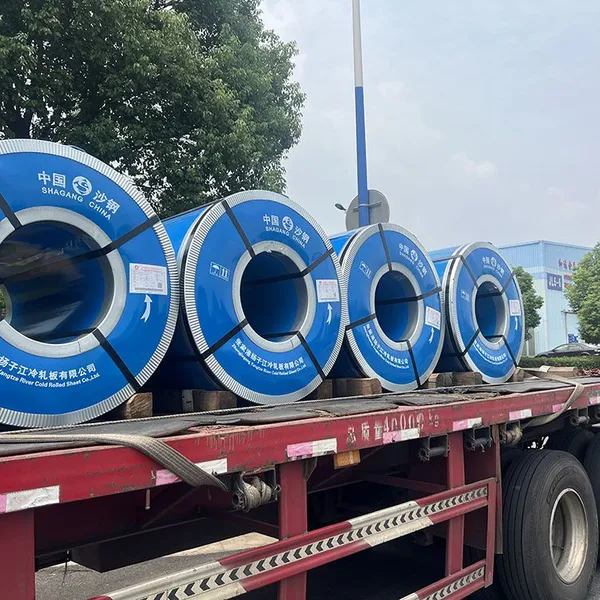

Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
