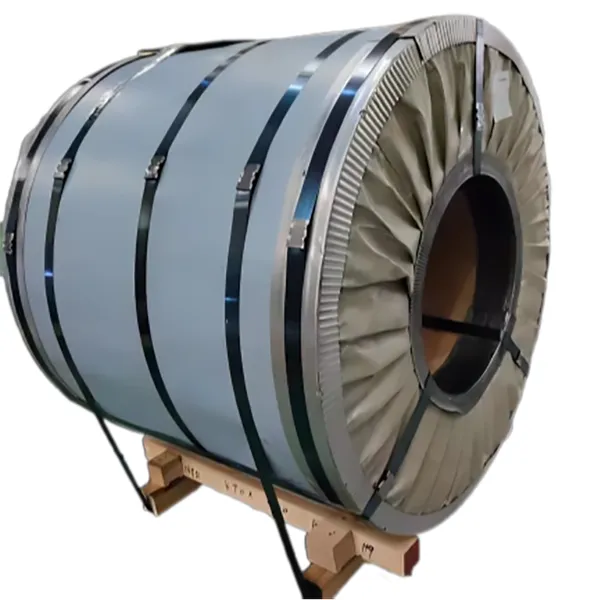

Help Center35W440 Non-Oriented Electrical Steel 0.35mm C6 Coating Sheet EV Motor and Appliance Use
Product Spotlights
Related Products
-
50W600 Silicon Steel Coil 0.50mm IEC 60404-8-4 GB/T Motor Rotor Stator LaminationsUS$ 0.55 - 1.25MOQ: 100 Kilograms -
35W250 NOES 0.35mm Electrical Steel Sheet ASTM JIS Motor Laminations and TransformersUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
Non Grain 50W800 0.50mm Silicon Steel Coil IEC GB/T EV and Industrial Motor ApplicationsUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
65W1300 Electrical Steel Strip 0.65mm Non-Oriented ASTM JIS Generator Stator LaminationsUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
35W440 NOES 0.35mm C5 Coated Sheet Motor Core Strip Fan Compressor LaminationsUS$ 0.55 - 1.25MOQ: 100 Kilograms
Durable Steel for EV Motors and Appliances
35W440 electrical steel ensures low hysteresis and eddy current loss, improving energy efficiency in EV motor stators and appliance cores. The C6 coating provides excellent insulation and mechanical durability.
Key Specifications (Non-Oriented Silicon Steel Coil)
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM A677, IEC 60404-8-4, GB/T 2521 |
Others on request |
Grades |
50W800, 50W600, 35W440, 65W1300 |
– |
Thickness |
0.35 mm – 0.65 mm |
– |
Width |
600 mm – 1250 mm |
Slit edge available |
Core Loss (50Hz) |
P1.5: 3.0 – 6.5 W/kg |
Grade dependent |
Magnetic Induction B50 |
≥1.65 – 1.75 T |
– |
Coating |
C-3 / C-5 / C-6 insulation coating |
– |
Density |
7.75 – 7.80 g/cm³ |
– |
Testing |
Epstein frame, tensile, hardness |
Mill cert provided |
Packaging |
Rust-proof paper + steel strapping + wooden pallet |
Seaworthy, ISPM 15 |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
