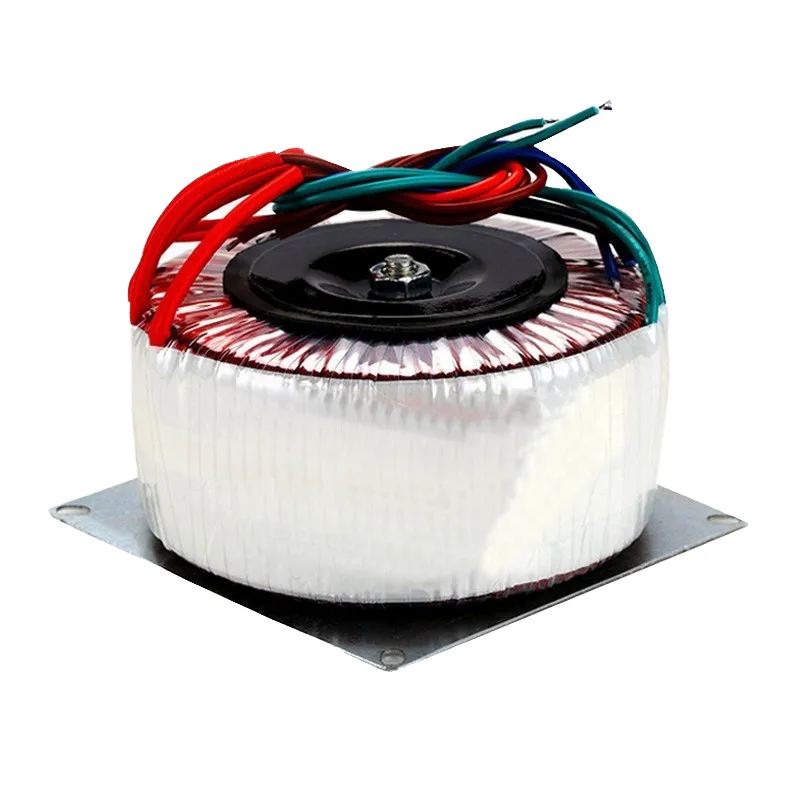

As a dedicated manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing high-quality, customized toroidal transformers. Our Factory Direct Customized Single Phase Toroidal Transformer is engineered to meet precise client requirements, offering superior performance, reliability, and a comprehensive 2-year warranty. We combine advanced manufacturing under our ISO9001-certified system with direct customer collaboration to deliver transformers that perfectly integrate into your applications, ensuring optimal power conversion and stability.
This transformer is designed for applications demanding clean, stable, and efficient power conversion with minimal electromagnetic interference. The toroidal (ring-shaped) core design inherently provides several advantages over traditional laminated transformers.
- Core Design & Efficiency: The toroidal core construction offers a shorter magnetic path and higher magnetic efficiency. This results in lower core losses, reduced weight, and a more compact form factor compared to standard E-I core transformers.
- Low Noise & EMI: The continuous, symmetrical winding on the toroidal core significantly reduces stray magnetic fields and electromagnetic interference (EMI). This makes it an ideal choice for sensitive audio equipment, medical instrumentation, and precision industrial control systems where electrical noise is a critical concern.
- High Reliability & Thermal Performance: The efficient design allows for better heat dissipation. Combined with high-grade insulation materials (typically Class B or higher), the transformer operates at lower temperatures, enhancing long-term reliability and lifespan.
- Customization Capabilities: Being factory-direct, we offer extensive customization. Clients can specify input/output voltages, power ratings, mounting options, and lead configurations to match their exact project needs.
- Integrated MTR (Mounting Ring): Each unit includes a robust mounting ring (MTR), simplifying installation and securing the transformer firmly within enclosures or chassis, preventing movement and vibration.
The following table outlines common customizable technical parameters available for this transformer series. Specific values are determined based on your project specifications.
| Parameter | Typical Range / Options | Notes |
|---|---|---|
| Power Rating (VA) | 50VA to 5000VA | Standard and high-power models available |
| Primary (Input) Voltage | 110V, 220V, 240V, or Custom | Single-phase AC input |
| Secondary (Output) Voltage | Customizable (e.g., 12V, 24V, Dual Outputs) | Precisely wound to your required voltage(s) |
| Regulation & Efficiency | High efficiency, low voltage regulation | Provides stable output under varying loads |
| Insulation Class | Class B (130°C) or Higher (Optional) | Ensures thermal safety and durability |
| Mounting | Standard MTR (Mounting Ring) Included | Easy and secure installation |
The benefits of choosing our customized toroidal transformer extend beyond its technical specifications:
- Direct Cost Advantage: Purchasing factory-direct eliminates intermediary markups, providing you with a cost-effective solution for high-quality components.
- Design Flexibility: Our customization process allows your electrical design to be optimized without being constrained by off-the-shelf transformer limitations.
- Quality Assurance: Every transformer is manufactured under our ISO9001 quality management system, ensuring consistent processes, material control, and final product testing.
- Long-Term Support: The included 2-year warranty demonstrates our confidence in product durability and provides you with assurance against manufacturing defects.
- Global Logistics: With major shipment ports like Shanghai, Tianjin, Guangzhou, and Ningbo, we efficiently serve our global client base across North America, South America, Europe, Asia, Africa, and Oceania.
Jinhua Dika Electrical Equipment Co., Ltd. operates with a team of 11-50 skilled professionals and generates an annual export value between US$1 Million and US$1.5 Million, reflecting our established presence and reliability in the international market. Our ISO9001 certification underpins a systematic approach to quality that is applied to every custom transformer order. This robust operational framework, combined with our direct manufacturing model and comprehensive warranty, ensures you receive a product that is not only tailored to your technical needs but is also backed by a trustworthy and experienced supplier. For a power component that offers quiet operation, high efficiency, reliable performance, and perfect fit for your application, contact us to discuss your custom toroidal transformer requirements.
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of a toroidal transformer over a standard laminated (E-I) transformer?
A: Toroidal transformers offer lower electromagnetic interference (EMI), higher efficiency due to a shorter magnetic path, reduced weight and size, and typically lower operating noise. They are preferred in applications sensitive to electrical noise, such as audio and medical equipment.
Q2: How customizable is this transformer?
A: We offer extensive customization. You can specify the input voltage (e.g., 110V, 220V), output voltage(s) and configuration, power rating (VA), insulation class, and lead type/length. We work directly with you to finalize the specifications.
Q3: What does "MTR" mean, and is it included?
A: MTR stands for "Mounting Ring." It is a metal ring used to securely fasten the toroidal transformer to a chassis or panel. Yes, a standard mounting ring is included with every transformer, facilitating easy and secure installation.
Q4: What is the typical power range available?
A: Our factory can produce single-phase toroidal transformers with power ratings ranging from smaller units around 50VA up to higher-power models of 5000VA. The exact range for your project can be confirmed during the quotation process.
Q5: What is the warranty coverage?
A: We provide a 2-year manufacturer warranty against defects in materials and workmanship. The warranty terms are provided with the product documentation.
Q6: Are these transformers certified for safety standards like CE or UL?
A: Our production is governed by an ISO9001 Quality Management System, which ensures controlled processes. Specific safety certifications like CE or UL are optional and can be arranged upon request for applicable markets. Please inquire if you require such certifications.
Q7: What are the main application areas for this transformer?
A: Common applications include high-quality audio amplifiers and equipment, medical devices and instrumentation, industrial control systems, laboratory equipment, and other electronics where low-noise, stable, and efficient power conversion is essential.
Q8: How does the factory-direct model benefit me?
A: Buying directly from the manufacturer typically offers better pricing by avoiding distributor margins. It also enables direct technical communication for customization, faster response to inquiries, and clearer accountability for quality and warranty support.
