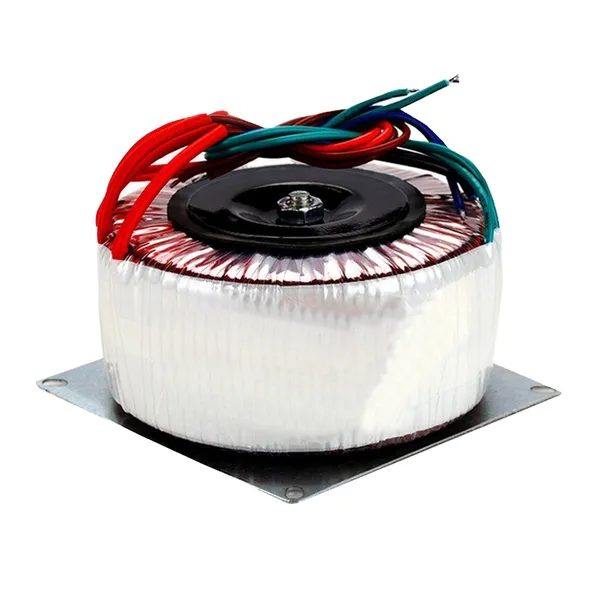

Help CenterPrecision Wound Custom Toroidal Transformer 7.5kVA With Low Leakage Inductance
Product Spotlights
Related Products
-
Customized 10kVA Single Phase Toroidal Transformer 220V to 480V for Industrial UseUS$ 15 - 20MOQ: 1 Piece -
Single Phase Toroidal Power Transformer Customized for CNC Machine 5kVA 230V InputUS$ 15 - 20MOQ: 1 Piece
-
Customized Toroidal Power Transformer for Medical Device Power Supply With Enhanced Safety StandardsUS$ 15 - 20MOQ: 1 Piece
-
Customized Toroidal Transformer With Comprehensive Performance Test Report SuppliedUS$ 15 - 20MOQ: 1 Piece
-
Chinese Factory Customized Single Phase Toroidal Transformer 3kVA 110V Input for Laboratory EquipmentUS$ 15 - 20MOQ: 1 Piece
As a dedicated manufacturer with ISO9001 certified processes, Jinhua Dika Electrical Equipment Co., Ltd. specializes in engineering high-performance magnetic components for demanding global applications. Our Precision Wound Custom Toroidal Transformer, particularly the 7.5kVA model with exceptionally low leakage inductance, represents our commitment to quality and technical excellence. Designed for applications where electrical noise, efficiency, and form factor are critical, this transformer offers a superior alternative to conventional laminated types, providing cleaner power and a more compact design.
This transformer is engineered for professionals who cannot compromise on performance. Its core benefits include:
- Exceptional Signal Integrity: The inherently low leakage inductance minimizes electromagnetic interference (EMI) and reduces voltage spikes, making it ideal for sensitive audio equipment, medical devices, and precision measurement instrumentation.
- High Efficiency and Cool Operation: The toroidal core design offers a shorter magnetic path and lower core losses compared to EI laminations, resulting in higher efficiency and cooler operation, which extends component lifespan.
- Compact and Space-Saving: Toroidal transformers have a higher power-to-weight and power-to-volume ratio. This 7.5kVA unit occupies less space and is lighter than an equivalent rated laminated transformer, facilitating easier integration into equipment.
- Reduced Mechanical Hum: The continuous grain-oriented steel core and precision winding technique significantly reduce the audible 50/60 Hz hum associated with traditional transformers, a crucial factor for audio and quiet environments.
- Customization Ready: While we offer this standard 7.5kVA low-inductance model, our manufacturing capability allows for extensive customization. We can tailor parameters to meet your specific voltage, current, mounting, and shielding requirements.
Technical Specifications & Parameters:
The following table outlines the key electrical and physical characteristics of our standard 7.5kVA Low Leakage Inductance Toroidal Transformer. All parameters are typical values and can be adjusted per custom order.
| Parameter | Specification | Notes |
|---|---|---|
| Rated Power | 7.5 kVA | Continuous duty |
| Primary Voltage | 110V / 220V / 230V | Standard options |
| Secondary Voltage | Customizable | Single or multiple taps |
| Frequency | 50/60 Hz | Dual-rated |
| Leakage Inductance | < 1% of nominal inductance | Exceptionally low value |
| Insulation Class | Class B (130°C) or higher | Available upon request |
| Mounting | Standard bolt-through-center | Custom brackets optional |
Our manufacturing process ensures each transformer is precision wound using automated machinery for consistency, followed by meticulous hand-finishing and rigorous testing. Every unit undergoes electrical tests for turns ratio, insulation resistance, polarity, and no-load current to guarantee performance matches specification.
With an annual export value ranging between US$1 Million and US$1.5 Million and a presence in diverse markets from North America and Western Europe to Southeast Asia and Africa, Jinhua Dika has proven its reliability as a global supplier. Our ISO9001 certification is not just a badge; it's the framework for our consistent quality control from raw material inspection to final shipment. This 7.5kVA Precision Wound Toroidal Transformer embodies our technical capability. It delivers the low noise, high efficiency, and compact design that advanced electronic systems demand. Contact us today to discuss how this transformer can be customized to power your next project with precision and reliability.
Frequently Asked Questions (FAQ)
-
Q: What is the main advantage of low leakage inductance in a transformer?
A: Low leakage inductance drastically reduces electromagnetic interference (EMI) and minimizes voltage spikes during switching. This results in cleaner power output, which is essential for the stable operation of sensitive circuits in audio amplifiers, medical equipment, and laboratory instruments. -
Q: Can you provide transformers with specific secondary voltage and current ratings not listed?
A: Absolutely. As a manufacturer specializing in custom toroidal transformers, we regularly produce units with non-standard secondary voltages, multiple output taps, and specific current ratings. Please provide your detailed requirements for a quotation. -
Q: How does the toroidal shape contribute to better performance?
A: The toroidal (doughnut) shape provides a continuous, symmetrical magnetic path. This design leads to higher magnetic efficiency, lower stray magnetic fields, reduced core losses, less mechanical vibration (hum), and a more compact physical size compared to traditional laminated (EI) cores. -
Q: What is the typical lead time for a custom order of this 7.5kVA model?
A: Lead time depends on the complexity of the customization. For standard modifications, production typically takes 4-6 weeks after order confirmation. We provide accurate timelines during the quotation process. -
Q: Do these transformers come with any protective encapsulation or shielding?
A: Standard units are supplied with a protective outer wrap (tape or sleeving). Optional epoxy resin potting for moisture and vibration resistance, as well as electrostatic/magnetic shielding cans, are available to meet specific environmental or EMC requirements. -
Q: Are your products suitable for international markets with different voltage standards?
A: Yes. Our transformers are designed for global use. We commonly configure primary windings for 110V, 115V, 120V, 220V, 230V, and 240V systems at 50 or 60 Hz, and we can accommodate virtually any standard or combination required. -
Q: What testing is performed on each transformer before shipment?
A: Each unit undergoes a comprehensive suite of tests, including but not limited to: turns ratio verification, insulation resistance (Hi-Pot) test, no-load current and power loss measurement, polarity check, and visual inspection for winding integrity and finish. -
Q: How should I mount and install a toroidal transformer?
A: Toroidal transformers are typically mounted using a bolt through the central hole, secured with a washer and nut. It is crucial to use the correct size hardware and torque to avoid damaging the core. We can supply mounting kits or custom brackets if needed. Ensure adequate ventilation around the transformer.
