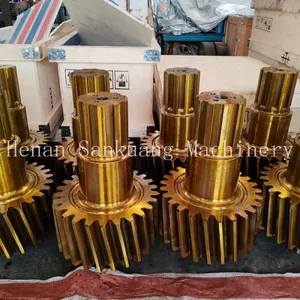

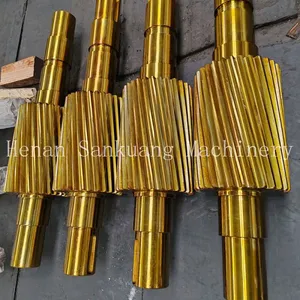

Help CenterCustom Transmission Gear Shafts, Spline or Keyway, for OEM Replacement
Product Spotlights
Related Products
-
Transmission Shafts With 18-Month Warranty and Technical Support PackageNegotiableMOQ: 1 Piece -
Precision Forged Alloy Steel Gear Shaft for Industrial Gearbox ApplicationsNegotiableMOQ: 1 Piece
-
Transmission Gear Shafts Compatible With Automotive Drivetrain RebuildingNegotiableMOQ: 1 Piece
-
Gearbox Gear Shafts With Mill Test Report for Material TraceabilityNegotiableMOQ: 1 Piece
-
Custom Gear Shafts for Packaging and Conveying Equipment With Technical SupportNegotiableMOQ: 1 Piece
As a leading manufacturer with over a decade of expertise in precision machining, Henan San Kuang Machinery Technology is dedicated to providing high-quality, custom-engineered transmission gear shafts. We understand that downtime is costly, which is why we specialize in producing reliable spline and keyway shafts designed for seamless OEM replacement. Our commitment to precision and durability ensures your machinery operates at peak performance.
Our Custom Gear Shaft Solutions:
- Tailored Design: We don't believe in one-size-fits-all. Every shaft is manufactured to your exact specifications, whether based on provided drawings, samples, or specific performance parameters.
- Material Expertise: We select from a range of high-grade alloy and carbon steels, heat-treated to achieve the optimal balance of strength, wear resistance, and toughness for your application.
- Precision Machining: Utilizing advanced CNC turning, milling, and grinding equipment, we achieve tight tolerances and superior surface finishes critical for smooth power transmission and long service life.
- Versatile Connection Types: We expertly produce both splined and keyway shafts. Spline shafts offer higher torque capacity and better alignment, while keyway shafts provide a simple and cost-effective solution for many applications.
Technical Specifications & Advantages:
Our manufacturing process is built on a foundation of quality and consistency. Below is an overview of our standard capabilities and the key benefits we deliver.
| Parameter | Capability / Specification | Client Benefit |
|---|---|---|
| Primary Materials | 4140, 4340 Alloy Steel; 1045, 4145 Carbon Steel; Custom alloys available | Enhanced strength, fatigue resistance, and suitability for high-stress environments. |
| Heat Treatment | Induction Hardening, Carburizing, Nitriding, Tempering | Customized surface and core hardness for optimal wear and impact resistance. |
| Diameter Range | From 10 mm to 500 mm (custom sizes beyond available) | Accommodates a wide spectrum of machinery, from compact units to large industrial equipment. |
| Length Capacity | Up to 3000 mm | Capable of producing long shafts for conveyors, pumps, and heavy-duty gearboxes. |
| Spline Types | Involute Splines (Flat Root, Fillet Root), Straight Splines, Serrations | Precise torque transmission and reduced stress concentration. |
| Keyway Standards | ANSI B17.1, DIN 6885, JIS B 1301, or per drawing | Ensures perfect fit and interchangeability with standard components. |
| Surface Finish | Ra 0.4 μm to Ra 3.2 μm (or as specified) | Minimizes friction, reduces wear on mating parts, and improves efficiency. |
| Dimensional Tolerance | IT6 to IT9 (Tighter tolerances available upon request) | Guarantees precise assembly, reduces vibration, and extends overall system life. |
Why Partner with San Kuang for Your Gear Shaft Needs?
- OEM-Grade Quality: Our shafts are engineered to match or exceed original equipment specifications, ensuring a perfect fit and function for replacement applications.
- Reduced Lead Times: With a modern 10,000-30,000 sqm facility and streamlined processes, we offer competitive production cycles to minimize your downtime.
- End-to-End Service: From initial design consultation and material selection to precision machining, quality inspection, and packaging, we manage the entire process.
- Rigorous Quality Control: Every batch undergoes stringent checks using CMMs, profilometers, and hardness testers to verify dimensions, finish, and material properties.
- Global Logistics Support: We efficiently ship from major ports like Shanghai, Qingdao, and Tianjin, serving a global clientele across North America, Europe, Southeast Asia, and beyond.
Trust in a supplier backed by a robust quality management system. Henan San Kuang Machinery Technology is certified to ISO 9001 for quality management and IATF 16949 (implied from ISO/TS 16969 reference) for automotive quality standards, ensuring systematic and reliable production. Supported by an annual export value ranging from US$2.5 to US$5 million and a skilled workforce, we have the capacity and expertise to be your long-term, dependable partner for critical transmission components. Contact us today with your drawings or requirements to receive a detailed quotation and experience the San Kuang difference in precision and partnership.
Frequently Asked Questions (FAQ)
Q1: What information do you need to provide a quote for a custom gear shaft?
A: To provide an accurate quote, we typically require your technical drawing (PDF, DWG, STEP), material specification, heat treatment requirements, quantity, and any specific surface finish or certification needs. If a drawing is unavailable, samples or detailed dimensional and performance specifications are also acceptable.
Q2: What is the difference between a spline shaft and a keyway shaft, and which should I choose?
A: Spline shafts have a series of ridges or teeth that mesh with a grooved mating part, allowing for torque transmission and axial movement. They generally handle higher torque and provide better concentricity. Keyway shafts use a single key seated in a slot to prevent rotation. The choice depends on your torque requirements, need for axial sliding, cost considerations, and existing assembly design.
Q3: Can you manufacture shafts according to my existing OEM part number?
A: Yes, we frequently produce direct replacement parts. Providing the OEM part number, along with a sample or detailed specifications, allows us to reverse-engineer and manufacture a shaft that meets the original form, fit, and function.
Q4: What heat treatment processes do you offer, and how do I select one?
A> We offer processes like induction hardening (for localized surface hardness), carburizing (for a hard case and tough core), nitriding (for high surface hardness with minimal distortion), and tempering (for stress relief). The selection depends on the material, required hardness depth, part geometry, and operational stresses. Our engineers can provide recommendations.
Q5: What is your typical lead time for a custom order?
A: Lead time varies based on order complexity and quantity. For standard materials and processes, prototype or small-batch orders can often be completed within 3-5 weeks. Larger production runs are scheduled efficiently in our facility. We provide a firm timeline upon order confirmation.
Q6: Do you offer any surface coatings or treatments for corrosion protection?
A: Yes, we offer various surface treatments including black oxide (for appearance and mild corrosion resistance), phosphate coating (for corrosion resistance and paint adhesion), and zinc plating (for enhanced corrosion protection). The best option depends on your operating environment and performance requirements.
Q7: How do you ensure the quality and precision of the finished shafts?
A: Quality is integral to our process. We employ First Article Inspection (FAI), in-process checks, and final inspection using calibrated equipment like Coordinate Measuring Machines (CMM) for dimensional accuracy, profilometers for surface finish, and Rockwell testers for hardness. Inspection reports can be provided.
Q8: What are your packaging and shipping terms?
A: We use sturdy, export-standard packaging like wooden crates or plywood boxes with internal cushioning to prevent damage during transit. We can ship FOB, CIF, or EXW based on your preference and arrange shipment from major Chinese ports to destinations worldwide.
