Home > Industrial Equipment & Components > Shaft > Metal Shaft > Custom Gear Shafts for Packaging and Conveying Equipment With Technical Support

Custom Gear Shafts for Packaging and Conveying Equipment With Technical Support

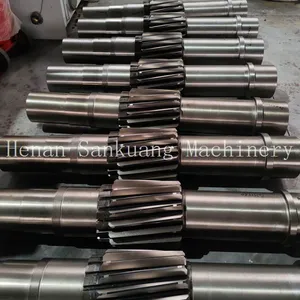

Custom Gear Shafts for Packaging and Conveying Equipment With Technical Support thumbnail-2

Custom Gear Shafts for Packaging and Conveying Equipment With Technical Support thumbnail-3

Custom Gear Shafts for Packaging and Conveying Equipment With Technical Support thumbnail-4

Custom Gear Shafts for Packaging and Conveying Equipment With Technical Support thumbnail-5

Custom Gear Shafts for Packaging and Conveying Equipment With Technical Support photo-1

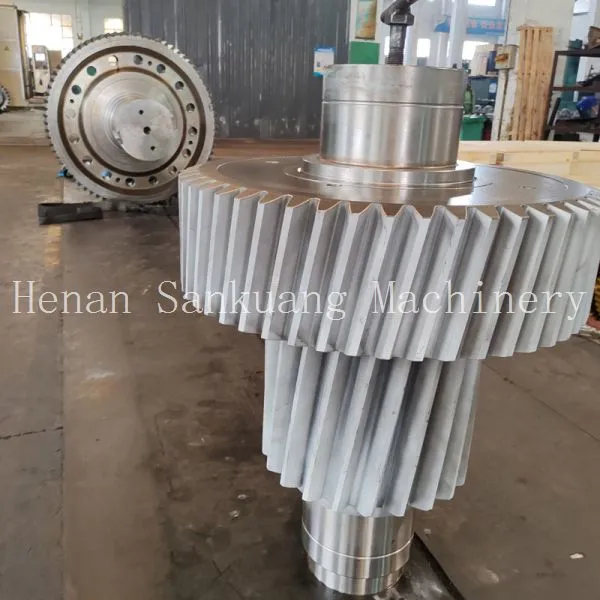

Custom Gear Shafts for Packaging and Conveying Equipment With Technical Support photo-2

Custom Gear Shafts for Packaging and Conveying Equipment With Technical Support photo-3

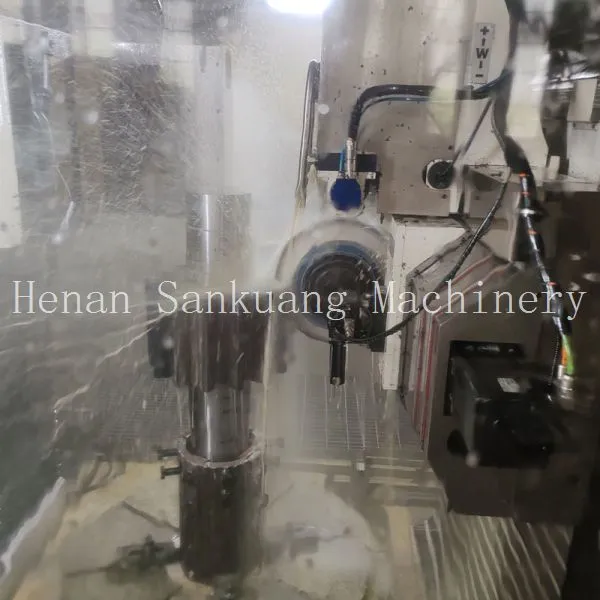

Custom Gear Shafts for Packaging and Conveying Equipment With Technical Support photo-4

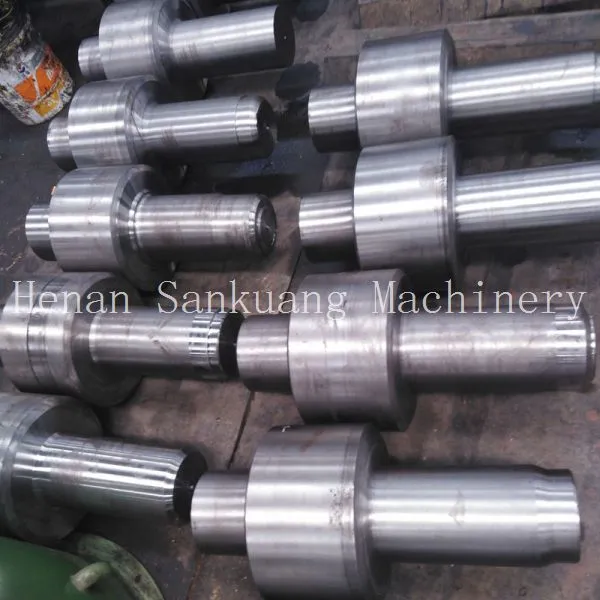

Custom Gear Shafts for Packaging and Conveying Equipment With Technical Support photo-5

Product Spotlights

Precision-customized gear shafts designed specifically for packaging and conveying equipment, featuring expert technical support from design to installation. Manufactured with high-grade materials and advanced heat treatment for enhanced durability and reduced downtime. Backed by ISO-certified processes and a decade of export experience, ensuring reliable performance and seamless integration into your production lines.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Alloy Steel, Carbon Steel, Stainless Steel

Processing Technology:

Forging, Heat Treatment, Precision Machining

Module Range:

Customizable from 1 to 10

Contact Supplier Request Quote Chat Now

Henan San Kuang Machinery Technology Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Alloy Steel, Carbon Steel, Stainless Steel

Processing Technology Forging, Heat Treatment, Precision Machining

Module Range Customizable from 1 to 10

Hardness Surface Hardness HRC 45-60

Application Equipment Packaging Machines, Conveying Systems

Customization Service Technical Drawings Analysis & Support

Surface Treatment Black Oxide, Phosphating, Nickel Plating

Quality Standards ISO 9001, ISO 14000, OHSAS 18001

As a leading manufacturer with over a decade of experience, Henan San Kuang Machinery Technology Co., Ltd. specializes in providing high-precision Custom Gear Shafts tailored for the demanding environments of packaging and conveying equipment. Our commitment to innovation and quality, backed by a 10,000-30,000 square meter factory and a team of skilled engineers, ensures we deliver components that enhance machine reliability and operational efficiency. We understand that downtime is costly, which is why our gear shafts are engineered for durability and seamless integration into your production lines.

Our custom gear shafts are the critical link in power transmission systems, designed to meet the specific torque, speed, and space constraints of your machinery. We offer comprehensive technical support from the initial design phase to final installation, ensuring a perfect fit and optimal performance.

Precision Engineering: Each shaft is manufactured using advanced CNC machining and grinding techniques to achieve tight tolerances and superior surface finishes, minimizing vibration and noise.
Material Excellence: We select from high-grade alloy steels, carbon steels, or stainless steels based on your application's load, wear, and corrosion resistance requirements.
Robust Heat Treatment: Processes like carburizing, induction hardening, and tempering are applied to achieve the core toughness and surface hardness (typically HRC 45-60) needed for long service life.
Custom Design Flexibility: We produce gear shafts with modules ranging from 1 to 10, accommodating various tooth profiles (spur, helical, spline) and shaft configurations (straight, stepped, keyed).

Below is a summary of typical specifications we can provide:

Parameter	Specification Range / Options
Primary Material	20CrMnTi, 42CrMo, 45# Steel, 304/316 Stainless Steel
Shaft Diameter	10 mm - 300 mm (Customizable)
Length	Up to 2000 mm
Gear Module	1 - 10
Tooth Hardness	HRC 45-60 (Surface)
Accuracy Grade	DIN 6-9, AGMA 10-12
Surface Finish	Ra 0.8 - 3.2 μm
Key Features	Integrated Technical Support, Dimensional & Material Customization, Prototype Service Available

The advantages of partnering with us for your custom gear shaft needs are clear:

Extended Equipment Lifespan: Precision-made shafts reduce stress concentrations and wear on bearings and other components.
Improved Operational Efficiency: Accurate gear meshing ensures smooth power transfer, reducing energy loss and increasing throughput.
Reduced Maintenance Costs: Durable materials and proper heat treatment significantly lower the frequency of replacements and unplanned stops.
Design & Application Support: Our engineers work with you to optimize the shaft design for your specific packaging or conveying application, solving complex mechanical challenges.

Henan San Kuang Machinery Technology operates a modern facility and holds certifications including ISO 9001 for quality management and ISO 14000 for environmental management, reflecting our commitment to consistent, reliable production. With an annual export value reaching up to US$5 Million and a strong presence across global markets from North America to Southeast Asia, we have proven our capability to meet international standards and delivery expectations. Our technical support team is ready to assist you from prototype development to full-scale production, ensuring your custom gear shafts perform flawlessly in your equipment. Contact us today to discuss your project requirements and experience the difference that precision engineering and dedicated partnership can make.

Frequently Asked Questions (FAQ)

Q: What information do you need to provide a quote for custom gear shafts?
A: To provide an accurate quote, we typically require your technical drawings (2D/3D CAD files), specifications for material, hardness, required tolerances, surface finish, and the intended application (e.g., type of packaging machine). Quantity is also a key factor.
Q: Can you work from a sample or a broken part if I don't have drawings?
A: Yes, we offer reverse engineering services. You can send us a physical sample or the broken component. Our technical team will analyze it, take precise measurements, and recreate the drawings for manufacturing.
Q: What is your typical lead time for production?
A: Lead time varies based on complexity and order volume. For standard custom orders, it generally ranges from 4 to 8 weeks. Prototype development may take 2-3 weeks. We provide a detailed schedule upon order confirmation.
Q: How do you ensure the quality and durability of the gear shafts?
A: Quality is ensured through a multi-stage process: strict raw material inspection, controlled machining processes, mandatory heat treatment with hardness testing, and final dimensional and runout inspection. Our ISO 9001 certified quality management system governs every step.
Q: What surface treatment options are available to prevent corrosion?
A: We offer various surface treatments including black oxide (blackening), phosphating, nickel plating, and zinc plating. For harsh environments in food or chemical conveying, passivation for stainless steel is also available.
Q: Do you provide technical support for installation or troubleshooting?
A: Absolutely. Our technical support extends beyond manufacturing. We can provide installation guidelines, maintenance recommendations, and assist with troubleshooting operational issues related to the gear shaft's performance.
Q: What are your main shipping ports and payment terms?
A: We primarily ship from the Port of Shanghai, Qingdao, Tianjin, and Lianyungang. Standard payment terms are 30% T/T deposit with balance before shipment, but other terms like L/C are negotiable based on order history and value.
Q: Can you produce gear shafts for high-speed or heavily loaded applications?
A: Yes. We specialize in shafts for demanding applications. By selecting appropriate high-strength alloy steels, applying precise heat treatment, and ensuring high dynamic balance, we manufacture shafts capable of handling high speeds and significant torsional and bending loads.
