Home > Electrical & Electronics > Passive Components > Capacitor > 10KW Grid-Tied Wind Inverter and Controller Unit With Comprehensive Warranty

10KW Grid-Tied Wind Inverter and Controller Unit With Comprehensive Warranty

10KW Grid-Tied Wind Inverter and Controller Unit With Comprehensive Warranty thumbnail-3

10KW Grid-Tied Wind Inverter and Controller Unit With Comprehensive Warranty thumbnail-4

10KW Grid-Tied Wind Inverter and Controller Unit With Comprehensive Warranty thumbnail-5

10KW Grid-Tied Wind Inverter and Controller Unit With Comprehensive Warranty photo-1

10KW Grid-Tied Wind Inverter and Controller Unit With Comprehensive Warranty photo-2

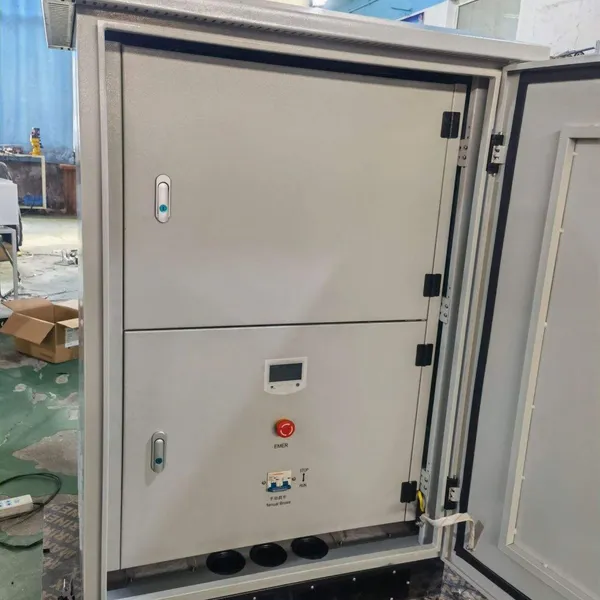

10KW Grid-Tied Wind Inverter and Controller Unit With Comprehensive Warranty photo-3

10KW Grid-Tied Wind Inverter and Controller Unit With Comprehensive Warranty photo-4

10KW Grid-Tied Wind Inverter and Controller Unit With Comprehensive Warranty photo-5

Product Spotlights

Integrated 10KW grid-tie inverter & MPPT controller for wind turbines. Features high efficiency (>97%), robust grid protection (anti-islanding), and remote monitoring. Built for durability (wide temp range, weatherproof) and backed by a comprehensive warranty. Simplifies installation and maximizes energy harvest for commercial/residential projects.

US$ 5600 ≥10 Units

Key Specifications

Get Latest Price

Rated Power:

10 kilowatts

System Type:

Grid-tied (On-grid)

Input Voltage (Wind Turbine):

Customizable (e.g., 3-phase AC)

Contact Supplier Request Quote Chat Now

Jinhua Dika Electrical Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Rated Power 10 kilowatts

System Type Grid-tied (On-grid)

Input Voltage (Wind Turbine) Customizable (e.g., 3-phase AC)

Output Voltage (Grid) 220V/230V/240V AC, 50/60Hz

Maximum Efficiency Over 97% (MPPT)

Protection Features Anti-islanding, over/under voltage, over current

Communication Interface Optional (RS485, Wi-Fi, Ethernet)

Operating Temperature Range -25°C to +60°C

Enclosure Rating IP65 (typical, weatherproof)

Warranty Period Comprehensive warranty (terms available)

As a dedicated manufacturer of renewable energy solutions, Jinhua Dika Electrical Equipment Co., Ltd. is proud to present our integrated 10KW Grid-Tied Wind Inverter and Controller Unit. Engineered for reliability and performance, this unit is the core component that efficiently converts and manages the variable power from your wind turbine, synchronizing it seamlessly with the utility grid. Our solution is designed to maximize your energy harvest, ensure safe operation, and provide a stable return on investment for commercial, agricultural, and residential wind energy projects worldwide.

This all-in-one unit combines a sophisticated Maximum Power Point Tracking (MPPT) controller and a high-efficiency grid-tied inverter, eliminating the need for separate components and simplifying installation. We understand the demands of diverse markets, from the variable climates of North America and Europe to the challenging environments in Southeast Asia and Africa. Our product is built to meet these challenges, offering robust performance and the peace of mind that comes with our comprehensive warranty support.

Core Features and Technical Advantages:

High-Efficiency Energy Conversion: The advanced MPPT algorithm continuously optimizes the power draw from the wind turbine, ensuring you capture the maximum available energy even in fluctuating wind conditions, with peak conversion efficiency exceeding 97%.
Seamless Grid Integration: Features pure sine wave output that perfectly matches grid parameters. It includes essential anti-islanding protection, ensuring automatic shutdown if the grid fails, protecting utility workers and complying with grid connection standards.
Robust Protection Suite: The unit is equipped with multiple layers of protection to safeguard both the system and the grid:
- Over-voltage and under-voltage protection for input and output.
- Over-current and short-circuit protection.
- Over-temperature protection with intelligent fan control.
- Lightning and surge protection (optional enhanced modules available).
Intelligent Monitoring and Control: Users can monitor system performance, energy yield, and operational status through an intuitive LCD display. Optional communication interfaces (like RS485, Wi-Fi, or Ethernet) enable remote monitoring and data logging via PC or smartphone apps, allowing for proactive system management.
Durable and Adaptive Design: Housed in a corrosion-resistant, weatherproof enclosure (typically IP65 rated), the unit is built for long-term outdoor installation. Its wide operating temperature range ensures consistent performance from frigid winters to hot summers.

Key Technical Specifications:

Parameter	Specification
Model	DK-WI-10G
Rated AC Output Power	10,000 W
Max. PV Input Power (for hybrid optional)	12,000 W
MPPT Voltage Range (Wind)	90 VDC - 550 VDC
Grid Voltage Range	180 VAC - 280 VAC
Grid Frequency Range	50 Hz / 60 Hz (±5 Hz)
Total Harmonic Distortion (THD)	< 3% (at rated power)
Cooling Method	Smart forced air cooling
Dimensions (LxWxH) approx.	500 x 350 x 200 mm

Benefits for Your Business:

Reduced Energy Costs: Generate your own electricity and offset grid consumption, leading to significant savings on utility bills.
Revenue Generation: In regions with feed-in tariffs or net metering, excess power fed back to the grid can create an additional income stream.
Enhanced Sustainability Profile: Demonstrate a commitment to clean energy, which can improve brand image and meet corporate sustainability goals.
Low Maintenance & High Uptime: The integrated, reliable design minimizes maintenance needs and maximizes system availability.
Future-Proof Investment: The unit's design allows for potential integration with other renewable sources, like solar PV, offering scalability for future energy needs.

Backed by Jinhua Dika's commitment to quality, evidenced by our ISO9001 certification for our management systems, this inverter and controller unit is a product of rigorous manufacturing standards. With an annual export value reflecting our global reach across continents from North America to Oceania, and supported by flexible shipment options from major ports like Shanghai and Ningbo, we are equipped to be your reliable partner in renewable energy. Our team of 11-50 dedicated professionals ensures every unit meets performance expectations. Choose our 10KW Grid-Tied Wind Inverter for a solution that delivers not just power, but also performance assurance, operational safety, and long-term value, all protected by our comprehensive warranty. Contact us today to discuss how this system can be tailored to your specific project requirements.

Frequently Asked Questions (FAQ)

Q: What size wind turbine is compatible with this 10KW inverter?
A: This unit is optimally paired with a wind turbine having a rated output around 10-12KW. The key compatibility factor is the turbine's voltage output, which should fall within the inverter's MPPT voltage range (90-550VDC). We recommend consulting our technical team for specific turbine matching.
Q: Does this system work during a power blackout?
A: Standard grid-tied inverters, including this model, are designed to shut down during a grid outage (anti-islanding) for safety. If backup power is needed, a system redesign with batteries and a hybrid inverter function (available as an optional configuration) would be necessary.
Q: What is included in the "Comprehensive Warranty"?
A: Our comprehensive warranty typically covers defects in materials and workmanship for a specified period (e.g., 5 years for the inverter, 2 years for components). It includes repair or replacement. The exact terms and duration are provided with the purchase agreement. Extended warranty options may be available.
Q: Can I monitor the system's performance remotely?
A: Yes. The unit comes with a standard LCD for local monitoring. For remote monitoring, you can opt for communication modules like Wi-Fi or Ethernet, which allow you to view real-time data, historical yields, and system status from anywhere via a dedicated app or web portal.
Q: Is professional installation required?
A> Yes. Installation and connection to the electrical grid must be performed by a qualified and licensed electrician or installer familiar with local electrical codes and renewable energy systems. This ensures safety, compliance, and optimal system performance.
Q: How does the MPPT controller benefit my wind system?
A: The MPPT (Maximum Power Point Tracking) controller is crucial. It constantly adjusts the electrical load on the wind turbine to force it to operate at the point where it generates the most power for any given wind speed. This can increase total energy harvest by a significant margin compared to simpler controllers.
Q: Do you provide technical support and documentation?
A: Absolutely. We provide detailed user and installation manuals, wiring diagrams, and technical specifications. Our support team is available to assist distributors, installers, and end-users with pre-sales consultations and after-sales technical inquiries.
Q: Can this inverter be used in an off-grid system?
A: No, this specific model is designed exclusively for grid-tied (on-grid) applications. For off-grid systems requiring battery storage, we offer different inverter models. Please inquire about our off-grid or hybrid solutions.
