Help CenterU70BS 210 Glass Insulator for Wind Farm & Solar Plant Lightning Protection Grids
Product Spotlights
Related Products
-
Transparent Glass Insulator U70BS 210, Rated for 70kN Mechanical StrengthUS$ 5 - 6MOQ: 100 Units -
U70BS 210 Insulator, Tempered Glass Construction for Lightning Protection PolesUS$ 5 - 6MOQ: 100 Units
-
U70BS 210 Transparent Glass Insulators With Mill Test Report & WarrantyUS$ 5 - 6MOQ: 100 Units
-
High-Voltage U70BS 210 Transparent Glass Insulator, 210mm Creepage DistanceUS$ 5 - 6MOQ: 100 Units
-
U70BS 210 Clear Glass Insulator, 210mm Diameter, for Earthing SystemsUS$ 5 - 6MOQ: 100 Units
As a dedicated manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing high-quality electrical components for demanding applications. Our U70BS 210 Glass Insulator is engineered specifically for the critical lightning protection grids in wind farms and solar power plants. This product represents our commitment to providing reliable, durable solutions that enhance the safety and operational integrity of renewable energy infrastructure. With over a decade of experience and a focus on precision manufacturing, we deliver insulators that meet the rigorous demands of high-voltage environments.

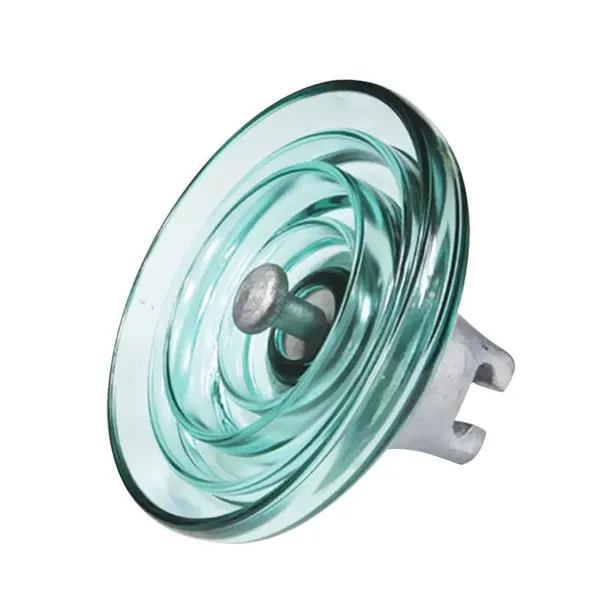

The U70BS 210 Glass Insulator is a key component designed to ensure electrical isolation within lightning protection systems. Its primary role is to support and insulate lightning arresters or other conductive elements, preventing unwanted current flow and protecting the overall grid structure. The use of high-grade glass material offers several inherent advantages for such applications.

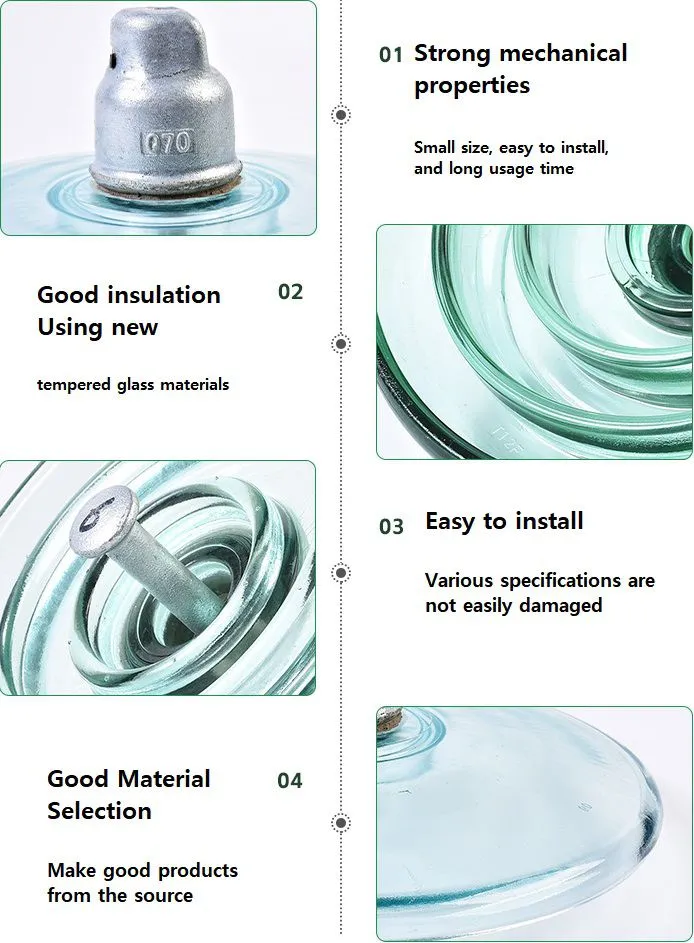

- Excellent Dielectric Strength: Glass provides superior insulation properties, maintaining high dielectric strength even under varying environmental conditions, which is crucial for lightning protection systems that experience sudden voltage surges.
- High Mechanical Strength: The insulator is designed to withstand significant mechanical loads, including wind pressure, ice accumulation, and the structural weight of the protection grid components, ensuring long-term stability.

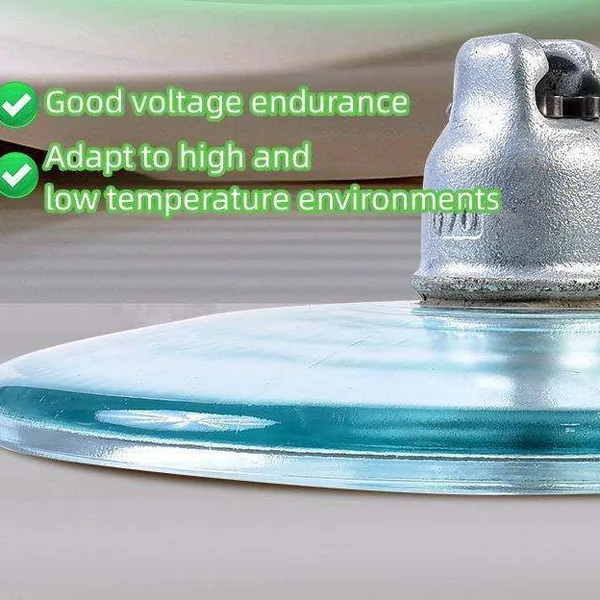

- Weather and UV Resistance: The glass material is inherently resistant to weathering, ultraviolet radiation, and temperature fluctuations common in outdoor renewable energy sites, preventing degradation over time.
- Transparency for Inspection: The transparent nature of glass allows for easy visual inspection of the insulator body for any cracks or defects, facilitating maintenance and safety checks.
- Non-Porosity and Stability: Unlike some composite materials, glass is non-porous and does not absorb moisture, which helps maintain consistent electrical properties and prevents internal corrosion.
- Customizable Mounting: The design accommodates standard mounting hardware for integration into various lightning protection grid frameworks used in wind turbine bases and solar plant perimeter systems.
Technical specifications and design parameters are tailored for utility-scale renewable energy projects. Below is a summary of key characteristics:
| Parameter | Specification / Value |
|---|---|
| Model Designation | U70BS 210 |
| Primary Material | High-Strength Electrical Glass |
| Typical Application | Lightning Protection Grids for Wind Farms & Solar Plants |
| Mechanical Load Rating | Designed for high structural load support |
| Environmental Suitability | Resistant to UV, temperature extremes, and humidity |
| Visual Feature | Transparent body for inspection |
| Mounting Compatibility | Standard grid attachment interfaces |
The advantages of using the U70BS 210 Glass Insulator translate into direct benefits for project developers, EPC contractors, and facility operators:
- Enhanced System Safety: Robust insulation reduces the risk of flashovers or grounding issues within the lightning protection system, safeguarding expensive turbine and photovoltaic assets.
- Reduced Maintenance Costs: The durable glass material minimizes the need for frequent replacements or repairs, leading to lower long-term operational expenses.
- Improved Grid Reliability: Consistent performance ensures the lightning protection grid remains functional, which is vital for preventing damage from direct strikes or induced currents.
- Simplified Logistics: As a manufacturer with annual export experience, we ensure reliable supply and support for projects across global markets, including North America, Europe, Asia, and Africa.
- Compliance with Quality Standards: Our manufacturing processes are managed under an ISO9001 quality system, providing assurance of consistent product quality and traceability.
Jinhua Dika Electrical Equipment Co., Ltd. stands behind the U70BS 210 Glass Insulator with a solid foundation of manufacturing expertise and international trade experience. With an annual export value ranging between US$1 Million and US$1.5 Million, we have successfully supplied components to diverse markets worldwide, including North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, and the Middle East. Our team of 11-50 skilled professionals ensures every insulator meets precise specifications. We offer flexible shipment options from major Chinese ports like Shanghai, Tianjin, Guangzhou, and Ningbo, facilitating smooth delivery to your project site. Choosing our insulator means selecting a component backed by a committed manufacturer focused on the reliability of renewable energy infrastructure. For detailed quotations, custom requirements, or technical support, contact us to discuss how this product can strengthen your lightning protection strategy.
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the U70BS 210 Glass Insulator in a lightning protection grid?
A: Its primary function is to provide electrical insulation between different parts of the lightning protection grid, such as between an arrester and its support structure. It prevents unintended current paths and helps maintain the designed isolation within the high-voltage system.
Q2: Why is glass chosen as the material for this insulator instead of polymer or ceramic?
A: Glass offers a combination of high dielectric strength, excellent environmental resistance (to UV, temperature, moisture), and transparency for visual inspection. It is also a stable material that does not degrade or become porous over time, which is important for long-term insulation performance.
Q3: Is this insulator suitable for both wind farm and solar plant applications?
A: Yes, it is designed specifically for the lightning protection grids used in both types of renewable energy facilities. The mounting and load requirements are compatible with the typical structures found around wind turbine bases and solar plant perimeters.
Q4: What are the key mechanical considerations for installing this insulator?
A: The insulator is designed to handle significant mechanical loads from the grid structure and environmental forces like wind. Installation should follow standard practices for securing glass insulators, ensuring proper alignment and avoidance of point stresses.
Q5: Does the product come with any specific certifications?
A: Our manufacturing facility operates under an ISO9001 quality management system, which governs the production process and quality control. Specific product certifications can be discussed based on project requirements.
Q6: Can the insulator be supplied in different sizes or configurations?

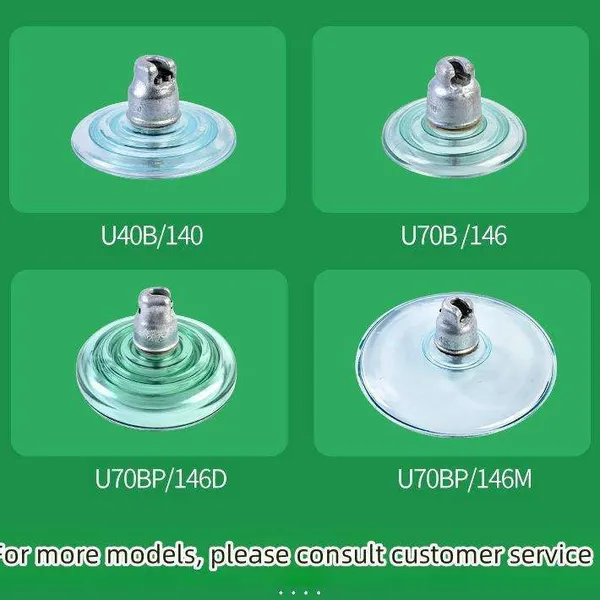

A: The U70BS 210 is a standard model. For variations in size, rating, or configuration, customization options are available. Please contact us to discuss your specific needs.
Q7: What is the typical lead time for orders of this insulator?
A: Lead times depend on order quantity and current production schedule. As an established manufacturer with export experience, we generally offer competitive lead times and can provide estimates upon request.
Q8: How does the company ensure product quality for international shipments?

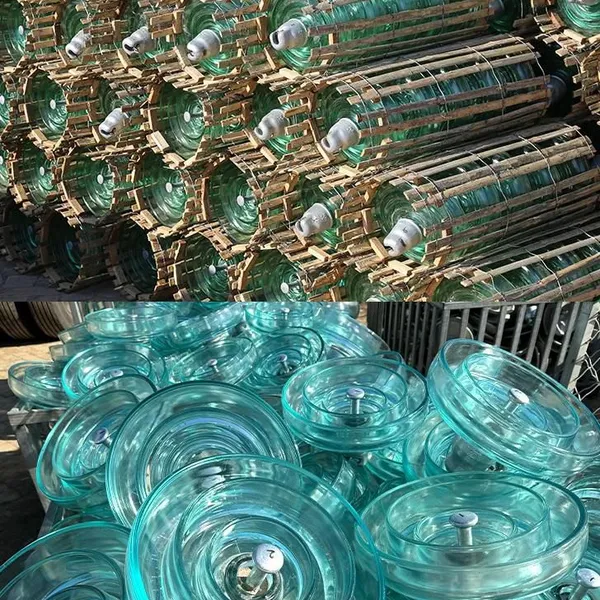

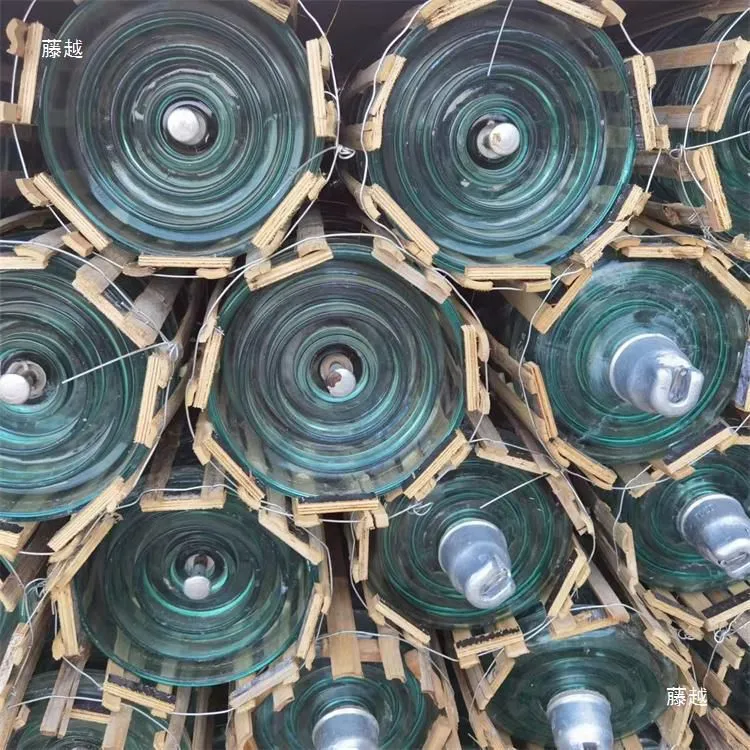

A: We implement strict quality control checks aligned with our ISO9001 system. Products are inspected before packaging. We also have experience shipping via major ports (Shanghai, Tianjin, Guangzhou, Ningbo) using reliable logistics partners to ensure safe delivery.
