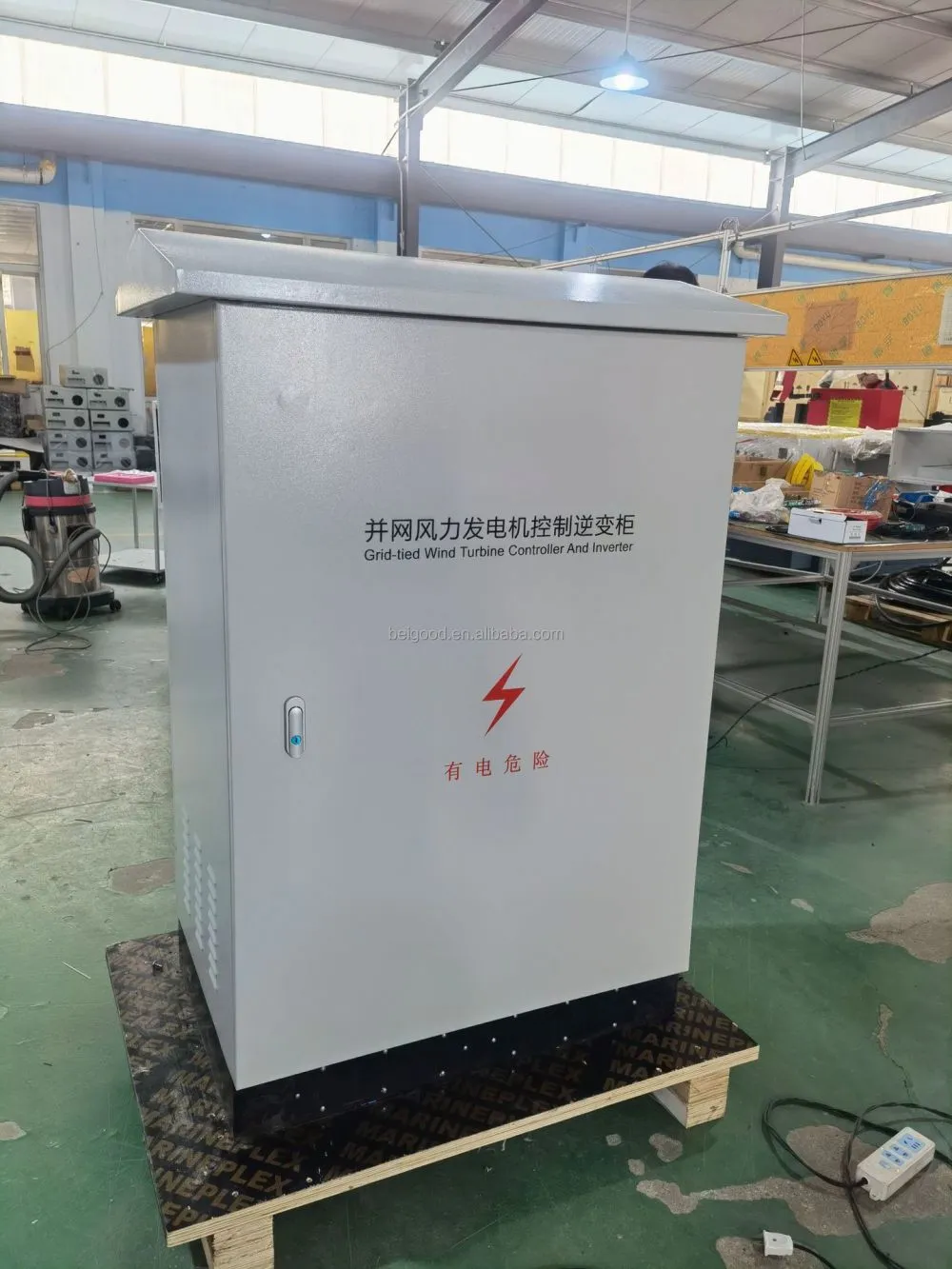

As a professional manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. is proud to introduce our advanced 10KW Wind Power Inverter with Integrated Controller for Grid Connection. Designed for reliability and high performance, this inverter is a cornerstone for converting the variable DC output from wind turbines into stable, grid-compatible AC power. With an annual export value demonstrating our global reach and backed by ISO9001-certified manufacturing processes, we deliver a product that combines sophisticated technology with rugged durability, making it an ideal solution for residential, commercial, and small-scale industrial renewable energy systems worldwide.
Our 10KW wind power inverter is engineered to maximize your investment in wind energy. Here are its standout features and benefits:
- High-Efficiency Conversion: With a peak efficiency of up to 97%, it minimizes energy loss during the DC to AC conversion process, ensuring you get the most power from your wind turbine.
- Integrated Intelligent MPPT Controller: The built-in Maximum Power Point Tracking controller continuously optimizes the power harvest from the wind turbine, adapting to varying wind speeds to extract maximum available energy.
- Seamless Grid Connection: Designed for safe and stable grid-tie operation, it synchronizes perfectly with the utility grid, allowing for the feeding of surplus power and potential net metering benefits.
- Robust Protection Suite: Comprehensive safety features protect your system and the grid. These include protection against overload, short circuit, over-temperature, and anti-islanding to ensure safety during grid outages.
- Wide Operating Range: Built to perform in diverse climates, it operates reliably in temperatures from -25°C to 60°C, making it suitable for installation in various geographical locations.
- User-Friendly Monitoring: Optional remote monitoring capabilities allow for real-time tracking of performance data, energy production, and system status via computer or mobile devices.
The technical specifications of the inverter are detailed in the table below:
| Parameter | Specification |
| Rated Output Power | 10,000 W |
| Maximum Efficiency | ≥ 97% |
| Input Voltage (DC) Range | Customizable (e.g., 48V, 96V, 120V, 240V) |
| Output Voltage (AC) | 110V / 220V / 230V / 240V (Selectable) |
| Output Frequency | 50Hz / 60Hz (Selectable) |
| Grid Connection Type | Single Phase / Three Phase (Available upon request) |
| MPPT Efficiency | > 99% |
| Cooling System | Intelligent Fan Cooling |
| Communication Interface | RS485 / Wi-Fi / GPRS (Optional) |
| Display | LCD Screen for Parameters & Status |
| Enclosure Protection | IP65 (Dust-tight and protected against water jets) |

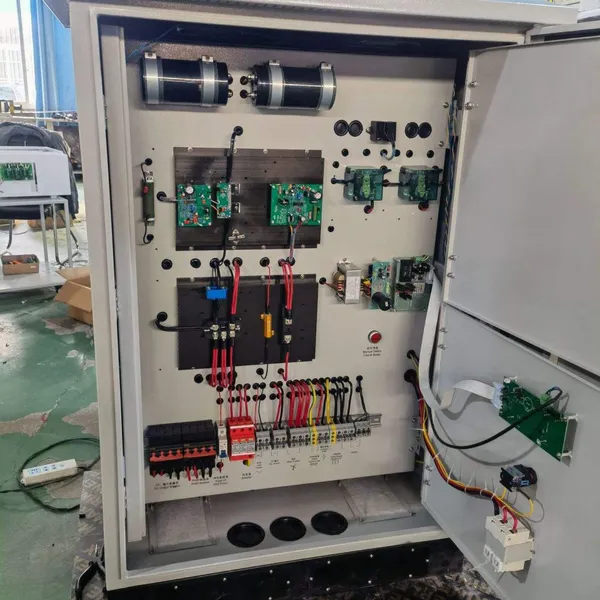

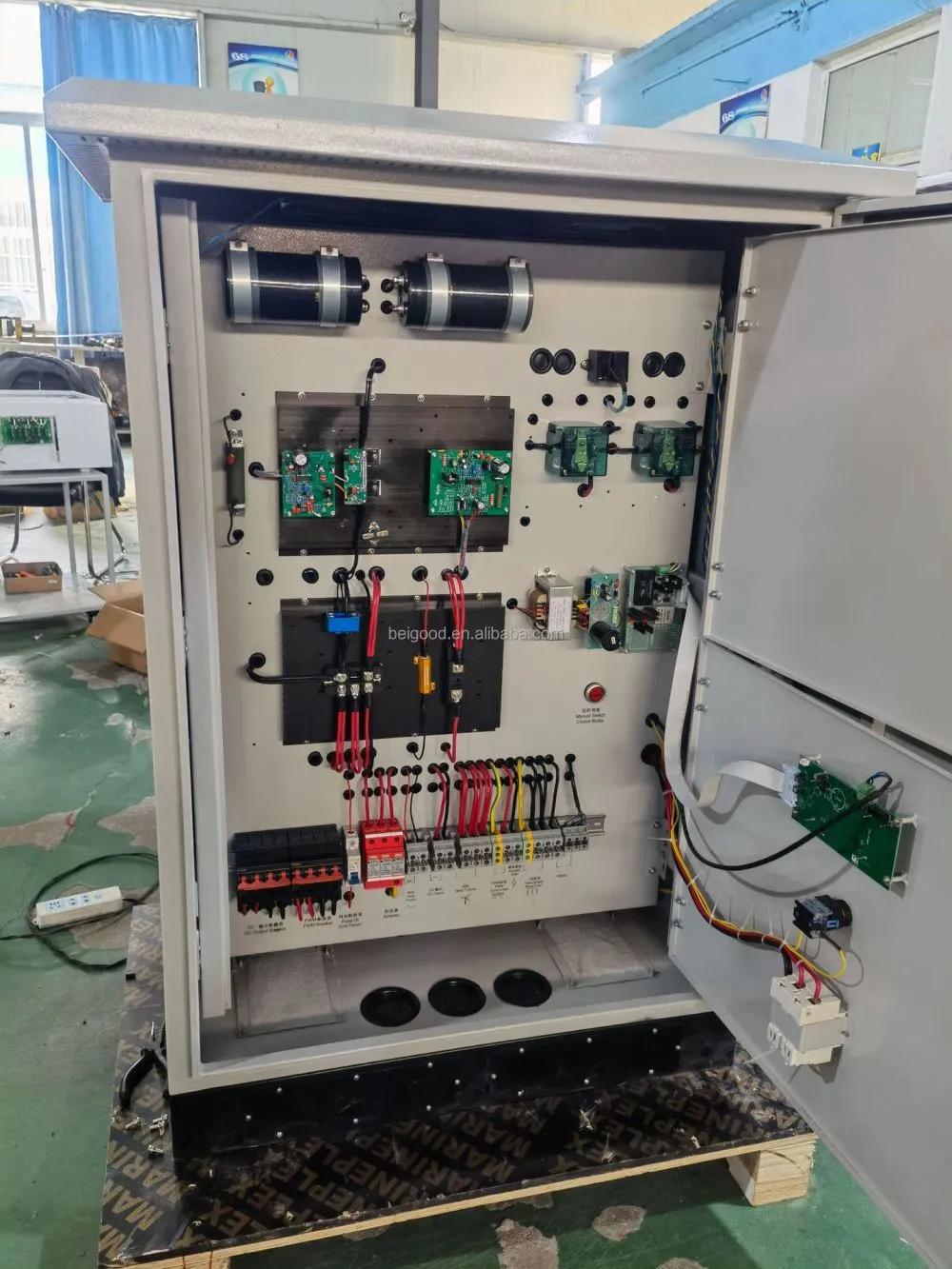

The integrated design simplifies installation and reduces system footprint and cost. By combining the inverter and controller into a single unit, we eliminate compatibility issues and reduce wiring complexity. This all-in-one solution is not only space-saving but also enhances overall system reliability and simplifies maintenance. Its modular design also allows for scalability in some configurations.
Frequently Asked Questions (FAQ)
-
Q: What is the primary advantage of an integrated controller in this inverter?
A: The integrated MPPT controller ensures optimal energy harvest from your wind turbine by constantly adjusting to find the most efficient operating point. It simplifies the system layout, improves reliability by reducing connection points, and often results in cost savings compared to separate components. -
Q: Can this inverter be used for off-grid applications?
A: This specific model is primarily designed for grid-tie applications. Its core function is to synchronize with and feed power into the utility grid. For off-grid systems requiring battery storage, a different hybrid or off-grid inverter model would be recommended. -
Q: How do I select the correct DC input voltage for my wind turbine?
A: The DC input voltage is customizable to match your wind turbine's nominal output. You need to specify your turbine's voltage (e.g., 48V, 96V) when ordering. Our technical team can provide guidance based on your specific turbine model and site conditions. -
Q: What certifications does this product hold for grid connection?
A: Our manufacturing process is certified under the ISO9001 Quality Management System, ensuring consistent product quality. Specific grid interconnection certifications (like UL, IEC) may vary by target market and are available upon request. Please inquire with our sales team for certifications relevant to your region. -
Q: Is remote monitoring supported, and what information can I access?
A: Yes, remote monitoring is an optional feature. Through interfaces like RS485, Wi-Fi, or GPRS, you can access real-time data on power output, daily/monthly energy yield, wind speed (if connected), operating voltage, and system fault logs, all from a computer or smartphone. -
Q: What is the expected lifespan of this inverter?
A: Designed with high-quality components and robust thermal management, the inverter has a long design life. Under normal operating conditions and with proper installation, its service life can extend for many years. The intelligent fan cooling system plays a key role in maintaining optimal internal temperatures for component longevity. -
Q: Do you provide technical support and warranty?
A: Yes, as a manufacturer, we offer comprehensive technical support for installation and configuration. The product comes with a standard warranty period, and details can be provided upon request. Our global presence in markets across North America, Europe, Asia, and beyond allows us to support our clients effectively. -
Q: Can this inverter handle the variable and sometimes high input from wind turbines?
A: Absolutely. It is specifically engineered for the variable DC input characteristic of wind turbines. The wide MPPT voltage range and robust internal circuitry are designed to manage fluctuations and protect against overvoltage events common in wind power applications.
Trust in Jinhua Dika Electrical Equipment, a manufacturer with a proven track record reflected in our US$1 Million - US$1.5 Million annual export value and a presence in major global markets from North America to Southeast Asia and Europe. Our ISO9001 certification underpins our commitment to quality at every production stage. This 10KW Wind Power Inverter embodies our dedication to providing reliable, efficient, and technologically advanced solutions for the renewable energy sector. By choosing our product, you are partnering with a capable supplier committed to supporting your project's success. Contact us today to discuss your requirements, request a detailed quotation, or learn more about how this inverter can optimize your wind energy system.
