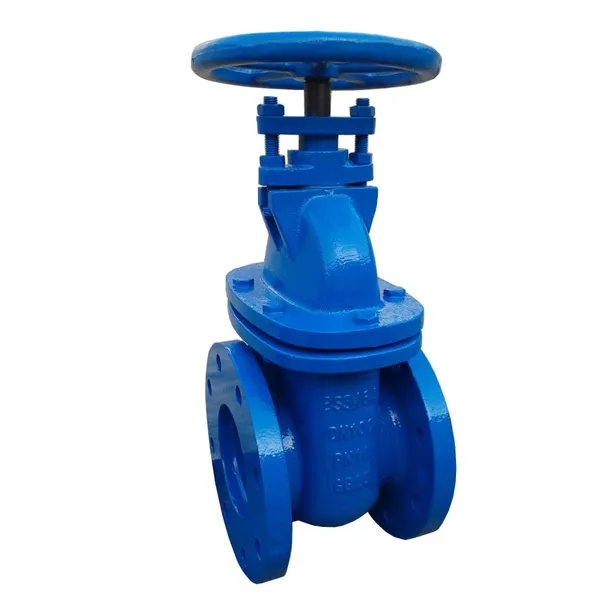

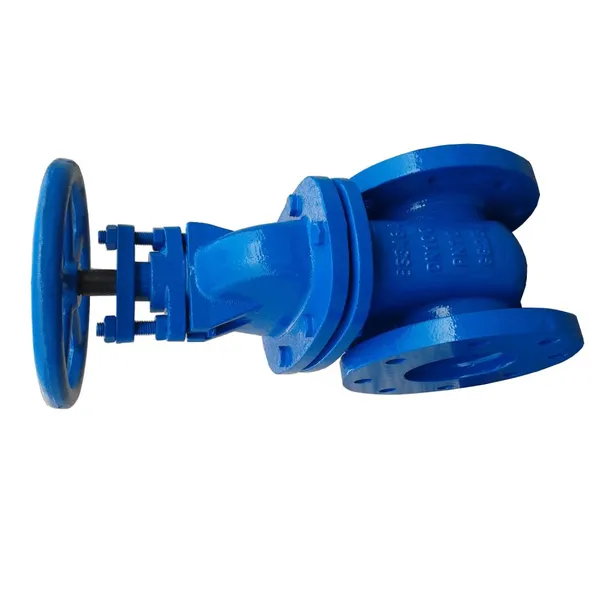

BS Rising Resilient Seat Gate Valve, industrial valve, the opening and closing part of soft seal gate valve is the gate. The movement direction of the gate is perpendicular to the fluid direction. The gate valve can only be fully opened and fully closed, not adjusted and throttled. The ram has two sealing surfaces. The most commonly used mode is that the two sealing surfaces of the ram valve form a wedge, and the wedge angle varies with the valve parameters
BS Rising Resilient Seat Gate Valve Standard:
Production Size:2”-40” DN50-DN1000mm
Pressure range:PN10,PN16
Design Standard:BS5163,BS5150
Face to Face:BS5150
Flange Standard:EN 1092-2
Testing Standard:ISO 5208
BS Rising Resilient Seat Gate Valve main material of parts:
Body:EN-GJS-500-7
Bonnet:EN-GJS-500-7
Stem:2Cr13/SS304/SS316/Carbon Steel
Stem Nut:brass
Disc:EN-GJS-500-7
Seat:NBR,EPDM,PTFE
Bonnet Gasket:Graphite
Packing:NBR,EPDM
Hand wheel:EN-GJS-500-7
