PRODUCT DESCRIPTION
Our company designs and manufactures the trommel screen machine is mainly used for screening of urban waste, construction waste, the stale waste.
According to the materials It's mesh sizes at 10-200mm, which can be customized, It is an important screening equipment in the municipal solid waste recycling plant.
Model |
Diameter(mm) |
Length(mm) |
Power(kw) |
Capacity(t/h) |
JTS1200 |
1200 |
4000-8000 |
4-5.5 |
≥20 |
JTS1500 |
1500 |
5000-9000 |
5.5-7.5 |
≥40 |
JTS1800 |
1800 |
6000-10000 |
7.5-11 |
≥50 |
JTS2000 |
2000 |
8000-11000 |
11-15 |
≥60 |
JTS2200 |
2200 |
9000-12000 |
15-18.5 |
≥70 |
JTS2500 |
2500 |
10000-15000 |
18.5-22 |
≥80 |
JTS2500 |
2500 |
10000-15000 |
22-30 |
≥100 |

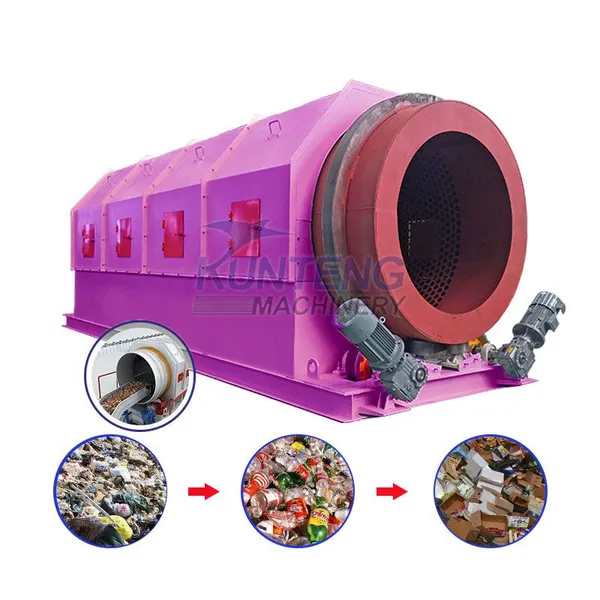

Trommel screen machine |
||||
The screening rate can reach 70%-90% |
All kinds of domestic waste, industrial waste, decoration waste, construction waste, obsolete waste, urban domestic waste, etc.,can be screened, sorted, packaged, recycled and reused by our machines
Working principle of automatic garbage sorting plant:
Stale garbage ,landfill garbage, or stale waste enters the feeder to the conveyor, Trommel screen can separate small particles. The magnetic separator will screen out the ferromagnetic material to the recycling station for use, the wind separator will screen out the plastic, waste paper, glass, wood chips, etc., and convert organic matter into organic fertilizer through follow-up treatment, so that the waste can be further utilized.
Application Material:
Old waste, municipal or household waste: organic, inorganic, waste paper, plastic bags, fabrics, plastic, glass, metal, etc. Construction waste: muck, waste concrete, waste bricks, brick fragments, waste mortar, asphalt blocks, waste plastics, waste metal, waste bamboo, industrial waste, etc. These wastes are screened and reprocessed by equipment to increase their utilization value.
Specifications of Waste Sorting Line
Model |
KT-1500 |
KT-1800 |
KT-2000 |
KT-2200 |
KT-2500 |
Rated output |
50t/day |
100t/day |
200t/day |
300t/day |
500t/day |
Box feeder |
B800×4000 |
B1000×4000 |
B1200×4000 |
B1400×4000 |
B1400×7000 |
Trommel screen |
T1500*6000 |
T1800*6000 |
T2000*6000 |
T2200*8000 |
T2500*8000 |
Magnetic separator |
RCYD-6 |
RCYD-8 |
RCYD-10 |
RCYD-10 |
RCYD-12 |
Air separator |
GX-A60 |
GX-A80 |
GX-A100 |
GX-A120 |
GX-A160 |
Baller |
B30T |
GX-B80 |
GX-B100 |
GX-B120 |
GX-B160 |
Number of conveyors |
B650*6 |
B800*6 |
B1000*6 |
B1200*6 |
B1200*6 |
Floor area |
18m*58m |
19m*60m |
20m*62m |
22m*65m |
24m*77m |
Total Power |
84kw |
102kw |
135kw |
165kw |
222kw |
Main machines of the line
Related Products
Waste shredder machine
Incinerator
Bag Breaker
Customer Case
About Automatic waste sorting plant stale mix plastic sorting line garbage disposal line:
Generally, stale garbage can be divided into five categories. waste paper, plastic, glass, wood chips,metal materials and biological waste. part of them recycled. Another part is composted and landfilled.
Company Profile
Henan Kunteng Machinery Equipment Co., Ltd.Found in1999,It is mainly engaged in briquette equipment, Garbage sorting production line,charcoal equipment, drying equipment,mineral processing equipment。 such as Granulator, balers, waste trommel,small trommel screen,ball presses, dryers, hydraulic presses, tablet presses, granulators,coal Rod machine, charcoal machine, briquette machine and auxiliary equipment,Trommel screen, comprehensive winnowing machine,, etc. The company has been approved as an independent import and export enterprise in China, an ISO international quality certification enterprise, and an EU CE certification enterprise. It has been rated as an honest private enterprise in Zhengzhou and a patent demonstration enterprise in Zhengzhou. Has obtained eight utility model patents, two appearance patents, and applied for one invention patent.
PACKING & SHIPPING
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, focus on design and manufacturing waste sorting machine.
Q2: How long is the warranty period?
A2: These waste sorting equipment are usually guaranteed for 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange waste sorting machine for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire line of waste sorting equipment, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
