Details display
Through the uniform feeding of garbage, the automatic sorting system of bulky waste, the crushing system of bulky waste, the automatic bag breaking of bagged waste, and the automatic crushing system of large organic matter,.
The system can sort municipal solid waste into: 1: Inorganic substances; 2: sandy soil; 3: organic matter; 4: non-recyclable combustibles (if supplemented by simple manual sorting, hard plastics, rubber, etc. can also be separated); 5: film plastics; 6: ferromagnetic objects kind
Production Line

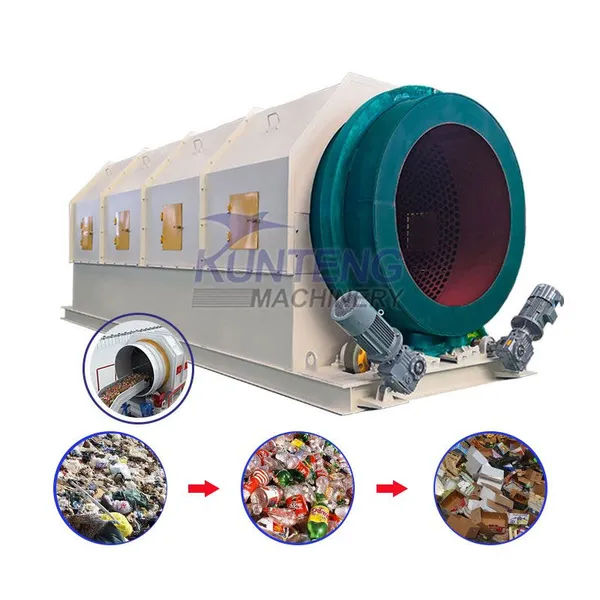

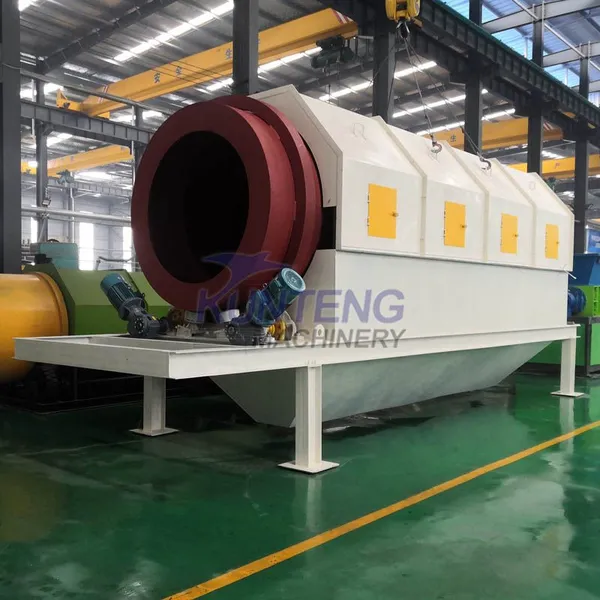

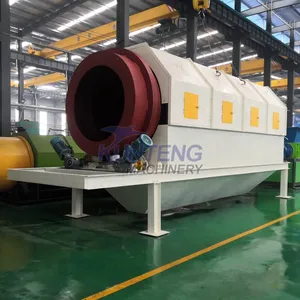

Rollor screen machine
The trommel is an importment in the garbage comprehensive treatment line convenient screen plate replacement and easy maintenance.
Comprehensive air machine
The wind separation process is based on the sedimentation law of various solid wastes in the air,so as to ahcieve the purpose of classification,recycling and reuse.
Manual sorting platform
This is mainly used in the garbage disposal line can not rely on mechanical sorting parts,mainly used in the drum screen before sorting out large interference and the drum screen after the material and wind separation of the resource utilization of goods sorting position.
serial number |
device name |
model |
power(kw) |
price(usd) |
1 |
Box feeding |
B800×4000mm |
4 |
6,716 |
2 |
feeder |
B800×10000mm |
5.5 |
3,731 |
3 |
trommel screen |
GTS1500*6000mm |
8 |
17,164 |
4 |
Undersieve Conveyor |
B500×7000mm |
3 |
1,776 |
5 |
Transfer undersieve conveyor |
B500×10000mm |
3 |
2,537 |
6 |
Iron remover |
RCYD-5 |
1.1 |
3,731 |
7 |
On-sieve conveyor |
B650×10000mm |
4 |
2,985 |
8 |
Iron remover |
RCYD-6 |
1.5 |
4,179 |
9 |
winnowing |
GX-A60 |
27.4 |
16,418 |
10 |
Heavy Material Conveyor |
B500×10000mm |
3 |
2,537 |
11 |
Heavy material 4-person sorting table |
B500×6000mm |
3 |
5,373 |
12 |
Light Material Conveyor |
B650×10000mm |
4 |
2,985 |
13 |
Light material 10-person sorting table |
B650×13000mm |
5.5 |
13,433 |
14 |
baler |
30T |
11 |
4,500 |
15 |
Control cabinet |
2,507 |
||
50 tons of domestic waste sorting per day |

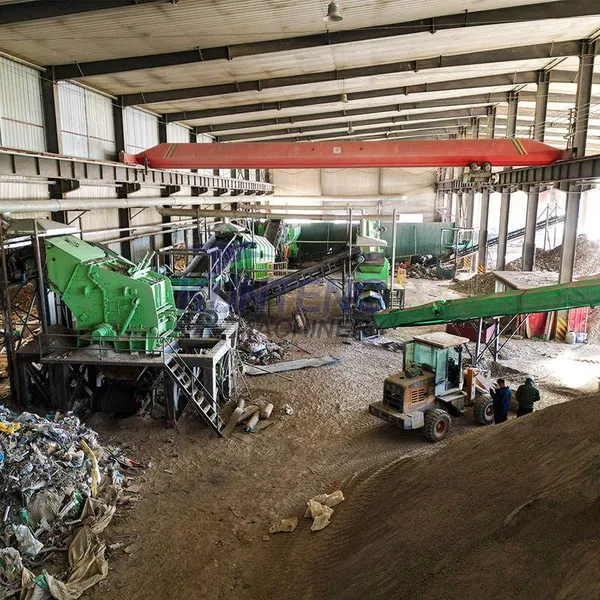

Domestic garbage is transported in by garbage trucks.
After the weighbridge is overweight, the garbage truck enters the garbage truck rotary workshop, unloads the garbage in the garbage temporary storage room, and sprays deodorant while unloading.
The material is loaded to the uniform feeder through the bridge-type double-girder grab crane, and the material is transported to the bulky waste sorting machine through the uniform feeder. This machine can separate all the bulky garbage in the garbage (the sorting rate is 99%), separate more than 90% of the sand in the garbage, and separate 25-35% of the organic garbage.
At the same time, it can separate the larger bags More than 90% of the waste bags are broken, and the rest of the waste can be processed by the bag breaker.
This machine can open all the unopened bags of garbage in the garbage, break up the sundries sticking to the plastic, and break up the organic matter with a particle size greater than 60mm to less than 600mm
Working Principle
The garbage processed by the broken belt crusher naturally falls to the comprehensive winnowing machine, and meets the rectified flat airflow vertically.
According to the principle of different specific gravity, different landing points, different particle sizes and different components of the crushed garbage, municipal solid waste can be sorted into ferromagnetic objects (including batteries) through wind separation device, particle separation device, and magnetic separation device. , organic matter, non-recyclable combustibles, film plastics, etc.
Working principle :1.Household waste sorting process in several stages. 2.Box feeder+bag breaking machine(Feeding the material evenly and tear the bag into the next process) 3.Trommel screen(Mainly used for sieving organic and inorganic substances) 4.Air sorting machine(Mainly used for screening light materials and heavy materials) 5.Manual sorting table( Sorting out rubber, wood blocks, large pieces of glass, batteries, etc. from the garbage) 6.Hydraulic baling machine(The sorted plastics and cartons are packaged and can be further processed into RDF fuel rods)
Customer visit
Company Profile
Henan Kunteng Machinery Equipment Co., Ltd. is mainly engaged in briquette equipment, Garbage sorting production line,charcoal equipment, drying equipment,mineral processing equipment。
such as wire cutters, balers, Msw Sorting Plant Suppliers,Waste Pet Bottles Sorting
Line,Garbage Recycling Plant Plastic,Environmental Solid Waste Recycling Plant Suppliers Municipal Solid Waste Sorting Plant City,Waste Production Line,Recycling Garbage Line,ball presses, dryers, Msw Sorting Machine,Msw Sorting Systems,Plastic Waste Sorting Plant,Garbage Sorting Equipment,granulators,coal Rod machine, charcoal machine, Machine Garbage Treatments,briquette machine and auxiliary equipment,Trommel screen, comprehensive winnowing machine,, etc.
The company has been approved as an independent import and export enterprise in China, an ISO international quality certification enterprise, and an EU CE certification enterprise.
It has been rated as an honest private enterprise in Zhengzhou and a patent demonstration enterprise in Zhengzhou.
Has obtained eight utility model patents, two appearance patents, and applied for one invention patent.
