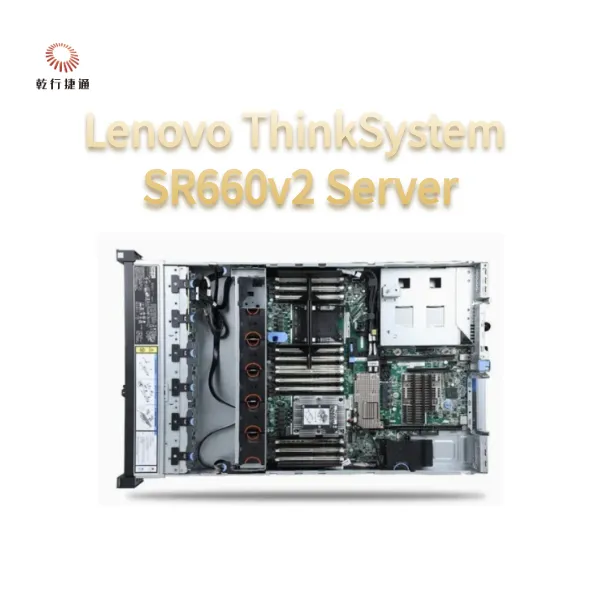

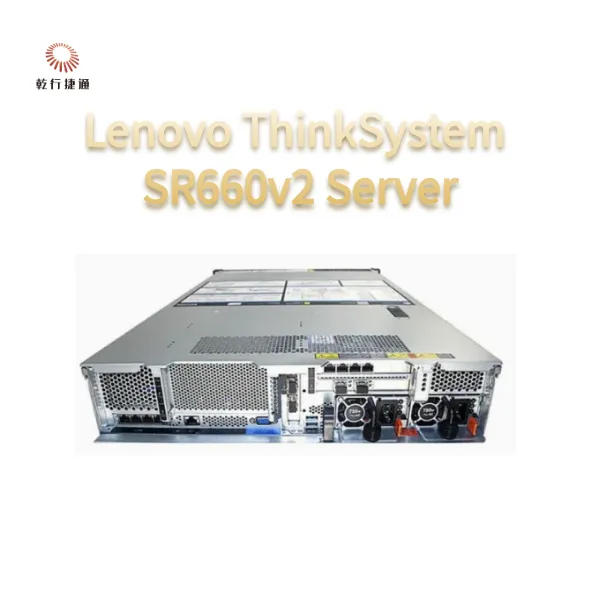

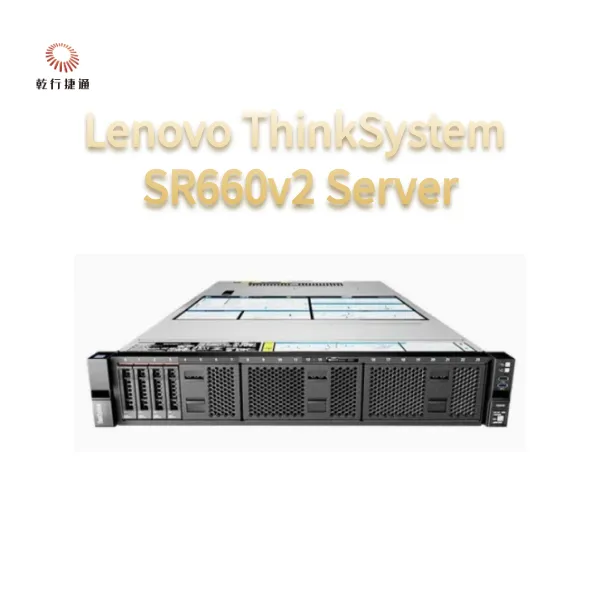

ThinkServer SR660 V2
Ideal for Compute-Intensive Workloads
Designed for medium to large enterprises and cloud service providers, the Lenovo ThinkServer SR660 V2 is a high-performance, highly scalable 2U dual-socket server. With CPU computing power supporting up to 270W TDP, low-latency NVMe SSDs, and strong GPU performance, it meets a wide range of customer workloads including databases, virtualization and cloud computing, high-performance computing, virtual desktop infrastructure, infrastructure security, system management, enterprise applications, collaboration and email, streaming media, and more. At the same time, the SR660 V2 is an ideal platform for hyper-converged infrastructure (HCI), software-defined storage (SDS), and other solutions, delivering high-performance hardware infrastructure for these deployments.
| Item | Details |
|---|---|
| Form Factor / Height | 2U Rack Server |
| Processor | Up to 2 x 3rd Gen Intel® Xeon® Scalable Platinum processors, up to 40 cores, TDP up to 270W |
| Memory | 32 x DDR4 memory slots; Max 4TB using 32 x 128GB LRDIMM; Supports up to 16 x Intel® Optane™ Persistent Memory 2000 Series (PMem) modules, max 6TB |
| Hard Drive | Up to 20* x 3.5" or 40* x 2.5" drive bays; Up to 36* x NVMe drives; 2 x M.2 boot drives (RAID 0, 1) |
| Expansion | Up to 12* x PCIe 4.0 slots, 2 x OCP 3.0 slots |
| Network | LOM adapter installed in OCP 3.0 slot; Supports PCIe adapters |
| Power Supply | Dual redundant power supplies (up to 2200W Platinum); Supports 336V & -48V high-voltage DC power |
| Management | Lenovo BMC |
| Operating System | Microsoft, SUSE, Red Hat, VMware, CentOS, NeoKylin, Ubuntu, etc. |
| GPU Support | Up to 8 x single-width or 4* x double-width GPUs |
| Ports | Front: 1 x USB 3.1 Gen1, 1 x USB 2.0, 1 x VGA (optional) Rear: 2 x USB 3.1 Gen1, 1 x VGA, 1 x RJ-45 (management), 1 x serial port (optional) |
| HBA / RAID Support | Standard software RAID; Optional hardware RAID (with or without cache) or 8/16-port SAS HBA |
Feature-Rich & Scalable
The ThinkServer SR660 V2 supports Intel® Optane™ Persistent Memory 200 Series and up to two 3rd Gen Intel® Xeon® Scalable processors, with up to 40 cores per CPU for high core density across multiple sockets.
Lenovo AnyBay technology enables flexible mixing of SAS/SATA HDD/SSD and NVMe SSD in the same drive bays. The SR660 V2 supports a maximum storage configuration of up to 40* 2.5" or 20* 3.5" SAS/SATA HDDs, plus up to 36* NVMe SSDs.
It supports up to 12* PCIe 4.0 slots and 2 OCP 3.0 slots, and can accommodate up to 4* 300W GPUs, delivering superior scalability and higher network speeds. This eliminates bottlenecks that reduce overall enterprise efficiency, making it ideal for I/O intensive workloads such as software defined networking and grid computing.
Storage tiering optimizes application performance for the most cost effective solution. Optional mirrored M.2 drives ensure reliability and fast OS initialization. The SR660 V2 also features Platinum and Titanium PSUs and can operate continuously at up to 45°C to lower energy costs.
