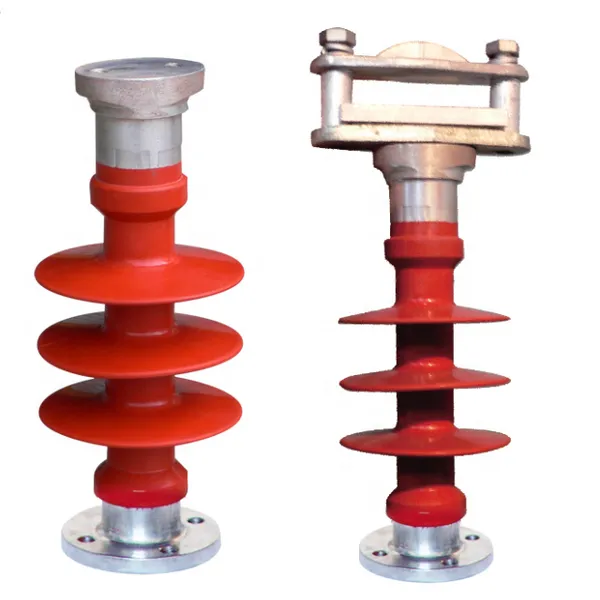

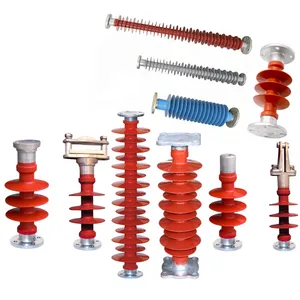

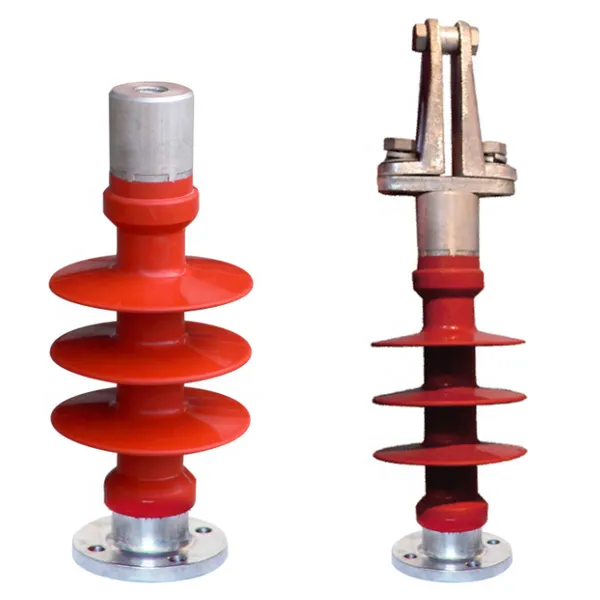

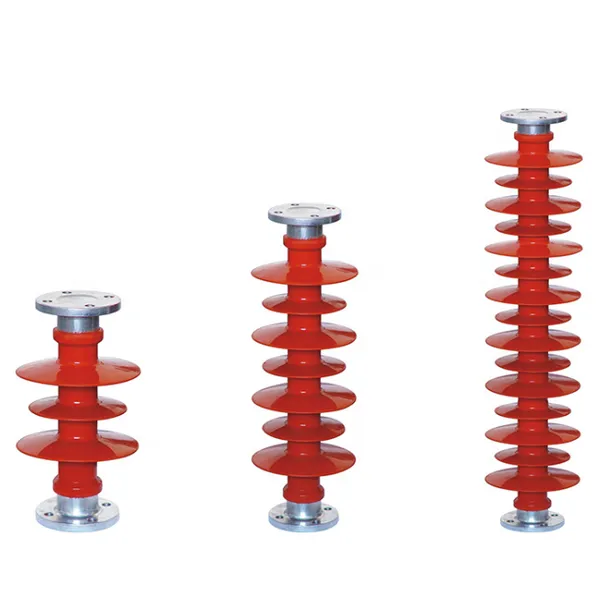

Help CenterComposite Pillar Insulators Rated 12KV to 252KV for GIS and AIS Switchgear
Product Spotlights
Related Products
-
12KV to 252KV Composite Pillar Insulator Range With Full Product DocumentationUS$ 9.35 - 15.36MOQ: 10 Pieces -
BMC SM20 SM25 SM30 SM40 Busbar Insulators for Electrical Panel InstallationsUS$ 0.25MOQ: 1000 Units
-
BMC Insulators for Busbars - SM Series (SM20, SM25, SM30, SM40) Low VoltageUS$ 0.25MOQ: 1000 Units
-
BMC Busbar Insulators SM Series for Industrial Electrical Distribution SystemsUS$ 0.25MOQ: 1000 Units
-
Round Post Busbar Insulators SM20 SM25 SM30 SM40 - BMC Material, Low VoltageUS$ 0.25MOQ: 1000 Units
As a professional manufacturer with ISO9001 certified quality management, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing high-performance composite pillar insulators for the global power transmission and distribution industry. Our insulators, rated from 12KV to 252KV, are engineered to provide reliable insulation and mechanical support within Gas Insulated Switchgear (GIS) and Air Insulated Switchgear (AIS), ensuring the safety and stability of high-voltage electrical systems. With an annual export value reflecting our international reach across markets from North America to Southeast Asia, we combine advanced materials, precise manufacturing, and rigorous testing to deliver components that meet the demanding requirements of modern switchgear.
Our composite pillar insulators are designed to offer significant advantages over traditional alternatives. The core value lies in their enhanced performance and durability.
- Material Superiority: Utilizing high-grade silicon rubber or epoxy resin composites, our insulators exhibit excellent dielectric strength, corrosion resistance, and weatherability. This makes them suitable for harsh environments where porcelain or glass insulators might fail.
- Lightweight Design: Composite materials significantly reduce the weight of the insulator compared to ceramic types, easing installation, handling, and reducing structural load on the switchgear assembly.
- High Mechanical Strength: Designed to withstand significant mechanical loads, including bending moments and compressive forces, ensuring long-term structural integrity within the switchgear.
- Customizable Configuration: We offer insulators with various flange designs, bolt patterns, and height options to fit specific GIS or AIS manufacturer specifications.
- Broad Voltage Range Coverage: Our product line comprehensively covers medium to extra-high voltage applications from 12KV up to 252KV, providing a one-stop solution for many project needs.
The technical specifications of our composite pillar insulators are tailored to ensure compatibility and performance. Key parameters include:
| Parameter | Typical Range / Specification |
|---|---|
| Rated Voltage (kV) | 12, 24, 36, 72.5, 126, 145, 170, 252 |
| Power Frequency Dry Withstand Voltage (kV) | Values correspond to rated voltage, available upon request |
| Impulse Withstand Voltage (kV, peak) | Values correspond to rated voltage, available upon request |
| Bending Moment Strength (kN·m) | Customizable based on design (e.g., 5, 10, 20) |
| Height / Length (mm) | Customizable to match switchgear layout |
| Flange Diameter / Bolt Pattern | Standard or custom designs available |
| Operating Temperature Range (°C) | -40 to +70 (standard), wider ranges customizable |
For our clients, these insulators translate into tangible benefits: reduced maintenance costs due to superior corrosion resistance, enhanced system reliability through stable insulation performance, easier and safer installation thanks to lightweight construction, and design flexibility for integrating into new or existing switchgear projects. Whether for utility substations, industrial plants, or renewable energy integration points, our products contribute to a safer and more efficient power grid.
Trust in Jinhua Dika is built on a solid foundation. Our ISO9001 certification underpins a consistent and controlled manufacturing process. With 11-50 dedicated employees, we maintain close oversight on quality. Our experience serving diverse markets from North America and Western Europe to Southeast Asia and Africa through major ports like Shanghai, Tianjin, Guangzhou, and Ningbo demonstrates our capability to meet international standards and logistics requirements. This global footprint, coupled with our focus on high-voltage insulation components, makes us a reliable partner for switchgear manufacturers and electrical project contractors seeking durable, high-performance composite pillar insulators. We encourage you to contact us with your specific voltage rating and configuration requirements to explore how our products can enhance your switchgear solutions.
Frequently Asked Questions (FAQ)
Q1: What are the main advantages of composite insulators over porcelain ones for GIS/AIS?
A: Composite insulators offer superior resistance to cracking and shattering, better performance in polluted or humid environments due to hydrophobic surfaces, significantly lighter weight for easier handling, and often better seismic resistance.
Q2: Can these insulators be customized for specific switchgear models?
A: Yes. As a manufacturer, we frequently work with clients to customize the insulator's height, flange dimensions, bolt hole pattern, and sometimes even the color to match OEM specifications or retrofit projects.
Q3: How is the quality control process ensured for such high-voltage components?
A: Our production is governed by an ISO9001 quality management system. Each batch undergoes rigorous tests, including checks for dimensional accuracy, visual defects, and electrical performance tests like power frequency withstand voltage tests, to ensure they meet the required standards.
Q4: What is the typical delivery lead time for standard and custom orders?
A: Lead times vary based on order complexity and volume. Standard rated products may have shorter lead times, while fully customized designs require additional engineering and production time. Specific timelines can be provided upon request.
Q5: Are these insulators suitable for both indoor and outdoor switchgear applications?
A: The composite material used provides excellent weatherability, making our insulators suitable for outdoor AIS applications. For GIS, which is typically enclosed, they perform reliably in the controlled internal environment. Material formulations can be adjusted for extreme conditions.
Q6: Do you provide technical drawings or datasheets for the insulators?
A: Yes. We provide detailed technical datasheets including electrical and mechanical specifications, and can supply 2D/3D drawings for custom designs to facilitate your integration process.
Q7: What packaging is used to ensure safe transportation of these insulators?
A: We use robust packaging designed to protect the insulator from mechanical shock and environmental exposure during shipping. Options include wooden crates, padded cardboard boxes, or palletized loads, depending on size and quantity.
Q8: Can you assist with the installation or provide installation guidelines?
A: We provide comprehensive installation manuals and guidelines with our products. For complex projects, our technical team is available to offer support and advice remotely to ensure correct installation.
