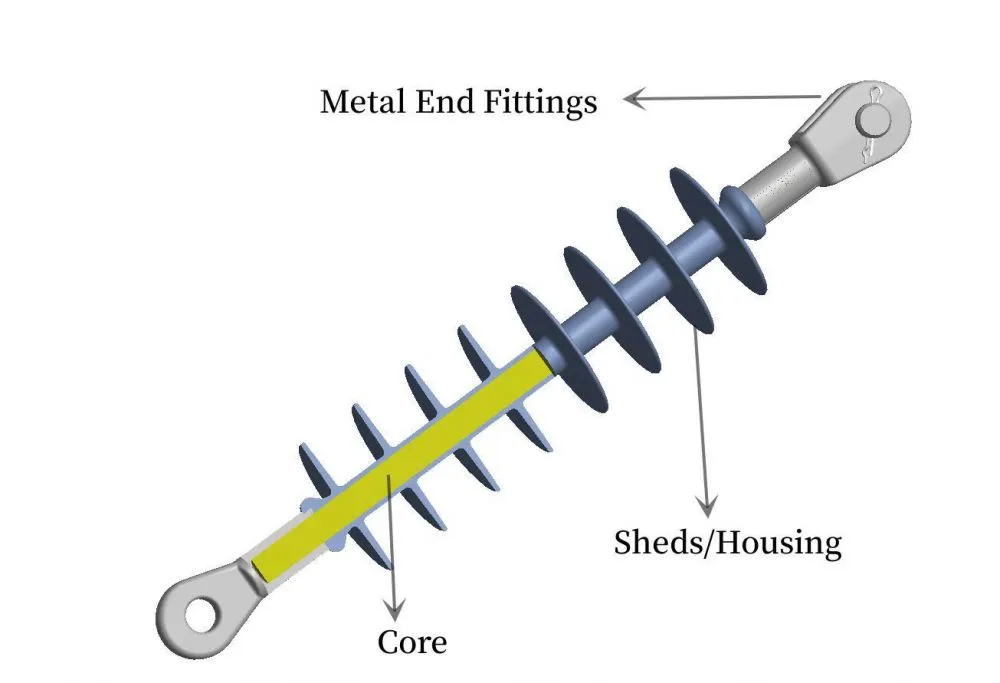

As a professional manufacturer with ISO9001 certification, Jinhua Dika Electrical Equipment Co., Ltd. proudly presents our premium Suspension Long Rod Insulator. Designed for reliability in demanding power transmission applications, this insulator combines a high-strength fiberglass reinforced plastic (FRP) rod with a high-temperature vulcanized (HTV) silicone rubber housing. Our commitment to quality is backed by a 10-Year Performance Warranty, offering you long-term peace of mind and reduced lifecycle costs for your grid infrastructure projects.
Engineered for superior performance, our insulators are trusted by utilities and contractors across diverse markets including North America, South America, Europe, and Southeast Asia. With an annual export value demonstrating our global reach, we ensure every unit meets stringent international standards for mechanical strength, electrical insulation, and environmental durability.
Core Product Features & Technical Advantages:
- Exceptional Durability: The composite design offers excellent resistance to pollution, UV radiation, and harsh weather conditions, significantly outperforming traditional porcelain or glass insulators in contaminated environments.
- High Mechanical Strength-to-Weight Ratio: The FRP core provides high tensile strength while keeping the overall weight low, simplifying transportation, handling, and installation, which reduces labor costs.

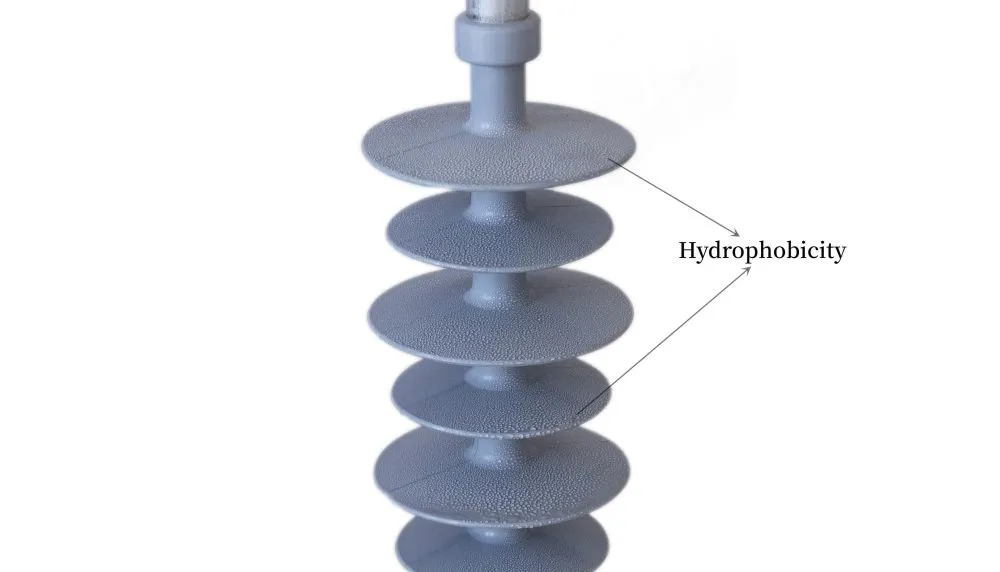

- Superior Hydrophobicity: The silicone rubber housing maintains its water-repellent properties over time, minimizing the risk of flashover under wet or polluted conditions and enhancing line reliability.
- Vandalism & Impact Resistance: The composite structure is less prone to shattering compared to brittle materials, offering improved security and reduced maintenance needs.
- Long Service Life & Warranty: Backed by our 10-year warranty, these insulators are designed for a service life exceeding 30 years, providing excellent long-term value and asset protection.
Technical Specifications & Configurations:
Our Suspension Long Rod Insulators are customizable to meet specific project requirements. Below are typical specifications available:
| Parameter | Specification / Options | Remarks |
|---|---|---|
| Rated Voltage | 66kV, 110kV, 220kV, 500kV | Custom designs available for other voltage levels |
| Mechanical Failing Load (MFL) | 70kN, 120kN, 160kN, 210kN | Standard and higher ratings available |
| Creepage Distance | From 1600mm to 4500mm+ | Tailored based on pollution severity |
| Structual Height | Approx. 1400mm to 3500mm | Depends on voltage and creepage requirements |
| End Fitting | Ball & Socket, Clevis, Y-Clevis | Hot-dip galvanized steel, corrosion resistant |
| Housing Material | High-Temperature Vulcanized (HTV) Silicone Rubber | Provides stable hydrophobicity and tracking resistance |
Benefits for Your Project:
- Reduced Lifetime Costs: Lower maintenance, cleaning, and replacement frequency compared to traditional insulators translates to significant savings.
- Enhanced Grid Reliability: Superior pollution flashover performance minimizes outages, ensuring stable power delivery.
- Easier & Safer Installation: Lightweight design allows for faster stringing and reduces risk during installation.
- Global Compliance: Products are designed to meet IEC, ANSI, and other regional standards, suitable for projects worldwide.
- Flexible Supply Chain: We ship from major ports like Shanghai, Tianjin, Guangzhou, and Ningbo, ensuring timely delivery to your location.
Frequently Asked Questions (FAQ)
-
What does the 10-year warranty cover?
Our warranty covers defects in materials and workmanship under normal service conditions. It guarantees the insulator will perform according to its specified electrical and mechanical ratings for ten years from the date of shipment. -
How does this insulator perform in coastal or heavily polluted areas?
The silicone rubber housing offers excellent hydrophobicity and pollution resistance. The creepage distance can be customized to a higher level specifically for such severe environments, ensuring reliable performance. -
Can you provide insulators for a specific mechanical load requirement, like 210kN?
Yes. We manufacture insulators with a wide range of Mechanical Failing Load (MFL) ratings. Please provide your specific load requirement, and we can supply a suitable product. -
What are the main differences between your composite long rod and traditional porcelain string insulators?
Composite insulators are lighter, more resistant to vandalism and impact, perform better in polluted conditions, and generally require less maintenance. They also have a higher strength-to-weight ratio. -
Do you provide grading rings or arcing horns with the insulator?
Grading rings and arcing horns are available as optional accessories. They can be supplied as part of a complete insulator assembly based on your system voltage and design requirements. -
What standards do your products comply with?
Our insulators are designed and tested in compliance with international standards such as IEC 61109 and relevant ANSI standards. Specific test reports can be provided upon request. -
What is the typical lead time for an order?
Lead time depends on order quantity and specifications. For standard configurations, it is typically 4-6 weeks. We can discuss expedited options if needed. -
Can you provide a sample for testing before a bulk order?
Yes, we can arrange sample shipments for qualification testing. Please contact us to discuss sample requirements and logistics.
Choose Jinhua Dika as your reliable partner for high-voltage insulation solutions. Supported by our ISO9001 certified manufacturing processes and a dedicated team of 11-50 professionals, we consistently deliver products that meet the expectations of a global clientele across six continents. Our substantial annual export volume is a testament to the trust placed in our quality and service.
Invest in the longevity and reliability of your transmission assets with our warranted Suspension Long Rod Insulators. Contact us today to discuss your project specifications, request a detailed quotation, or to learn more about how our products can benefit your next power infrastructure development.
