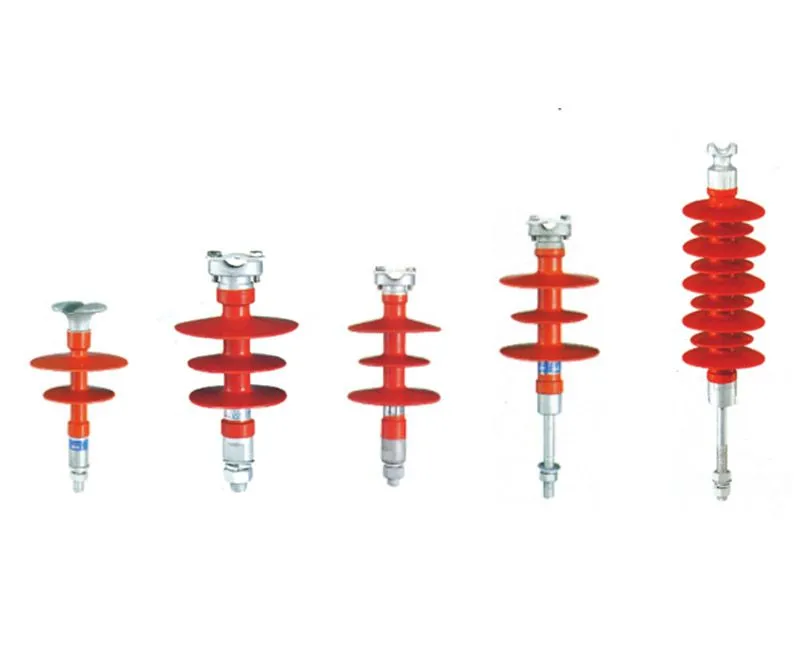

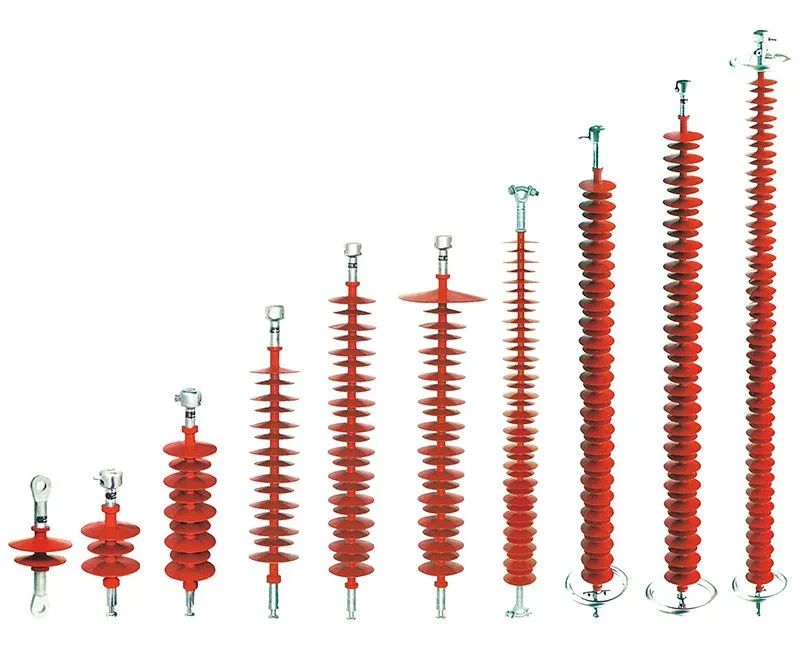

As a leading manufacturer in the electrical insulation industry, Jinhua Dika Electrical Equipment Co., Ltd. is proud to present our high-performance 11kV 10kN Silicone Rubber Composite Polymer Pin Insulator. Engineered for reliability in modern distribution networks, this insulator combines advanced material science with robust mechanical design to offer a superior alternative to traditional porcelain and glass types. With over a decade of experience and an annual export value exceeding US$1 million, we understand the critical need for components that ensure grid stability and reduce maintenance costs. Our product is specifically designed to withstand harsh environmental conditions while providing excellent electrical insulation, making it an optimal choice for utilities and contractors worldwide.

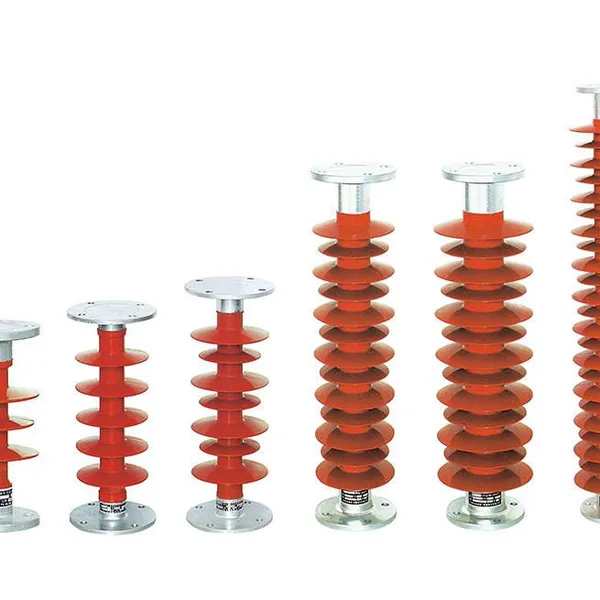

This composite polymer insulator is built with a focus on longevity and performance. Its core advantages stem from the synergistic combination of a high-strength fiberglass reinforced epoxy (FRP) rod and a high-temperature vulcanized (HTV) silicone rubber housing. This design addresses key challenges in distribution line management.
- Superior Hydrophobicity & Pollution Performance: The silicone rubber housing possesses excellent hydrophobic properties, meaning it repels water. This causes moisture to bead up and roll off the surface rather than forming a continuous conductive film. This characteristic is crucial for maintaining insulation integrity in coastal, industrial, or heavily polluted areas, significantly reducing the risk of flashovers.
- High Mechanical Strength with Lightweight Design: With a specified cantilever strength of 10kN, the insulator provides reliable mechanical support for conductors. Despite this strength, the composite polymer construction makes it significantly lighter than equivalent porcelain pin insulators. This reduces the structural load on poles and cross-arms, simplifies handling during installation, and lowers transportation costs.
- Vandalism and Impact Resistance: The polymer housing is highly resistant to impact damage from tools, stones, or gunshots. Unlike brittle porcelain, it does not shatter upon impact, which enhances the safety of field personnel and the public, and prevents catastrophic failure from minor incidents.
- Excellent UV and Weather Resistance: The formulation of the silicone rubber includes UV stabilizers and anti-tracking agents, ensuring long-term performance without significant degradation from sunlight, ozone, or temperature cycling from -50°C to +50°C.
- Easy Installation and Maintenance: The lightweight nature simplifies manual installation. Furthermore, the hydrophobic surface is self-cleaning to a large extent; contaminants like dust and salt are less likely to adhere firmly, and rain naturally washes them away. This translates to lower lifetime maintenance costs compared to insulators that require frequent cleaning.
The technical specifications of our 11kV pin insulator are designed to meet international standards and adapt to various project requirements.
| Parameter | Specification / Value |
|---|---|
| System Voltage | 11 kV (Suitable for 20kV & 33kV systems with design adjustment) |
| Cantilever Failing Load | 10 kN (Minimum) |
| Rated Lightning Impulse Withstand Voltage | 125 kV |
| Power Frequency Wet Withstand Voltage (1 min) | 30 kV |
| Creepage Distance | 280 mm (Standard for Pollution Level II), customizable up to 450+ mm for severe conditions |
| Leakage Distance | Approx. 20-25 mm/kV, depending on design |
| Core Rod Diameter | 18 mm (Fiberglass Reinforced Epoxy) |
| Total Length | Approximately 280-320 mm (varies by creepage design) |
| Thread Specification (Pin) | M16, M20, or as per customer drawing |
For clients, the benefits are clear and tangible. Reduced Total Cost of Ownership (TCO) is a primary advantage, achieved through lower initial installation costs (due to lightweight design), minimal maintenance needs, and a longer service life. The enhanced safety and reliability of the grid are improved due to superior pollution performance and non-brittle failure mode. Finally, the product offers design flexibility; we can adjust creepage distance, color, and connection types to suit specific regional standards and environmental challenges, from the deserts of the Middle East to the humid climates of Southeast Asia.
Jinhua Dika Electrical Equipment operates a certified ISO9001 quality management system, ensuring consistent product quality from raw material inspection to final shipment. Our products have gained trust in diverse markets across North America, South America, Eastern Europe, Southeast Asia, Africa, and Oceania. We support our global clientele with efficient logistics, offering shipment from major ports including Shanghai, Tianjin, Guangzhou, and Ningbo. When you choose our 11kV Silicone Rubber Composite Pin Insulator, you are not just purchasing a component; you are investing in a solution backed by a dedicated team of 11-50 professionals committed to supporting your project's success. Contact us today to discuss your specifications, request samples, or get a detailed quotation for your distribution line upgrade or new construction project.
Frequently Asked Questions (FAQ)
-
Q: How does the silicone rubber housing perform in extreme heat or cold?
A: The High-Temperature Vulcanized (HTV) silicone rubber is formulated for a wide operating temperature range, typically from -50°C to +50°C, maintaining its flexibility and hydrophobic properties without cracking or becoming brittle. -
Q: What is the expected service life of this composite insulator?
A: While service life depends heavily on the specific operating environment, well-manufactured silicone rubber composite insulators have a demonstrated service life of 25-30 years or more, often outlasting the structures they are mounted on. -
Q: Can you provide insulators for voltages other than 11kV?
A: Yes. While this model is optimized for 11kV distribution, we manufacture a full range of pin, suspension, and line post insulators for voltages from 10kV up to 33kV for distribution applications. Custom designs are available upon request. -
Q: How do I determine the correct creepage distance for my project?
A: The required creepage distance is determined by the local pollution level (as per IEC 60815 or similar standards). We can advise on the standard classification (I to IV) and provide insulators with the appropriate creepage, from 280mm for light pollution to over 450mm for heavy industrial or coastal areas. -
Q: Is the 10kN mechanical strength sufficient for my line?
A: A 10kN rating is a standard and robust specification for 11kV distribution lines, suitable for most conductor sizes and wind/ice loading zones. For areas with exceptional ice loads or larger conductors, we can provide units with higher mechanical ratings. -
Q: What quality control tests do you perform?
A: Our quality control includes routine tests on every production batch, such as visual inspection, dimensional checks, and mechanical load tests (proof load). Sample units from each batch undergo type tests including power frequency withstand, impulse withstand, and temperature cycle tests in accordance with IEC 60383. -
Q: Do you offer different colors besides brown?
A: Brown is the standard color for easy identification and UV stability. However, grey and black are common optional colors available. Custom colors can be discussed for large volume orders. -
Q: What is the lead time for a standard order?
A: For standard specification orders, the lead time is typically 15-30 days after order confirmation. This can vary based on order quantity and specific customization requirements.
