35kV Outdoor Cable Termination Kit Supplied With Detailed Installation Manual

35kV Outdoor Cable Termination Kit Supplied With Detailed Installation Manual thumbnail-3

35kV Outdoor Cable Termination Kit Supplied With Detailed Installation Manual thumbnail-4

35kV Outdoor Cable Termination Kit Supplied With Detailed Installation Manual photo-1

35kV Outdoor Cable Termination Kit Supplied With Detailed Installation Manual photo-2

35kV Outdoor Cable Termination Kit Supplied With Detailed Installation Manual photo-3

35kV Outdoor Cable Termination Kit Supplied With Detailed Installation Manual photo-4

Product Spotlights

A complete 35kV outdoor cable termination kit featuring robust environmental sealing and superior dielectric performance for reliable medium-voltage connections. Includes a detailed installation manual for error-proof setup. Offers wide cable compatibility, exceptional durability across extreme temperatures, and is backed by ISO9001-certified manufacturing. Ideal for utilities and industrial projects seeking to enhance grid reliability and safety.

US$ 16 ≥10 Units

Key Specifications

Get Latest Price

Application:

Other, Outdoor cable termination

Rated Voltage:

35kV

Configuration:

Complete kit with detailed manual

Contact Supplier Request Quote Chat Now

Jinhua Dika Electrical Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application Other, Outdoor cable termination

Rated Voltage 35kV

Configuration Complete kit with detailed manual

Material Silicone rubber or EPDM (specify upon request)

Installation Type Cold shrink or heat shrink (customizable)

Compatible Cable Type XLPE or PILC cable

Sealing System Multi-layer stress control and moisture seal

Operating Temperature Range -50°C to +90°C

Standards IEC, IEEE, or GB standards compliant

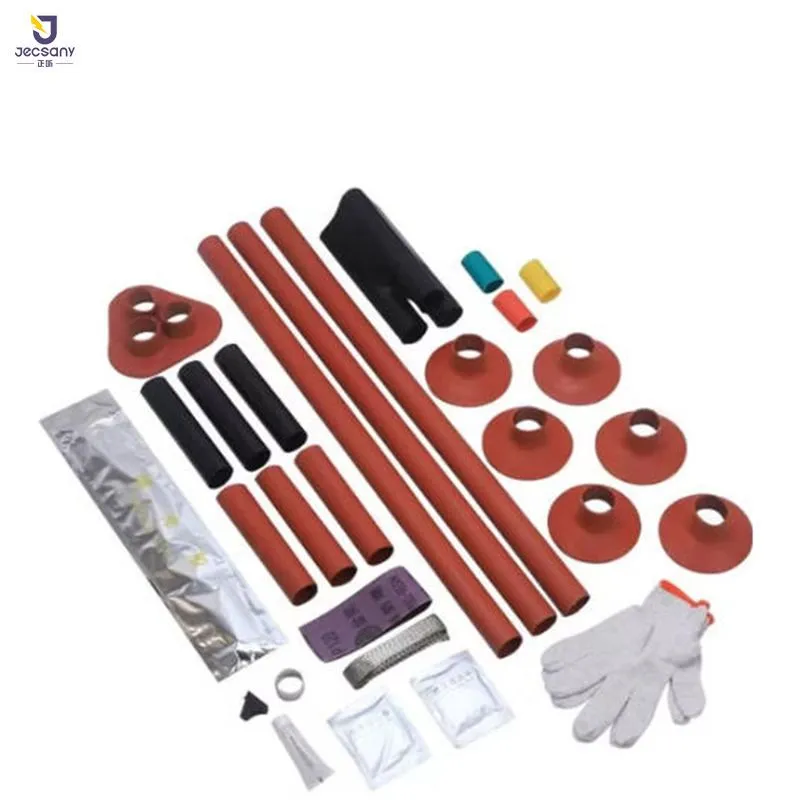

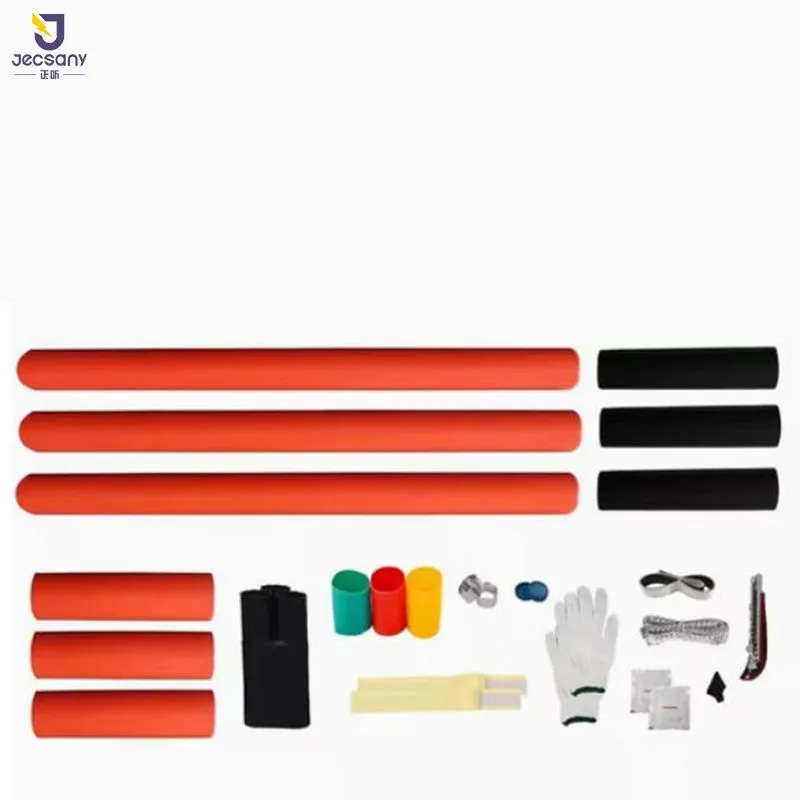

Included Components Termination body, stress cone, sealing tapes, connectors

As a specialized manufacturer of high-voltage electrical equipment, Jinhua Dika Electrical Equipment Co., Ltd. is proud to present our professional-grade 35kV Outdoor Cable Termination Kit. Designed for reliability and ease of installation in demanding environments, this kit provides a complete solution for sealing and terminating medium-voltage power cables, ensuring long-term system integrity and safety. Our commitment to quality, backed by ISO9001 certification, means we deliver products that meet the rigorous demands of the global power distribution and transmission industry. This termination kit is engineered to withstand harsh outdoor conditions, from extreme temperatures to UV exposure and moisture, making it a trusted choice for utilities, industrial plants, and renewable energy projects worldwide.

Core Product Features and Technical Advantages:

Superior Dielectric Performance: The termination utilizes advanced stress control geometry and high-grade insulating materials to effectively manage the electrical field at the cable end. This design prevents partial discharges and ensures a stable, corona-free operation throughout its service life, which is critical for 35kV systems.
Robust Environmental Sealing: A multi-layer sealing system is at the heart of this kit. It typically includes a primary moisture barrier, a semi-conductive layer for stress relief, and an outer weathershed that provides creepage distance and protection against tracking. This comprehensive sealing guards against moisture ingress, dust, and chemical contaminants.
Simplified, Error-Resistant Installation: Supplied with a detailed, step-by-step installation manual, the kit is designed for straightforward application. Whether using cold-shrink or heat-shrink technology (options available), the process is streamlined to reduce installation time and minimize the potential for human error, a significant factor in termination failure.
Wide Compatibility and Customization: The kit can be configured to terminate various 35kV cable types, including cross-linked polyethylene (XLPE) and paper-insulated lead-covered (PILC) cables, across a range of conductor sizes. Custom configurations for specific cable diameters or unusual application requirements are available upon request.
Exceptional Durability: The housing materials, such as silicone rubber or ethylene propylene diene monomer (EPDM), are selected for their excellent weatherability, ozone resistance, and flexibility across a broad temperature range from -50°C to +90°C, ensuring performance in diverse climates from the Arctic to the tropics.

Technical Specifications Overview:
The following table outlines key parameters for a standard kit configuration. Specifications may vary based on the selected cable type and installation method.

Parameter	Specification / Value
Rated System Voltage	35 kV
Rated Lightning Impulse Withstand Voltage	200 kV
Power Frequency Withstand Voltage (1 min)	95 kV
Tracking Resistance	≥ 1A3.5 (IEC 60587)
Flame Retardancy	Self-extinguishing (material dependent)
Minimum Bending Radius (during installation)	As per cable manufacturer's specification

Benefits for Your Project:

Enhanced System Reliability: Reduces the risk of unexpected outages caused by cable termination failures, leading to improved network availability and reduced maintenance costs.
Reduced Lifecycle Costs: The durable design and high-quality materials extend the service interval, lowering the total cost of ownership compared to less robust alternatives.
Operational Safety: Provides a safe, insulated, and grounded termination point, protecting personnel and equipment from electrical hazards.
Project Flexibility: The availability of different installation methods (cold shrink or heat shrink) allows you to choose the best option for your site conditions, available tools, and crew expertise.

Trust in a product backed by a manufacturer with a proven global footprint. Jinhua Dika Electrical Equipment serves markets across North America, South America, Europe, Asia, Africa, and Oceania, with an annual export value reflecting consistent international demand. Our products are shipped from major Chinese ports like Shanghai, Tianjin, Guangzhou, and Ningbo, ensuring efficient logistics. The combination of our ISO9001-certified manufacturing processes, dedicated team of 11-50 professionals, and extensive field experience in diverse climates ensures that this 35kV Outdoor Cable Termination Kit is not just a component, but a reliable long-term investment for your power infrastructure. Contact us today to discuss your specific requirements and receive a detailed quotation.

Frequently Asked Questions (FAQ):

Q: Is this termination kit suitable for both copper and aluminum conductors?
A: Yes, the kit is designed to be compatible with both copper and aluminum conductors of standard 35kV cables. The connection method within the kit (e.g., compression connector) will be appropriate for the conductor material specified in your order.
Q: What is the main difference between the cold-shrink and heat-shrink versions?
A: A cold-shrink termination uses a pre-expanded rubber tube that shrinks onto the cable when a supporting core is removed, requiring no heat source. A heat-shrink version uses a polymer tube that shrinks when heated with a torch or hot air tool. Cold-shrink is often faster and requires fewer tools, while heat-shrink can offer a very robust seal and is a traditional, well-understood method.
Q: How detailed is the included installation manual?
A: The manual provides a comprehensive, step-by-step guide with clear illustrations. It covers cable preparation, component placement, shrinking procedures, and final inspection checks. It is designed to be used by qualified electricians and follows industry-standard practices.
Q: Can this termination be used in direct burial applications?
A: No, this specific product is designed for outdoor aerial or pole-mounted applications. For direct burial, a different type of sealing system, such as a buried cable joint or a specialized burial termination, would be required. Please inquire about our solutions for underground applications.
Q: What is the expected service life of this termination?
A: When installed correctly on a sound cable and operated within its specified parameters, the termination can have a service life exceeding 30 years. The longevity is primarily dependent on the environmental conditions and the quality of the initial installation.
Q: Do you provide installation training or on-site support?
A> While the detailed manual is sufficient for trained personnel, we can arrange for technical documentation, installation videos, and, upon request, discuss the possibility of on-site technical support or training sessions for large projects.
Q: Are spare parts or individual components available for purchase separately?
A: Yes, most components within the kit, such as specific sealing tapes or connectors, can be supplied as spare parts. This is useful for maintenance or repair scenarios. Please contact our sales team with the kit model number for spare part inquiries.
Q: How do I determine the correct kit for my specific cable?
A> You will need to provide the cable manufacturer's data, including the exact conductor size (cross-sectional area), insulation diameter, and cable type (e.g., XLPE, 35kV). Our technical team will then recommend the appropriate kit model to ensure a perfect fit and optimal performance.
