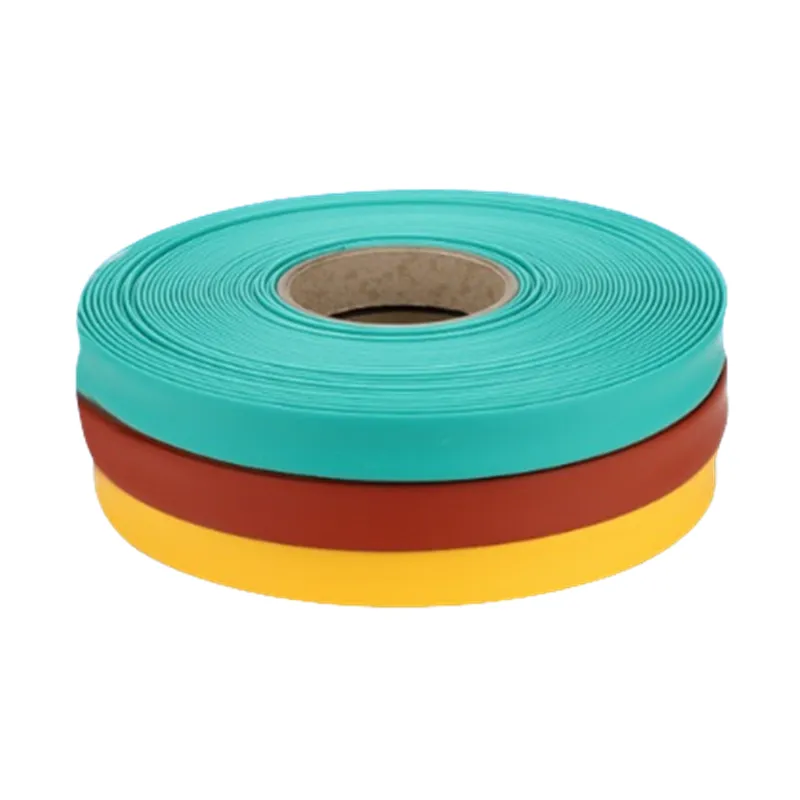

Help CenterHeat-Shrinkable Busbar Sleeves With Flame-Retardant Polyolefin Insulation
Product Spotlights
Related Products
-
Flame-Retardant Heat-Shrinkable Sleeves for Electrical Busbar ProtectionUS$ 33 - 43MOQ: 10 Meters -
Heat-Shrinkable Insulation Sleeves for Busbars in Switchgear AssemblyUS$ 33 - 43MOQ: 10 Meters
-
Industrial Busbar Insulation With Flame-Retardant Heat-Shrink SleevesUS$ 33 - 43MOQ: 10 Meters
-
Flame-Retardant Heat-Shrink Sleeves for Busbar Insulation 125°C RatedUS$ 33 - 43MOQ: 10 Meters
-
Flame-Retardant Heat-Shrinkable Busbar Sleeves UL 224 VW-1 RatedUS$ 33 - 43MOQ: 10 Meters
As a professional manufacturer with ISO9001 certification, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing high-performance electrical insulation solutions. Our Heat-Shrinkable Busbar Sleeves with Flame-Retardant Polyolefin Insulation are engineered to provide reliable, durable, and safe insulation for electrical busbars and connections in demanding environments. With an annual export value reaching US$1.5 million and a presence in global markets including North America, Europe, and Southeast Asia, we are committed to delivering products that meet the stringent requirements of the electrical industry.
These heat-shrink sleeves offer a robust combination of excellent electrical insulation, superior mechanical protection, and outstanding flame retardancy. They are designed to simplify installation while ensuring long-term performance and safety for your electrical assemblies.
Key Features and Technical Advantages:
- Premium Flame-Retardant Polyolefin Material: Formulated to inhibit flame propagation, providing enhanced safety and meeting common industry flame ratings.
- Excellent Dielectric Strength: Provides high-voltage insulation to protect against short circuits and electrical faults.
- High Shrink Ratio: Available in standard ratios like 2:1, 3:1, and 4:1, allowing one sleeve size to fit a range of busbar dimensions, simplifying inventory.
- Wide Operating Temperature Range: Performs reliably from -55°C to +135°C, ensuring stability in both extreme cold and heat.
- Superior Environmental Sealing: Upon shrinking, the sleeve forms a tight, conformal seal that protects against moisture, dust, chemicals, and corrosion.
- Abrasion and Cut-Through Resistance: The tough polyolefin construction offers mechanical protection against physical damage.
Detailed Technical Specifications:
| Parameter | Typical Value / Description |
|---|---|
| Primary Material | Cross-Linked Flame-Retardant Polyolefin |
| Standard Shrink Ratios | 2:1, 3:1, 4:1 (Other ratios available upon request) |
| Continuous Operating Temperature | -55°C to +135°C |
| Flame Retardancy | Complies with UL 224 VW-1 / CSA FT1 test standards |
| Dielectric Strength | > 15 kV/mm |
| Volume Resistivity | > 1.0 x 10^14 Ω·cm |
| Standard Colors | Black, Red, Yellow, Green, Blue (Custom colors optional) |
| Common Applications | Power distribution busbars, switchgear, motor connections, battery packs, rail transit systems |
Benefits for Your Business:
- Enhanced Electrical Safety: Reduces the risk of arc faults and electrical fires with its reliable insulation and flame-retardant properties.
- Long-Term Reliability: Resists aging, UV exposure, and harsh chemicals, extending the service life of your electrical systems.
- Streamlined Installation: Easy to apply with a heat gun, reducing labor time and costs compared to traditional taping or potting methods.
- Professional Aesthetic Finish: Provides a clean, uniform, and color-coded appearance for better identification and maintenance.
- Versatility: Suitable for a wide range of industries including renewable energy, industrial automation, transportation, and data centers.

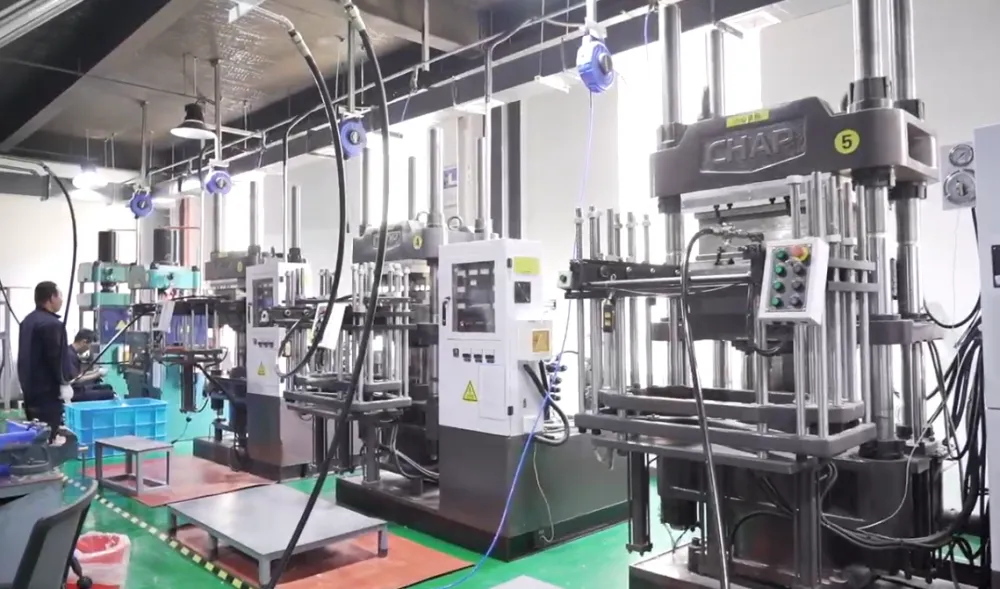

Backed by our ISO9001-certified manufacturing processes, every batch of our heat-shrinkable busbar sleeves undergoes strict quality control to ensure consistent performance. Our global logistics network, with major shipment ports in Shanghai, Tianjin, Guangzhou, and Ningbo, enables us to deliver orders efficiently to customers across North America, Europe, Asia, and beyond. With a dedicated team of 11-50 professionals, we combine manufacturing expertise with responsive customer service. Choose our flame-retardant busbar sleeves for a solution that prioritizes safety, durability, and value in your electrical insulation projects. Contact us today for samples, customized specifications, or a detailed quotation.
Frequently Asked Questions (FAQ)
-
Q: What is the main advantage of using heat-shrink sleeves over electrical tape for busbars?
A: Heat-shrink sleeves provide a uniform, seamless, and conformal seal that offers superior moisture and contaminant protection, better abrasion resistance, and a more professional finish compared to tape, which can unravel or degrade over time. -
Q: How do I select the correct size sleeve for my busbar?
A: Measure the largest dimension (diameter for round, perimeter for rectangular) of the busbar or connection point. Choose a sleeve with a pre-shrink inner diameter larger than this dimension. The shrink ratio (e.g., 3:1) indicates the sleeve will shrink to approximately one-third of its original size, forming a tight fit. -
Q: Are these sleeves suitable for outdoor applications?
A: Yes, the flame-retardant polyolefin material is designed to resist UV radiation, ozone, and a wide range of weather conditions, making it suitable for both indoor and outdoor use. -
Q: What heat source should be used for installation?
A: A standard industrial hot air gun (heat gun) is recommended. Torches are generally not advised as they can overheat and damage the material. The typical shrinking temperature range is between 120°C and 135°C. -
Q: Can these sleeves be printed with logos or part numbers?
A: Yes, custom printing is available upon request. This is useful for part identification, branding, or compliance labeling within your assemblies. -
Q: What is the meaning of the flame rating "VW-1"?
A: VW-1 is a stringent vertical wire flame test (Underwriters Laboratories standard). A material passing this test demonstrates its ability to self-extinguish quickly and not drip flaming particles, indicating a high level of flame retardancy. -
Q: Do you offer different levels of flame retardancy?
A: Our standard product offers flame retardancy equivalent to common industry standards. For projects requiring specific certifications (e.g., UL, CSA listings), please contact us to discuss custom formulations and testing. -
Q: What is the typical lead time for orders?
A: For standard products and colors, lead times are generally short. For large volumes or custom specifications, we provide accurate timelines upon order confirmation. Our multiple shipping ports help ensure timely delivery.
