Help CenterHydraulic Coconut Fiber Baler Machine Hemp Fiber Pineapple Leaf Fiber Compactor Machine
Product Spotlights
2.Product size and output can be customized
3. Customizable complete coconut shell fiber production line
4.Multiple materials can be baled into blocks, such as coconut fiber, straw, silage, etc
Related Products
-
Coconut Fiber Coir Plam Baling Machine Palm Fruit Fiber Jute Fiber Briquetting MachineUS$ 3200 - 3300MOQ: 1 Set -
Large Capacity Hydraulic Coconut Palm Jute Fiber Press Baling Machine EPCUS$ 3200 - 3300MOQ: 1 Set
-
Automatic Coconut Shell Fibe Sisal Fiber Vertical Baler Coconut Shell Fiber Block Making MachineNegotiableMOQ: 1 Set
-
Factory Price Hydraulic Baling Press Machine Coconut Fiber Palm Fiber Baling Machine EPCNegotiableMOQ: 1 Set
-
Full Automatic Fiber Process Baling Machine Coconut Fiber Compactor Baler EquipmentUS$ 3200 - 3300MOQ: 1 Set
PRODUCT OVERVIEW

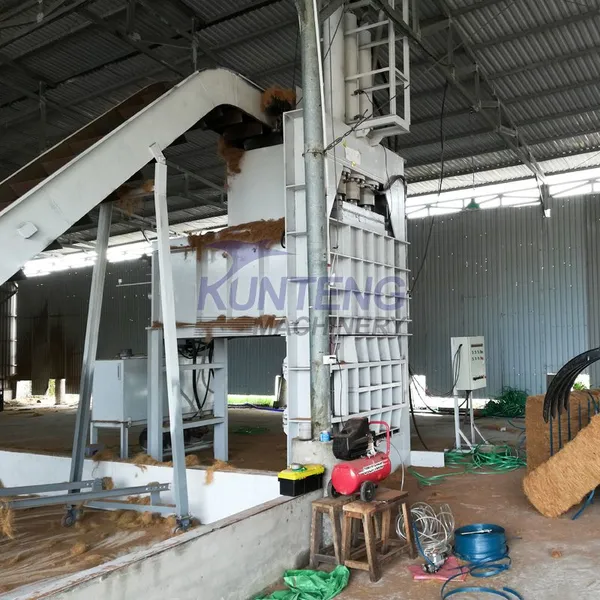

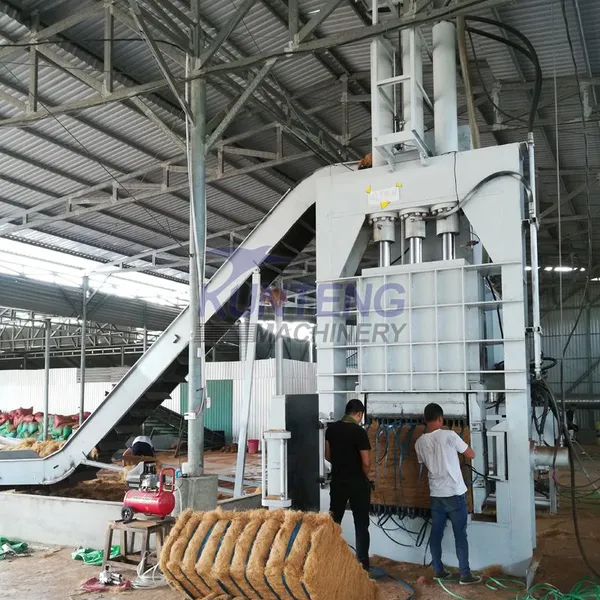

Coconut fiber brick machine is designed with large press force which is from 80 tons to 200 tons. This baler is built with high strength and oriented to facilities that handle recyclable wastes of high fibrous, high rebounding force, or high hardness. It is also a good baling solution for handling normal soft material when there is a demand for high bale density to optimize container loading.
Specification of the Coir Fiber Baling Machine:
Model |
Motor power |
Machine pressure |
Output capacity |
Bale size |
Bale weight |
Door opening method |
KTDB-125 |
11kw |
200KN |
2 bales per hour |
1120*420*900mm |
70kg |
Manual |
KTDB-125C |
11kw |
400KN |
4 bales per hour |
1120*420*900mm |
80kg |
Hydraulic switch door |
KTDB-160 |
18.5kw |
800KN |
2 bales per hour |
1120*420*900mm |
100kg |
Hydraulic switch door |
KTDB-220 |
18.5kw |
800KN |
4 bales per hour |
1120*420*900mm |
100kg |
Hydraulic switch door |
KTDB-250 |
18.5kw |
1000KN |
2 bales per hour |
1120*420*900mm |
120kg |
Hydraulic switch door |
KTDB-200W |
22kw |
2000KN |
6 bales per hour |
1120*420*900mm |
130kg |
Hydraulic switch door |
FACTORY CORNER&CUSTOMER VISIT
SHIPPING
COMPANY PROFILE
Kunten Machinery is located in Zhengzhou City, Henan Province, China, and we are a comprehensive enterprise integrating R&D, production, sales, and service. With independent R&D team, our own factory, and professional sales and service departments, we can manufacture high-quality machines and provide powerful technical support for our customers.
CERTIFICATIONSRELATED PRODUCTS
Kunteng low cost coconut fiber brick machine baling automatic press baling machine Philippines
Process description of coconut hust processing line
1. Defibering machine process coconut hust into coconut fiber and coconut peat.
2. Drum rotary screen separates coconut fiber and coconut peat.

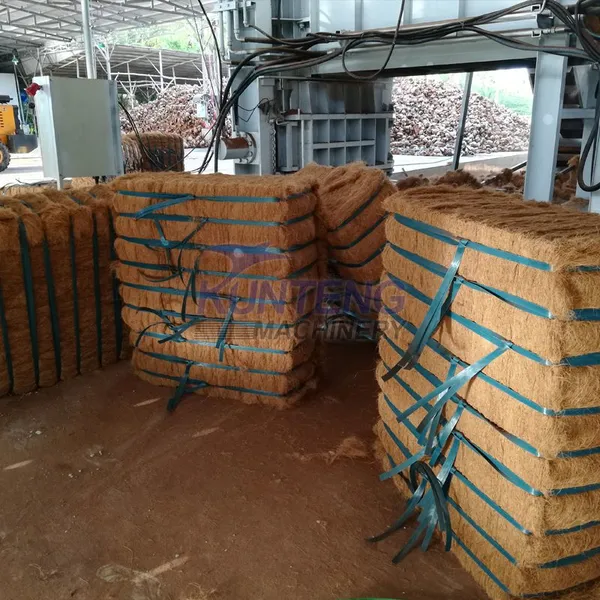

3. Coconut fibers are baled.
4. Coconut peat is desalted by the pool.
5. The desalted coconut peat is dehydrated by dehydrating machine.
6. Drying coconut peat by drum dryer.
7. Cocomut peat briquetting.
Defibering machine
The coconut coir fiber making machine is a device that can process coconut husk into fiber and peat. The raw materials are fed
into the feeding port of the defibering machine through a conveyor or manually. After the raw materials enter the machine, the
machine rotates at a high speed through the defibering machine shaft with multiple flying knives to beat coconut hust to make the
coconut fiber and peat.
Rotary screen
The rotary screen is mainly used to sieve the fiber and peat from the defibering machine. Because the material is evenly screened from the inside of the defibering machine, there will be a small amount of coconut peat inside the fiber. Therefore, further screening is required.
Dehydrating machine
The dehydrating machine system supporting process is unique, stable, and reliable. The triple equalization structure can make the materials spread more evenly on the top of the filter belt, and the filter cake pressed out has a better effect, bigger output, and lower moisture.
Rotary drum dryer
Dotary drum dryer is also called rotary dryer. The machine is mainly composed of rotary drum, lifting plate, driving device, supporting device, sealing devices, etc. The overall structure is reasonably designed, well-made, with high output, low energy consumption, and easy operation.
CUSTOMER CASE
Indonesia coconut husk production line site
Philippine coconut husk production line site
Nigeria coconut husk production line site
FAQ
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time?
A3: We will arrange for shipping in factory within 10 working days after receiving the advance payment. When there are Coconut Fiber Extracting Machine in stock, it will be shorter.
