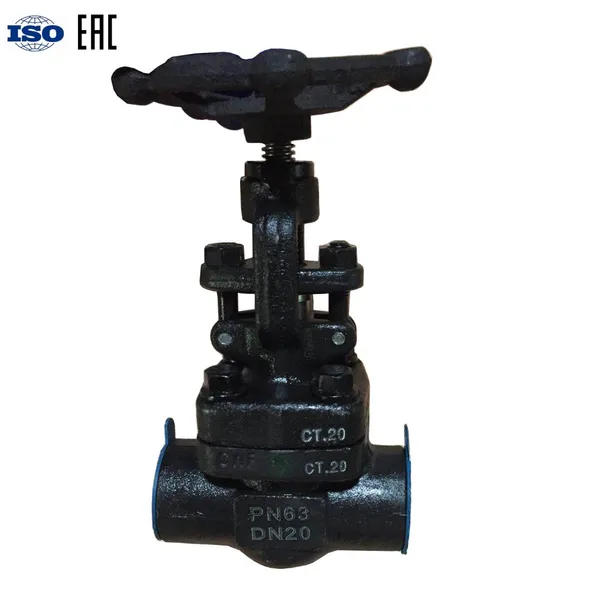

Help CenterFlanged API Forged Steel Gate Valve Heavy Duty Pipeline Gate Valve
Product Spotlights
Related Products
-
Threaded API Forged Steel Gate Valve Screw Connection Compact Gate ValveNegotiableMOQ: 1 Piece -
Rising Stem API Forged Steel Gate Valve Visual Indication Gate ValveNegotiableMOQ: 1 Piece
-
ANSI Rising Cast Steel WCB Flange High Pressure Gate ValveNegotiableMOQ: 100 Pieces
-
DIN F4 Flange Gate Valve Cast Iron Body DN50-600 Material GGG40 GG25 GGG50 Resilient Seat for Water Control ApplicationsNegotiableMOQ: 100 Pieces
-
Industrial Water Flowserve Control Valves With DIN F4 Flange PN10/PN16 Pressure Cast Iron ConstructionNegotiableMOQ: 100 Pieces
ANSI Cast steel Gate Valve is widely used in petroleum,chemical,natural gas,electric power,metallurgy ,pharmacy,building,water supply and other industries for three performances:availability,reliability and stability.All users rate our quality high.
This product is produced and designed according API standard with reliable sealing.
Forged steel Globe Valve standard:

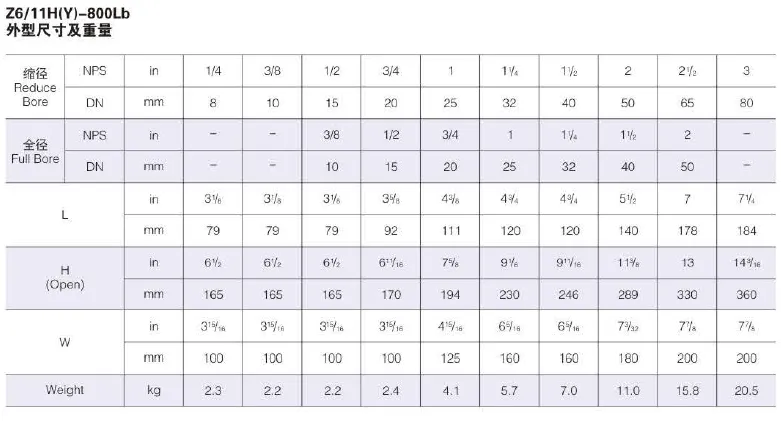

Production Size:1/2"~2".DN15~DN50
Pressure:150LB,800LB,1500LB,2500LB

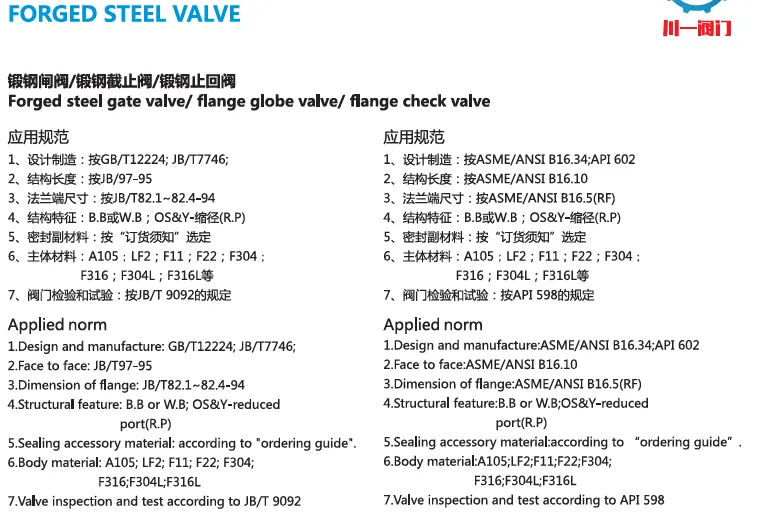

Design Standard:API602,ANSI
Face to Face:ASME B16.34
Flange Standard:ASME B16.10
Testing Standard:ASME B16.25
ANSI Cast steel Globe Valve Material of parts:
Body: ASTM A105,A105N,SS304,SS316,、F11、F22、F5、F9、F91、F51、F53
Bonnet: ASTM A105,A105N,SS304,SS316,、F11、F22、F5、F9、F91、F51、F53
Stem:2Cr13,SS304,SS316
Nut:A194 2H
Disc:2Cr13+STL
Gland:A276 410
Seat:1Cr13+STL
Packing:Graphite
Handwheel:A197
Product Details
Factory
Chengxin Valve .,located in the industrial estate of Wejiazhuang Towm,Longyao County, Hebei Province, is a successful company specilizing in manufacturing and selling cast-iron valves and castings. Our company was originally founded in 1993, and expanded into the lntegrity Valve .in 2005.With accurate market loclization,excellent quality and standard internal management, after several years'development, the company has become a fairly large-scale moderm enterprise and won a high reputation in valves and casting industry in China.
Our company has always upheld the principle that we operate by being honest and credible, and has always stuck to the strategy of development. Up to now, our company has already covered an area of more than 70,000 square meters, and has had a statff of over 400 including various types of engineering and technical personnel and senior management of more than 30 people, besides, the annual output of valves has reached over 1,000 tons.
Our company attaches great importance to the development of product species. At the beginning, our company had noly a few species and specifications.Through the research and development in recent years, the national standard has formed 30 series, more than 2000 specifications are also made, including gale valve, globe valve, check valve, ball valve, strainer, foot valve (0.25Mpa/1.0Mpa), balancing valve, butterfly valve and so on, the international standard are: DIN(German), ANSI(American), BS(British), Russian slandard and other products. And our products have been approved by customers at home and abroad,for they have the characteristics of flexible start and stop, good performance and long use and other good qualities.Our company has set up more than 100 sales outlets distributed in cities of all size in domestic market, and has initially formed a relalively complete sales and service network.Some products have been expored to more than many countries and regions including Russia, Pakistan, Korea, Vietnam, and Dubai, Africa and so on.
Our company has owned a set of coplete quality control system,for each working procedure from raw materials to finished product were run under 28 tests to ensure stable quality. In recent years,our conpany has invested more than 260 milion in building the modern physical and chemical laboratories,and purchasing the test and inspection equipment, eg the omnipoten tensile testing machine, ultrasonic thickness gauge, intelligent analyzer of three ele-ments,metallurgical microscope, high-temperature furnace, Brinell hard-meter instrumentand Luo hardness instrument,carbon-sulfur measure analyzer,etc. The well-provided testing equipment has ensured that the product quality meets standard requirements.
Our company has passed the authentication of ISO 9001:2008 quality management system and 14001:2004 environmental management system, and has received the Manufacturing License of Special Equipments of the People's Republic of China, besides, as a member of China General Machinery Valve Association, our company has the right to do import and export trade.
The enterprise is awarded the titles of the Famous Brand of Hebei Province, the Unit of Valuing Contracts and Keeping Promises, the Unit of Consumer' Satisfaction of Quality, Repulation and Service, the Trustworthy Products of Hebei Province, the Key Promotion Unit of Chinese Famous Brand, China Famous Brand, The First Choice Brand of National Project Building Materials, the Advanced Enterprise of Safe Production and Hebei famous brand and so on.
