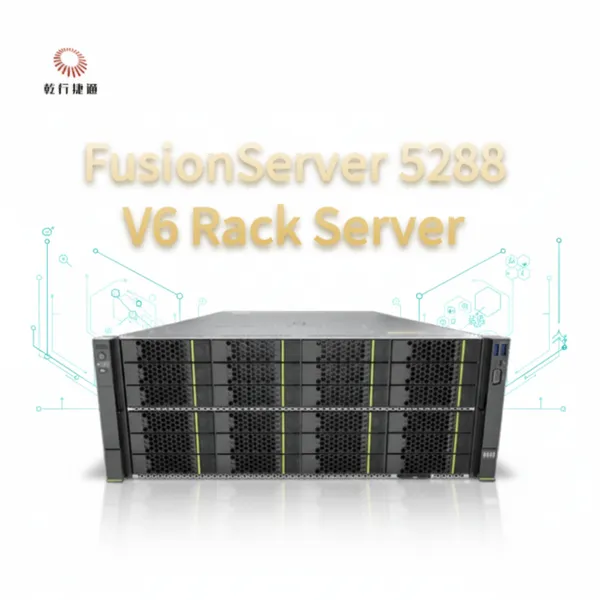

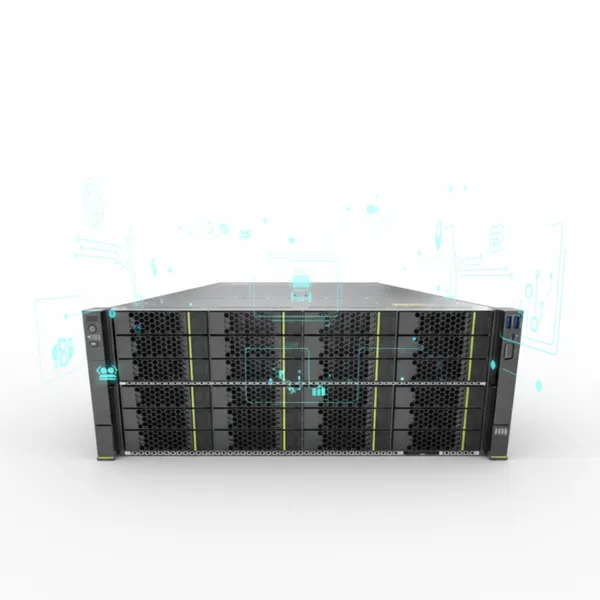

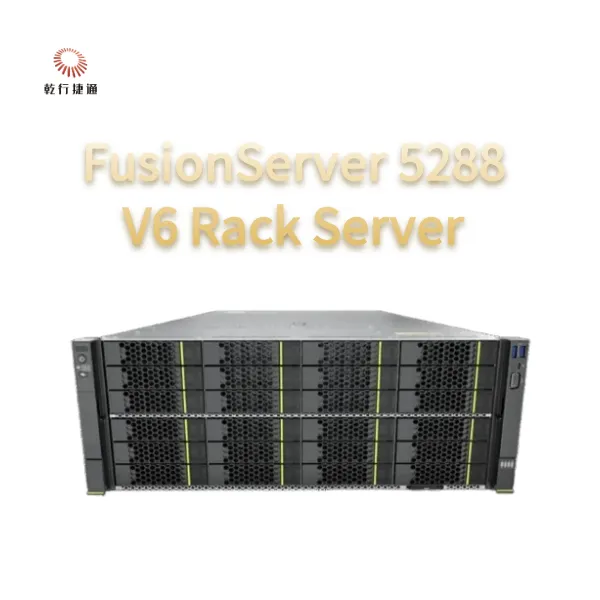

FusionServer 5288 V6 rack server
FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving. With its efficient design, FusionServer 5288 V6 ensures excellent computing performance and provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs. The 5288 V6 can be configured with two Intel Xeon scalable processor, 32 DDR4 DIMMs, and 44 3.5-inch + 4 NVMe SSDs in a 4 U space. Integrates patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and can be configured with FusionDirector full-lifecycle management software, effectively reducing OPEX and improving ROI.
Technical Specifications
| Specification Name | Specifications |
|---|---|
| Model | FusionServer 5288 V6 |
| Form Factor | 4U Rack Server |
| Processors | 1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series) , up to 270W |
| Chip Set | Intel® C621A |
| Memory | 32 DDR4 memory slots, up to 3200 MT/s; Up to 16 Intel® Optane TM Persistent Memory 200 Series, up to 3200MT/s |
| Local Storage |
Various hard disk configurations are supported. The hard disks are hot swappable: · 36 to 44 3.5-inch SAS/SATA HDDs and 4 NVMe SSDs · 24 x 3.5-inch SAS/SATA front hard disks · 4 3.5-inch SAS/SATA internal hard disks · 16 3.5-inch SAS/SATA hard disks and four 2.5-inch SAS/SATA/NVMe rear hard disks · 12 3.5-inch SAS/SATA disks and eight 2.5-inch rear hard disks (4 x 2.5" HDDs + 4 x 2.5" SAS/SATA/NVMe) Flash storage: · Dual M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 5, 50, 6, and 60, cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web-based remote configuration, and multiple network expansion capabilities |
| Network |
OCP 3.0 NIC The two FLEX I/O card slots support two OCP 3.0 NICs, which can be configured as required Supports multiple OCP 3.0 NICs Supports hot swap |
| PCIe Expansion | A maximum of 11 PCIe 4.0 slots, including one dedicated PCIe slot for the RAID controller card, two dedicated FLEX I/O slots for OPC3.0, and eight standard PCIe 4.0 slots |
| Fan | Four hot-swappable fans, supporting N+1 redundancy |
| Power Supply |
2 redundant hot-swappable PSUs are configured in 1+1 redundancy mode. The optional specifications are as follows: · 900W AC Platinum/Titanium power supply (Input: 100–240 V AC or 192–288 V DC) · 1500 W AC Platinum PSU · 1000 W (input: 100 V AC to 127 V AC) · 1500 W (input: 200–240 V AC or 192–288 V DC) · 2000 W AC Platinum PSU · 1800 W (input: 200–220 V AC or 192–200 V DC) · 2000 W (input: 220–240 V AC or 200–288 V DC) |
| Management |
· The BMC chip integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening · The BMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0. Provides a remote management interface based on HTML5/VNC KVM. Supports out-of-band management functions, such as monitoring, diagnosis, configuration, agentless, and remote control, simplifying management · FusionDirector management software can be used to provide advanced management features such as five intelligent features, implementing intelligent, automatic, visualized, and refined management throughout the lifecycle |
| Operating Systems | Microsoft Windows Server,SUSE Linux Enterprise Server,VMware ESXi,Red Hat Enterprise Linux,CentOS,Oracle Linux,Ubuntu,Debian,openEuler etc |
| Security Features | Security features such as power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection |
| Operating Temperature | Operating temperature: 5°C~40°C (41ºF~104ºF) (ASHARE Class A1/A2/A3) |
| Certifications | CE,UL,CCC,FCC,VCCI,RoHS etc |
| Installation Kit | L-shaped guide rails, retractable guide rails, and holding rails |
| Dimensions (H x W x D) | Chassis dimensions: 175 mm x 447 mm x 790 mm |
