Dell FusionServer 5298 V7 Rack Serve 8 Core Intel Processor，data Storage Server

Dell FusionServer 5298 V7 Rack Serve 8 Core Intel Processor，data Storage Server thumbnail-1
Dell FusionServer 5298 V7 Rack Serve 8 Core Intel Processor，data Storage Server thumbnail-2
Dell FusionServer 5298 V7 Rack Serve 8 Core Intel Processor，data Storage Server photo-1
Dell FusionServer 5298 V7 Rack Serve 8 Core Intel Processor，data Storage Server photo-2
Negotiable MOQ: 1 Combo (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Other
Processor Type:
Intel Xeon
Operating System:
Windows Server
Contact Supplier Request Quote Chat Now
Beijing Qianxing Jietong Technology Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Other
Processor Type Intel Xeon
Operating System Windows Server
Power Supply Single PSU
Storage Capacity >1TB
Instruction System CISC
Max. CPUs 1
Number of CPu Threads Other
Supporting Memory Capacity >1TB
System Architecture X86 Server
Network Connectivity 1GbE
Server Form Factor 4U
Management Interface BMC
Storage Type Hybrid Storage(Combination of HDDs and SSDs)
Form Factor 4U
RAM Capacity Other

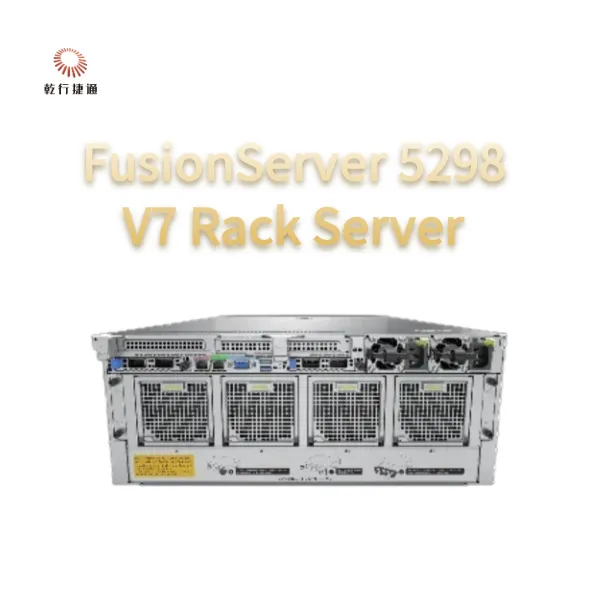

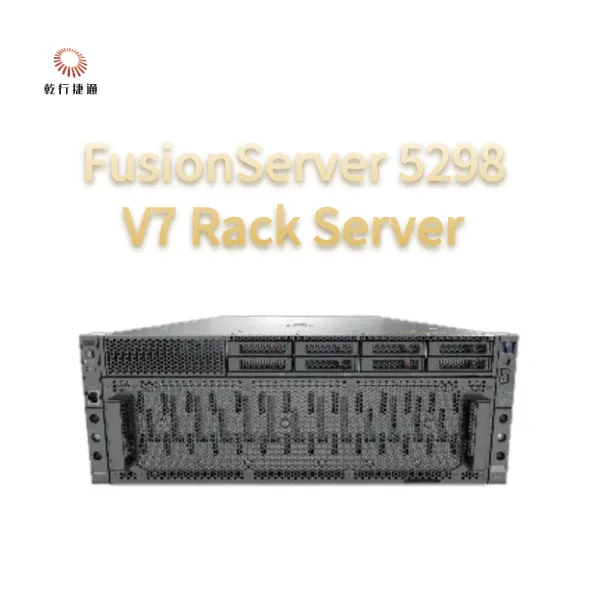

Rack Server FusionServer 5298 V7


Introduction

FusionServer 5298 V7 (5298 V7) is a versatile new-generation 4U 2-socket rack server tailor-made to meet the diverse needs of industries such as the Internet, telecoms, finance, and government enterprises. With its broad range of applications, the 5298 V7 excels in distributed storage as well as warm and cold storage for big data, backup, and archiving. Boasting massive storage capacity, low power consumption, solid reliability, streamlined management, and effortless deployment, the 5298 V7 sets a new benchmark for server excellence.


Technical Specifications

Form Factor  4U rack server
Processor  2 x 4th/5th Gen Intel ® Xeon® Scalable processors, with up to 385 W TDP per processor
Chipset  Emmitsburg PCH
Memory  32 x DDR5 DIMMs, with up to 5600 MT/s speed
Local Storage Various drive configurations with hot-swappable capability:
- 10 x 2.5" SAS/SATA drives*
- 60 x 3.5" SAS/SATA drives
- 8 x NVMe SSDs
- Dual M.2 SSDs
RAID • RAID 0, 1, 10, 1E, 5, 50, 6, or 60
• RAID level migration, drive roaming, self-diagnosis, and remote web settings
• Supercapacitors for cache data protection from power failures
Network  2 x FlexIO slots dedicated for 2 x OCP 3.0 NICs, allowing for on-demand selection and hot swap
PCle Expansion  Up to 6 x PCIe expansion slots, including one dedicated for the RAID controller card and 2 x FlexIO expansion slots dedicated for OCP 3.0 NICs, and supporting PCIe 5.0
Fan Module • Computing area: 8 x hot-swappable counter-rotating fan modules in N+1 redundancy
• Storage area: 4 x hot-swappable counter-rotating fan modules in N+1 redundancy
PSU 1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
Management • The Intelligent Baseboard Management Controller (iBMC) chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, agentless management, and remote control, simplifying management complexity.
• Optional FusionDirector management software offers five intelligent management features for intelligent, automated, visualized, and refined management throughout the lifecycle.
OS  FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler
Security Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, Trusted Cryptography Module (TCM), security bezel, secure boot, and chassis intrusion detection
Operating  Temperature  5°C to 35°C (41°F to 95°F), compliant with ASHRAE Class A1/A2
Certification  CE, UL, CCC, FCC, VCCI, and RoHS
Installation Suite  L-shaped and adjustable guide rails
Dimensions(H x W x D)  175 mm x 447 mm x 850 mm (6.89 in. x 17.60 in. x 33.46 in.)


Highlights

Oceanic Storage

 - Unrivaled storage capacity: up to 60 x 3.5" SAS/SATA drives, reducing TCO by over 30%

 - Exceptional computing: 4th/5th Gen Intel ® Xeon® Scalable processors with up to 385 W TDP and support for 32 x DDR5 DIMMs

- Flexible expansion: up to 6 x PCIe expansion slots


Trusted Security

 - Advanced Extended Volume Air Cooling (EVAC): reliable cooling with enhanced temperature adaptability, boasting a 50% increase in individual heat sink

- Industry-exclusive memory fault self-healing: stable system running with a remarkable 66% reduction in system crash rates

- Root of Trust (RoT)-based secure boot: security embedded at every level for comprehensive protection


Efficient Power

 - Unique algorithm for the lowest power consumption of fans and CPUs: up to 8% higher energy efficiency compared to the industry standard - Three core technologies: tailored to elevate power and efficiency, boasting 12.5% lower power loss compared to industry norms and leading the industry in power conversion rates

 - Intelligent service sensing: dynamic adjustment of CPU frequencies based on actual business loads, optimizing energy consumption


Intelligent O&M

 - Seamless version updates: automated updates without any manual intervention, increasing update efficiency by 20 times

- Tool-driven deployment: 75% tool integration for streamlined deployment processes, boosting deployment efficiency by 10 times

- Unified server management: effortless management of servers from various vendors, achieving automatic asset identification, real-time tracking, and 100% inventory accuracy



Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.


International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
