WXY P30R Pro High-Resolution Thermal Fault Diagnostic Tool

WXY P30R Pro High-Resolution Thermal Fault Diagnostic Tool photo-1
WXY P30R Pro High-Resolution Thermal Fault Diagnostic Tool photo-2
WXY P30R Pro High-Resolution Thermal Fault Diagnostic Tool photo-3
WXY P30R Pro High-Resolution Thermal Fault Diagnostic Tool photo-4
WXY P30R Pro High-Resolution Thermal Fault Diagnostic Tool photo-5

Product Spotlights

Rapid Fault Isolation: Instantly identifies leakage-prone capacitors, shorted ICs, or malfunctioning power management chips by visualizing heat distribution across the PCB surface.
US$ 253 ≥1 Piece
Key Specifications
Get Latest Price
Trademark:
phonefix
Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Trademark phonefix
Origin China

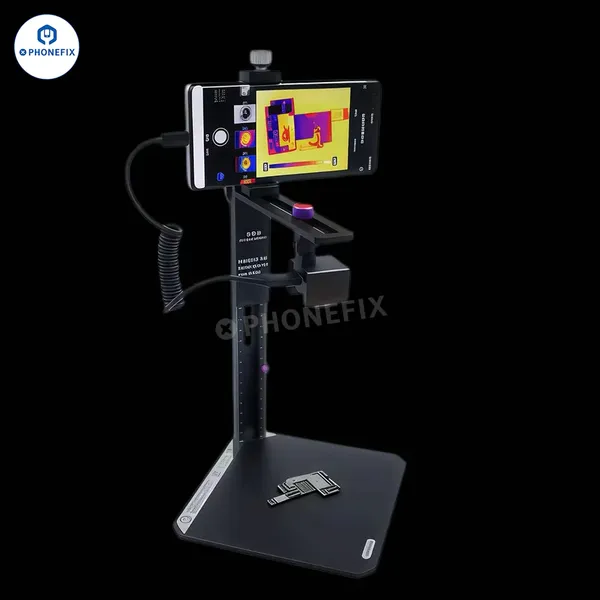

WXY P30R Pro Thermal Diagnostic Tool for mobile phone and computer repair. This high-precision imager provides real-time heat mapping to help isolate faulty components on complex PCBs, significantly reducing the time required for motherboard troubleshooting.


WXY P30R / P30R Pro – 3rd Generation Thermal Imaging Camera Features:

1. Built-in Lightning C94 (MFi certified encryption chip), built-in enhanced graphics display super-resolution chip + software super-resolution + AI dual super-resolution.

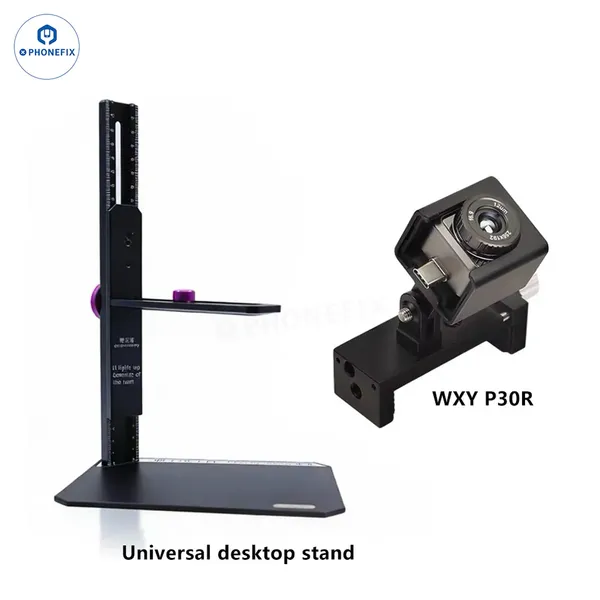

2. WXY P30R thermal camera with 6.9mm macro lens, and WXY P30R Pro with 9.6mm super-large lens (3x larger).

3. Supports Multiple Devices – iOS (iPhone/iPad), Android, Windows PC.

4. Oversized Germanium Lens – High light transmittance for clearer thermal images. Super-Resolution Imaging – Up to 720P infrared detection (P30R Pro).


Applications:

1. Electronics Repair: Mobile phone circuit board inspection; Computer motherboard diagnostics; Drone / UAV circuit troubleshooting; New energy equipment; Industrial instruments / meters; Home appliance circuit detection.

2. Other Uses: Outdoor hunting (legal countries only); Medical thermal imaging; Fire prevention; Floor heating inspection.


WXY P30R Pro Thermal Imager Technical Specifications:

Model: WXY P30R Pro Infrared Thermal Camera

Resolution: 256*192 pixels

Super Resolution (SR): 512 × 384 (up to 720P)

Temperature Range: -20℃ to 500℃

Lens: 9.6mm Germanium

Detection Range: Up to 500m

Infrared Detection: Up to 720P


WXY P30R Thermal Imager Technical Specifications:

Model: WXY P30R Infrared Thermal Imaging Camera

Resolution: 256*192 pixels

Super Resolution (SR): 512 × 384 (up to 640P)

Temperature Range: -20℃ to 500℃

Lens: 6.9mm macro lens

Detection Range: Up to 150m

Infrared Detection: Up to 640P


Product Tags: WXY P30R Pro , Infrared Thermal Camera , PCB Fault Diagnostic Tool
