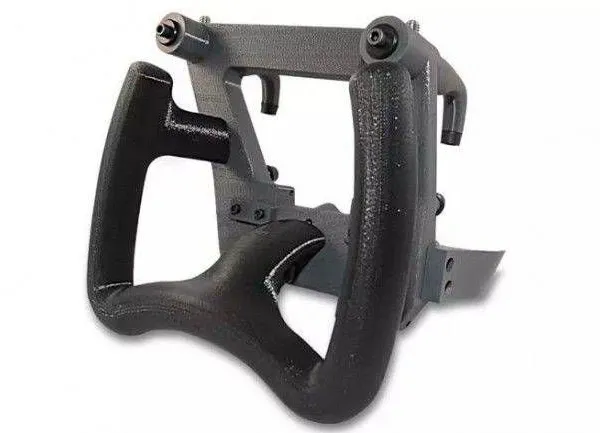

High-strength Fixtures Delivered in 72 Hours! Continuous Carbon Fiber 3d Printing Rewrites the Rules of Tooling Manufacturing

High-strength Fixtures Delivered in 72 Hours! Continuous Carbon Fiber 3d Printing Rewrites the Rules of Tooling Manufacturing thumbnail-1
High-strength Fixtures Delivered in 72 Hours! Continuous Carbon Fiber 3d Printing Rewrites the Rules of Tooling Manufacturing thumbnail-2
High-strength Fixtures Delivered in 72 Hours! Continuous Carbon Fiber 3d Printing Rewrites the Rules of Tooling Manufacturing photo-1
High-strength Fixtures Delivered in 72 Hours! Continuous Carbon Fiber 3d Printing Rewrites the Rules of Tooling Manufacturing photo-2
US$ 15076.92 1 Set
US$ 13538.46 ≥2 Set
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Chuangyuan Information Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

1. Pain point targeting: Three major dilemmas in traditional fixture manufacturing

 1. Long development cycle, dragging down the production line response

  • Machining/casting takes 45 - 60 days (including design, mold opening, and trial installation)

  • Urgent orders are forced to be "put into production with problems", and the yield rate drops by 15%~30%

 2. Extremely high cost for small batches, devouring profits

  • The mold cost accounts for over 60% (50,000 - 200,000 yuan)

  • For orders of less than 10 sets, the unit cost soars by 300%

️ 3. Steel/aluminum fixtures are heavy, reducing the efficiency of workers

  • The average weight is 12kg - 25kg, and 2 people are required to cooperate for production line adjustment

  • Long - term use causes muscle strain in workers, and the efficiency decreases by 34%

2. The tool to break the dilemma: Four overwhelming advantages of continuous carbon fiber 3D printing

✅ Delivered in 72 hours, seizing the golden period of production capacity

  • From CAD to finished product: The whole process of design → printing → assembly ≤ 3 days

  • Case: Mitsubishi Electric urgently customized a detection fixture for the inverter production line. Traditionally, it would take 21 days, but carbon fiber printing delivered it in 3 days, ensuring the timely delivery of a multi - million - yuan order.

✅ Cost reduced by 70% directly, small batches are finally cost - effective!

Cost item Traditional steel fixture Carbon fiber printed fixture
Single - set development cost ￥32,000+ ￥9,000-
Total cost for 10 sets ￥350,000 (including mold) ￥120,000
Design iteration cost Remake the mold, costing ￥80,000+ File replacement: ￥0

✅ Strength counterattack: 50% lighter than aluminum and 3 times stronger than steel

  • Measured data:

    • Tensile strength: 800 MPa (3.2 times higher than that of 6061 aluminum alloy)

    • Weight density: 1.3 g/cm³ (only 16% of that of steel)

  • Scenario verification:

    The tightening fixture for SAIC Volkswagen battery packs can withstand a torque of 2000N·m without deformation, and its service life reaches 120,000 times (3 times longer than that of aluminum alloy)

✅ Functional integration revolution: From "single fixed" to "intelligent tooling"

  • Embedded sensing: Pressure/temperature sensors are embedded during printing to monitor the assembly quality in real time

  • Ergonomic upgrade: Topological optimization for weight reduction + curved grip design, increasing the worker's operation efficiency by 40%

  • Anti-static/corrosion-resistant: The resistance of the carbon fiber matrix (such as PA-CF) is controllable, suitable for electronic and chemical production lines

III. Technical revelation: Why does the carbon fiber printed fixture outperform traditional processes?

 1. Fiber directional reinforcement to precisely resist stress

  • Defects of traditional processes: Metal processing cannot locally reinforce, resulting in excessive overall weight gain

  • Core printing technology:

    • The software presets the stress path, and 0°/90° orthogonal filament laying strengthens the key nodes

    • The strength of the stress concentration area is increased by 200% (such as hole positions and snap contact points)

️ 2. One-piece molding without assembly, eliminating the risk of failure

  • Traditional multi-piece assembly: The cumulative tolerance is ≥0.5mm, and bolt loosening causes positioning drift

  • Printing solutions:

    • Integrated printing of complex fixtures (e.g., integration of positioning + clamping + guiding)

    • Assembly error reduced to zero, yield increased by 22% (measured by GAC Fiat)

♻️ 3. Digital inventory replaces large quantities of steel and iron

  • Experience from Tesla Shanghai Factory:

    • Digital files of 3000 sets of fixtures stored in the cloud

    • Printing nearby the production site, logistics cost reduced by 90%

    • Recycling and remanufacturing of old parts, material utilization rate > 97%

IV. Success cases: Choices of global large enterprises

 Case 1: BMW Leipzig Factory (body welding fixtures)

  • Challenge: It takes 6 weeks to develop fixtures for new models, delaying the market launch schedule

  • Solution: Continuous carbon fiber printed positioning module + pressure arm

  • Results:

    • Delivery cycle reduced from 42 days to 4 days

    • Single-piece weight reduced by 68% (workers can operate with one hand)

    • Production line changeover efficiency increased by 50%

 Case 2: CATL (battery module test bench)

  • Pain point: Resonance of the aluminum test frame causes sensor misjudgment

  • Solution: Carbon fiber printed damping structure + sensor embedded base

  • Results:

    • Vibration attenuation rate increased by 90%, detection accuracy reaches ±0.02mm

    • Cost reduced by 62% compared with the metal solution

V. Implementation Guide: Switch to Carbon Fiber Intelligent Clamps

Opt for high-value replacement scenarios

Clamp Type Replacement Priority Weight Reduction Space Cost Reduction
Positioning/Clamping Module ★★★★★ 50%-75% 60%-75%
Inspection Fixture Base ★★★★☆ 40%-65% 50%-70%
Tool Hanger ★★★☆☆ 30%-50% 40%-60%
