In the field of electromagnetic simulation, various software programs are emerging one after another. With its unique advantages, Dassault CST stands out among many competitors and becomes the trusted choice of numerous enterprises and research institutions. Now, let's delve into the excellent performance of Dassault CST through actual cases and data comparison.
1. Automotive electronics EMC simulation: Helping Yanfeng International improve product pass rate
As the functions of automotive interiors become increasingly complex, the electromagnetic compatibility (EMC) problems caused by hardware circuits and cable layouts have become a major challenge in automotive electronics design. Yanfeng International faced such a dilemma when dealing with the project of the in - vehicle embedded decorative backlight panel. This product contains various circuits such as power supply, backlight, and communication, and two circuit boards are connected to the vehicle body through cables. Traditional design methods are difficult to accurately predict and solve EMC problems. Once problems are found in the later verification or market stage, the difficulty and cost of rectification will increase significantly.

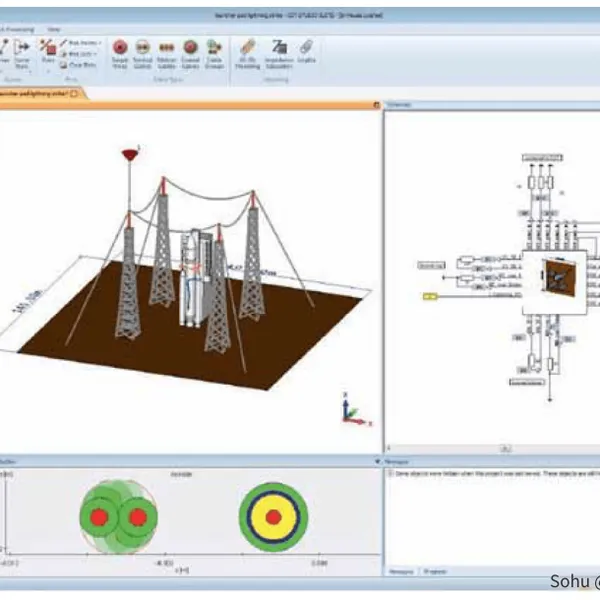

With the help of CST, a 3D full - wave electromagnetic field simulation tool of Dassault Systèmes, Yanfeng International adopted the field - circuit co - simulation method to build a comprehensive electromagnetic simulation model, covering interference sources, coupling paths, linear impedance stabilization networks (LISN), and receivers. CST's powerful full - wave solving ability enables it to handle complete system - level models. Especially in the modeling of complex cables, its Cable to 3D function plays a key role, accurately realizing the 3D precise modeling of cables and effectively solving the modeling problems of engineers.
By comparing the simulation results with the actual test results, within the frequency band of 150k - 108m, the simulation and test results of conducted interference (CE) show a high degree of consistency. This not only significantly improves the product test pass rate but also enables the engineer team to have a deeper understanding of the mechanism of EMC problems, providing strong support for subsequent product optimization. Compared with other projects that do not use professional electromagnetic simulation software or adopt traditional simulation methods, Yanfeng International's project using CST software shortens the product development cycle by about 30% and reduces the test and rectification cost by about 40%, fully demonstrating the practical value of CST in the field of automotive electronics EMC simulation.
2. Multi - dimensional performance comparison with Ansys HFSS
In the electromagnetic simulation software market, Ansys HFSS is one of the strong competitors of Dassault CST. Ansys HFSS is based on the finite element method (FEM) and is well - known in the field of high - frequency electronic product design. In terms of accuracy, HFSS has a good surface fitting effect and is highly recognized for its high - frequency accuracy. However, its mesh generation process is often complex, and when solving large - scale problems, it requires a huge amount of computing resources such as memory.

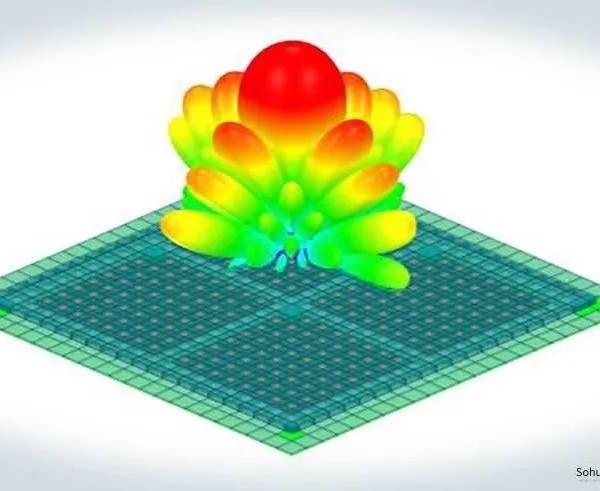

Dassault CST has a wide - spectrum simulation ability covering from static to optics. Its hybrid solver technology can provide high - precision results in many application scenarios, especially performing stably when dealing with electrically large - size problems. For example, in a simulation project of a large antenna array, the error between the CST calculation results and the actual test data is within an acceptable range. In the same project, due to the complex model, HFSS has insufficient memory, resulting in deviations in the calculation results, and the calculation time is more than 2 times that of CST.
In terms of calculation speed, CST's time-domain solver has obvious advantages in broadband simulation. One simulation can obtain broadband results. At the same time, by supporting hardware acceleration technologies such as multi-core CPU, GPU acceleration, and distributed computing, it can significantly shorten the calculation time of complex models. According to tests, when processing ultra-wideband circuit models of the same complexity, CST's calculation speed is about 50% faster than that of HFSS. In terms of the ability to handle complex models, although both can handle models with complex geometric shapes, CST has more advantages in the accuracy and stability of results when processing the S-parameters of ultra-large arrays, and it has relatively lower memory usage compared to HFSS.
In terms of ease of use, CST's user interface is more modern and intuitive, with a relatively gentle learning curve. The rich built-in library resources also greatly simplify the design process, allowing novice users to get started more quickly. While HFSS has powerful functions, its numerous setting options are not very friendly to beginners, and the learning cycle is longer.
Dassault CST has demonstrated excellent performance in many practical project cases in the field of electromagnetic simulation with its accurate calculation results, high-efficiency calculation speed, excellent ability to handle complex models, and user-friendly experience. It has significant advantages compared with competing products. Whether in industries such as automotive electronics, aerospace, communications, or consumer electronics, Dassault CST can provide powerful electromagnetic simulation support for enterprises and research institutions, helping to improve product innovation and R & D efficiency. It is well-deservedly the preferred software in the field of electromagnetic simulation.
