Product Description

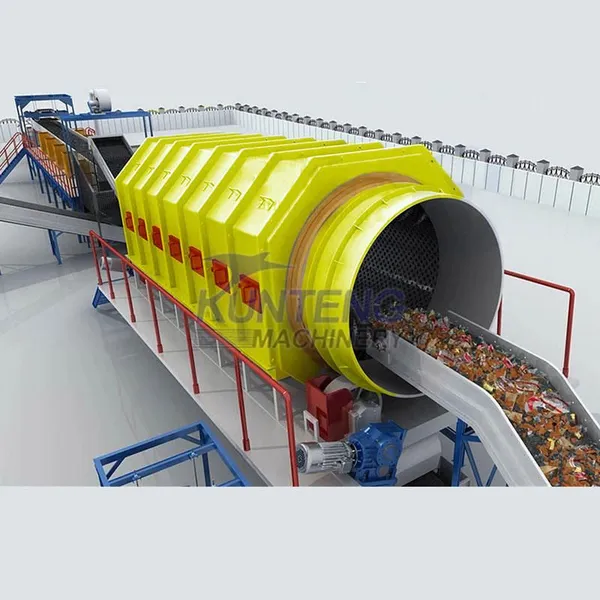

Trommel Screen Machine, or rotary screen, is a kind of mechanical screening machine which is widely used in the rubbish separation plant. It controls the material separation by the particle size, and the separation precision is high.
The cylinder of the Trommel Screen Separator for Waste is generally divided into several sections, depending on the specific situation. The mesh holes are arranged from small to large, and the mesh hole diameter on each section is the same.
Main Parameters of Trommel Rotary Drum Screen Machine
The Trommel Screen Separator for City Garbage is an important equipment in the comprehensive Household Solid Waste Sorting Line,The household waste management machines have different models, the capacity ranges from 50 to 500 tons per day, which satisfies the different requirement of customers:
| Model | Capacity(t/day) | Motor Power(kw) | Diameter(mm) | Length(mm) |
| KT1000*3000 | 20 | 2.2*2 | 1000 | 3000 |
| KT1200*4000 | 30 | 3*2 | 1200 | 4000 |
| KT1500*6000 | 50 | 4*2 | 1500 | 6000 |
| KT1800*6000 | 100 | 5.5*2 | 1800 | 6000 |
| KT2000*8000 | 200 | 7.5*2 | 2000 | 8000 |
| KT2200*8000 | 300 | 11*2 | 2200 | 8000 |

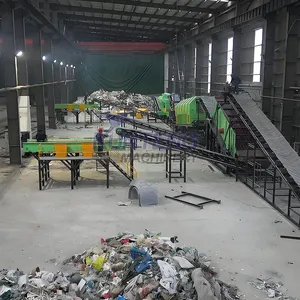

Production Line
Related Products of Waste Sorting Line
1.Box feeder+bag breaking machine
Feeding the material evenly and tear the bag into the next process;
2.Trommel Screen for Waste
Mainly used for sieving organic and inorganic substances;
3.Air sorting machine
Mainly used for screening light materials and heavy materials;
4.Manual sorting table
Sorting out rubber, wood blocks, large pieces of glass, batteries, etc. from the garbage;
5.Hydraulic baling machine
The sorted plastics and cartons are packaged and can be further processed into RDF fuel rods.

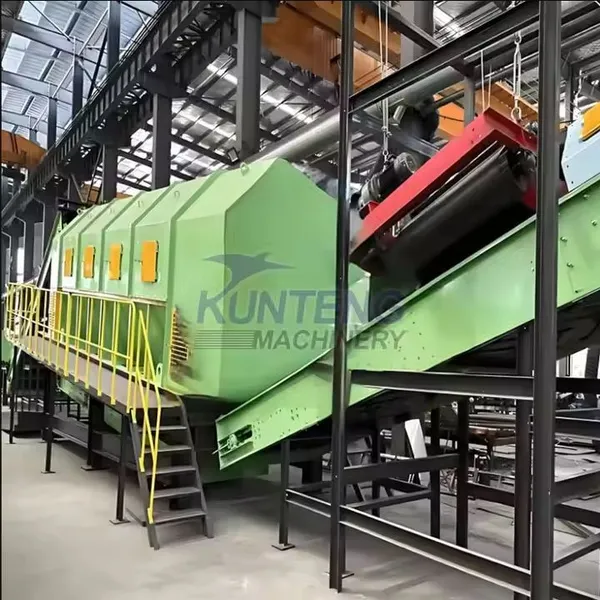

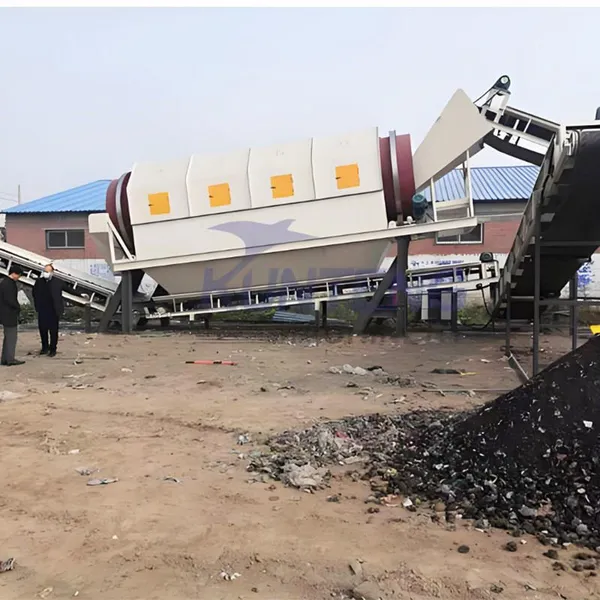

Customer Site
We have many successfully customers cases at domestic and abroad for City Garbage Sorting Disposal Production Line,here are some examples from Mexico,Indonisia,and Shanghai city,China.
Packaging & Shipping
All of our equipments package according to international shipping standards,to make sure the machines complete and undamaged transport.
Company Information
Henan Kunteng Machinery Co.,Ltd.was established in 1999.We are engaged in manufacturing urban garbage machine Municipal garbage recycling plant city solid waste sorting plant for more than 20 years.
Our mature equipment include trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc.We can design the most reasonable solution for customers. Welcome to our factory to discuss cooperation
Our service:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big items.
