Inspur NF5180M5 A 1U Rack Storage Server Seamless Compute Density

Inspur NF5180M5 A 1U Rack Storage Server Seamless Compute Density photo-1
Inspur NF5180M5 A 1U Rack Storage Server Seamless Compute Density photo-2
Inspur NF5180M5 A 1U Rack Storage Server Seamless Compute Density photo-3
Inspur NF5180M5 A 1U Rack Storage Server Seamless Compute Density photo-4
Negotiable MOQ: 1 Combo (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Other
Processor Type:
Intel Xeon
Operating System:
Windows Server
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Application Other
Processor Type Intel Xeon
Operating System Windows Server
Power Supply Other
Storage Capacity >1TB
Instruction System CISC
Max. CPUs 1
Number of CPu Threads Other
Supporting Memory Capacity >1TB
System Architecture X86 Server
Network Connectivity 1GbE
Server Form Factor 1U
Management Interface BMC
Storage Type Hybrid Storage(Combination of HDDs and SSDs)
Form Factor 1U
RAM Capacity Other

Inspur NF5180M5 A 1U 2-socket rack server with seamless compute density and scalability integration


Inspur NF5180M5

A 1U 2-socket rack server with seamless compute density and scalability integration


Excellent performance, High efficiency

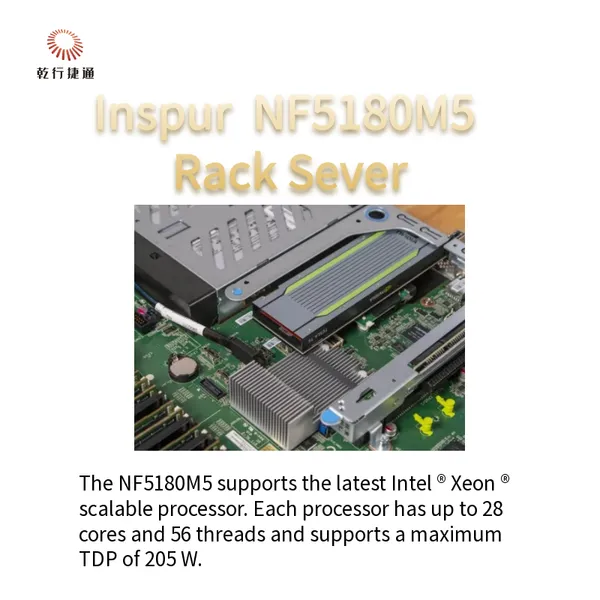

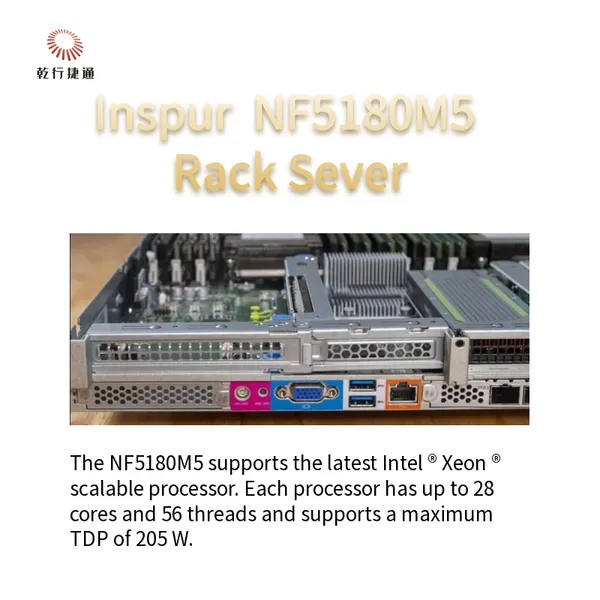

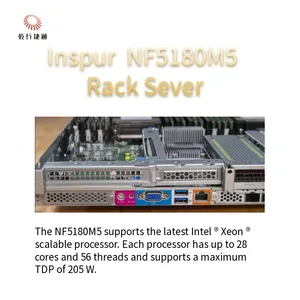

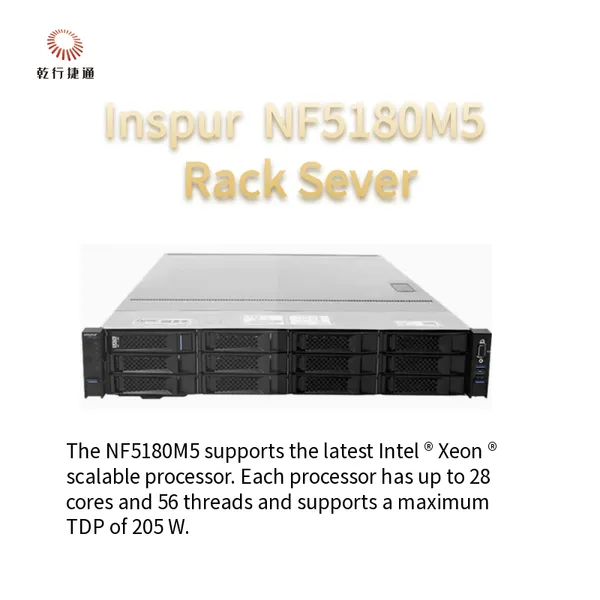

The NF5180M5 supports the latest Intel ® Xeon ® scalable processor. Each processor has up to 28 cores and 56 threads and supports a maximum TDP of 205 W.

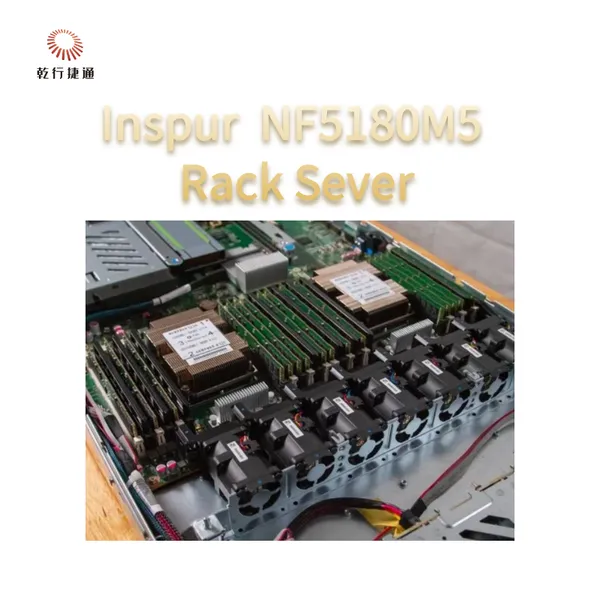

Configurable to a maximum of 24 DDR4-2933 DIMMs for a total of 3TB. The NF5180M5 also supports RDIMM, LDRIMM,ECC, memory imaging, and hot standby.

Supports up to 8 Optane™ PMem.

The 10 hot swappable NVMe SSD hard drives have an all-flash configuration and provide a ten-fold input/output operations per second (IOPS) increase compared to SATA SSDs for high-end enterprise applications, providing increased storage bandwidth.


Multiple configurations, superior scalability

Each front node supports up to 4 x 3.5-inch hard drives and 2 x SATA SSDs or 10 x 2.5-inch hard drives, while each rear node supports 2 x SATA SSDs, thus achieving a significant increase in storage to provide large-scale storage.

Supports 2 x SATA M.2 or 2 x PCIe M.2 SSDs for faster and more secure operating system startups.

A flexible OCP/PHY card slot is available for 10G, 25G, and 40G network ports, providing highly flexible network configurations for different applications.

Supports 3 PCIe 3.0 slots for customers requiring flexibility for diverse system scalability and performance.

Secure, reliable, easy to operate, and accessible Based on humanization designs, tool-free maintenance is available for certain components, further lowering the maintenance time and increasing operation availability. Inspur’s unique intelligent control technology optimizes internal cooling to ensure server stability even at temperatures of up to 35°C/95℉.

With the latest BMC technology, our technical support personnel are able to use a web management interface as well as the LED and front UID indicators to identify the location and status of fault issues. This simplifies maintenance, reduces troubleshooting time, and increases system availability.

All swappable components have a fool-proof design for easier maintenance.



Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.


International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
