Inspur NF5280M6 2U Rack Server 4210R 8G*4/2T SATA 550W Rail Alignment System

Inspur NF5280M6 2U Rack Server 4210R 8G*4/2T SATA 550W Rail Alignment System thumbnail-1
Inspur NF5280M6 2U Rack Server 4210R 8G*4/2T SATA 550W Rail Alignment System thumbnail-2
Inspur NF5280M6 2U Rack Server 4210R 8G*4/2T SATA 550W Rail Alignment System thumbnail-3
Inspur NF5280M6 2U Rack Server 4210R 8G*4/2T SATA 550W Rail Alignment System thumbnail-4
Inspur NF5280M6 2U Rack Server 4210R 8G*4/2T SATA 550W Rail Alignment System photo-1
Inspur NF5280M6 2U Rack Server 4210R 8G*4/2T SATA 550W Rail Alignment System photo-2
Inspur NF5280M6 2U Rack Server 4210R 8G*4/2T SATA 550W Rail Alignment System photo-3
Inspur NF5280M6 2U Rack Server 4210R 8G*4/2T SATA 550W Rail Alignment System photo-4
Negotiable MOQ: 1 Combo (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Other
Processor Type:
Intel Xeon
Operating System:
Windows Server
Contact Supplier Request Quote Chat Now
Beijing Qianxing Jietong Technology Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Other
Processor Type Intel Xeon
Operating System Windows Server
Power Supply Single PSU
Storage Capacity >1TB
Instruction System CISC
Max. CPUs 1
Number of CPu Threads Other
Supporting Memory Capacity >1TB
System Architecture X86 Server
Network Connectivity 1GbE
Server Form Factor 2U
Management Interface BMC
Storage Type Hybrid Storage(Combination of HDDs and SSDs)
Form Factor 2U
RAM Capacity Other

Inspur NF5280M6 4210R 8G*4/2T SATA 550W 2U Rack Server With Rail Alignment System Platform Supporting Customization


Inspur NF5280M6

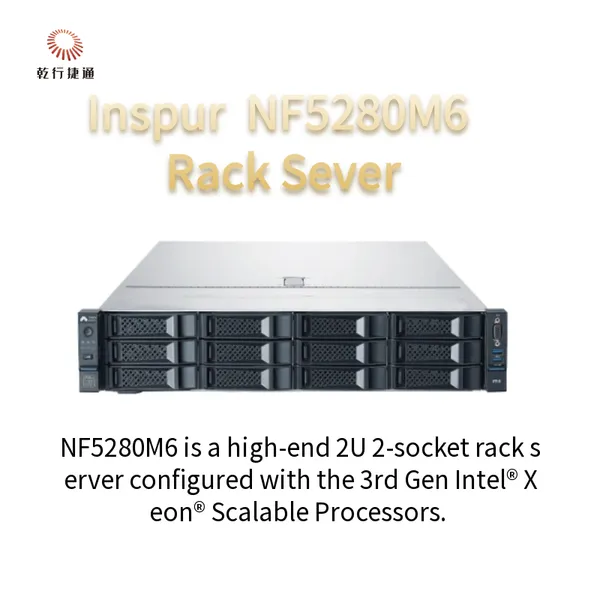

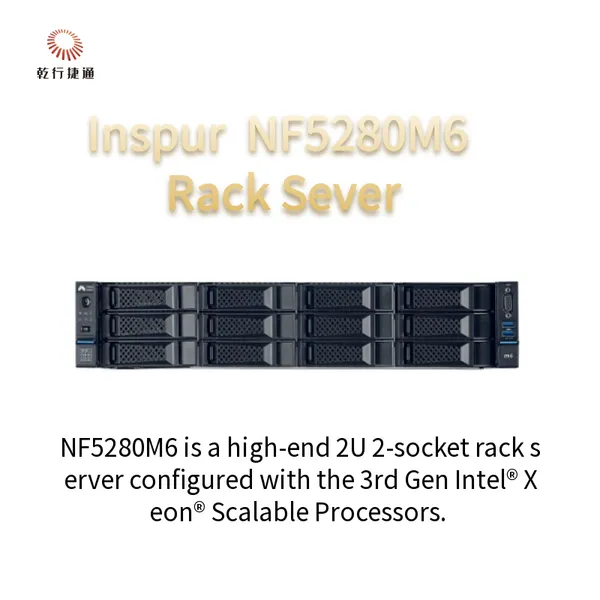

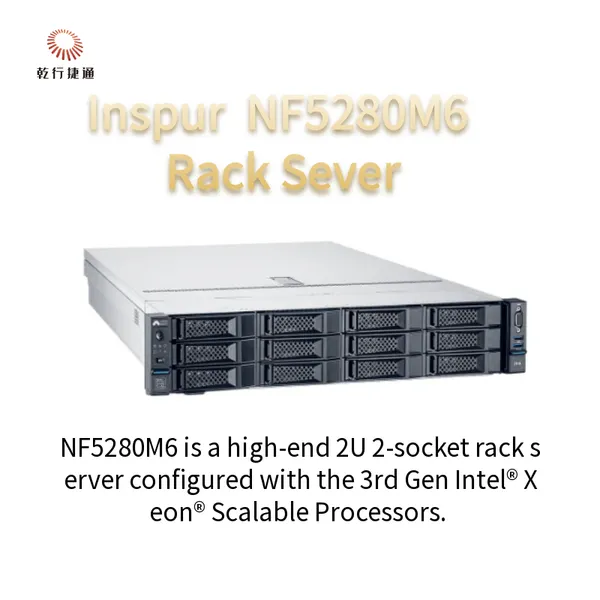

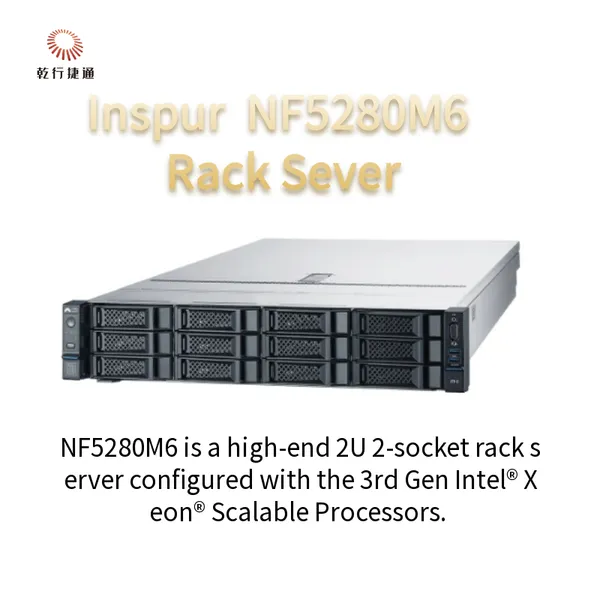

Inspur NF5280M6 is a high-end 2U 2-socket rackmount server configured with the 3rd Gen Intel® Xeon® Scalable Processors. For different application scenarios, NF5280M6 maintains the consistent high-quality and reliability of Inspur servers. The product meets the application configuration requirements of various industries with high computing performance, complete ecological compatibility, and flexible configuration, and is suitable for various application scenarios such as data analysis and processing, deep learning, and distributed storage etc.


Features:

High Performance

NF5280M6 configured with 2 latest 3rd generation Intel® Xeon® scalable processors, each CPU has up to 40 cores and 80 threads. The maximum TDP 270W, maximum base frequency 3.6GHz, 1.5MB L3 cache per core and 3 UPIs up to 11.2GT/s.

NF5280M6 provides extraordinary speed, high availability and a maximum of 6T memory capacity with up to 32 * DDR4-3200MT/s ECC RDIMMs or LRDIMMs.

NF5280M6 protects data integrity during power failure without degrading memory capacity and bandwidth by support Intel® Optane™ Persistent Memory, It up to 512G capacity and 3200MHz bandwidth.


Flexible Expansion

Support up to 20 * 3.5-inch or 39 * 2.5-inch drives. Support OCP 3.0 (optional) and 10/25/40/100/200G network interface.

Support up to 11 * PCIe slots for further I/O performance upgrade.

Support rear 2 * SATA M.2/E1.S (optional) to meet a variety of storage needs.


Intelligent Management

NF5280M6 adopts easy maintenance design and the entire system supports tool-less maintenance. By optimizing some structural components, it allows convenient assembly and reduces the maintenance time.

With Inspur's unique intelligent temperature control technology and advanced air-cooling system to keep the server working in the best environment, to ensure the stable operation of the system.

Relying on the latest BMC technology, technicians can perform monitoring and troubleshooting via the web-based GUI and LEDs (for fault diagnosis and prognosis). The front-panel UID indicator indicates the failure components and identifies the faulty or abnormal components in a timely manner, thus, simplify the maintenance workflow, speed up troubleshooting, and improve system availability.

BMC supports to monitor system parameters and triggers alarm notification for potential failures, thus, allow technician to be prepared in case of failure, secure stable machine operation, and reduce the risk of system shutdown.


Technical Specifications

Components

Description

Form Factor

2U rack

Processor

Supporting 1/2 * 3rd Gen Intel® Xeon® Scalable Processors
Max. processor core: up to 40 cores (freq. 2.3GHz)
Max. processor frequency: 3.6GHz (4 cores)
3 * UPIs and each supports 11.2GT/s
TDP: up to 270W

Chipset

Intel® C621A

Memory

Up to 32 * DIMMs (8 channels /CPU, each channel supports 2 DIMMs):
Each CPU supports up to 16 * DIMMs, dual CPU supports 32 * DIMMs (up to 3200MT)
Supporting RDIMM and BPS
Memory Protection Schemes: ECC; Memory Mirroring; Memory-Level Protection

Storage

Front:
24 * 2.5-inch SATA/SAS/NVMe SSDs (hot swappable)
25 * 2.5-inch SATA/SAS SSDs (hot swappable)
12 * 2.5-inch/3.5-inch SATA/SAS/NVMe SSDs (hot swappable)
Rear:
4 * 2.5-inch SATA/SAS/NVMe SSDs (hot swappable)
4 * 3.5-inch SATA/SAS SSDs (hot swappable)
10 * 2.5-inch SATA/SAS SSDs (hot swappable)
(Optional) 2 * SATA M.2 or E1.S
Internal:
4 * 3.5-inch SATA/SAS SSDs
max. 2 * TF cards (1 * BIOS; 1 * BMC)

Storage Controller

RAID controller, SAS controller
Onboard PCH supports 14 * SATA interfaces.
Onboard Intel® NVMe controller, NVMe RAID Key (optional)

Network

1 * OCP3.0 (optional), 10/25/40/100/200G
2 * Onboard 10G Ethernet ports
Standard NICs: 1/10/25/40/100G

I/O Scalable Slot

Up to 11 * PCIe slots
4 * DW GPUs or 8 * SW GPUs
1 * OCP3.0 x16 NIC
1 * RAID Mezz card

Interface

2 * Rear USB3.0, 1 * Front USB3.0, 1 * Front USB2.0
1 * Front VGA
1 * Rear VGA

System Fan

4 * Hot-swappable N+1 redundancy fans

PSU

Supporting 2 * 550W/800W/1300W/1600W/2000W CRPS PSU,
1+1 redundancy

System Management

1 * Onboard independent 1000Mbps serial port for IPMI remote management

OS

Microsoft Windows Sever, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc.

Dimension(W x H x D)

with mount ears: 478.8mm (18.9 inches) x 87mm (3.5 inches) x 811.7mm (32 inches)
Without mount ears: 435mm (17.2 inches) x 87mm (3.5 inches) x 780mm (30.7 inches)

Weight


Notices:


1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 3 year warranty, and the buyer is responsible for the return shipping cost.


International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
