ASNI ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries.It, the opening and closing (ball) is driven by the stem and revolves around the axis . The sealing performance is good，the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable,The switch is light.
ANSI Ball Valve range:
Production Size:1/2"~10".DN15~DN250
Pressure:125LB,150LB
ANSI Ball Valve standard
Design Standard:ANSI B16.34
Face to Face:ASME B16.10
Flange Standard:ASME B16.10
Testing Standard:API 598

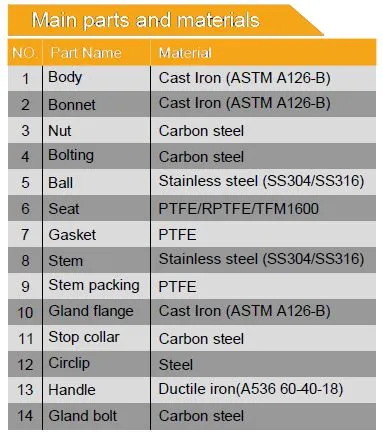

ANSI Ball Valve main material of parts:
Body:ASTM A126B
Bonnet:ASTM A126B
Stem:2Cr13/SS304/SS316/Carbon Steel
Ball:SS304,SS316
Gasket:PTFE
Seat:PTFE,RPTFE
Stem Packing:PTFE
Handle:ASTM A536 65-45-12
Product Details
Factory
Certification
Fair
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional valve factory Located In Hebei, China.
Q: What's Execution Standard of products?
A: ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost is free, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
Q: Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
Q: Can you provide the relevant documentation and certificate?
A:Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF etc.
Q:How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
Q: Why choose us?
A: 1. 20 years of manufacturing and developing experience;
2. A Strong R & D team;
3. Service experience for thousands of customers at home and abroad;
4. Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5. Five casting production lines with stable casting quality, high production efficiency and fast delivery time
Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share
