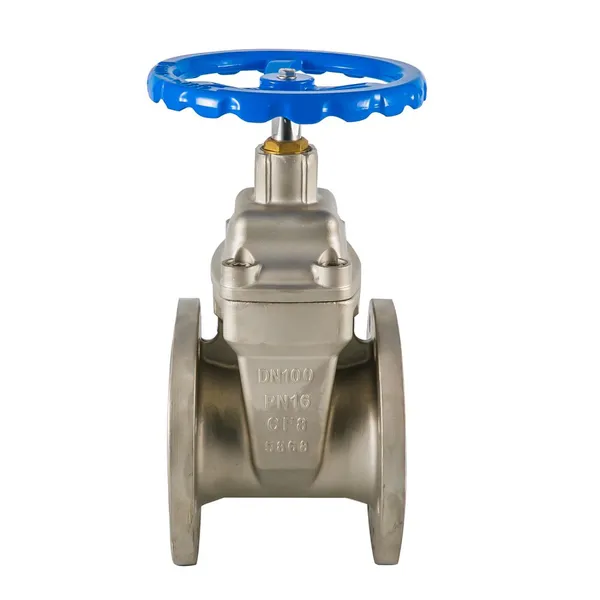

HOT SALE Industrial CF8 Gate Valve, Corrosion-Resistant Stainless Steel
Product Spotlights
CF8 stainless steel material, excellent corrosion & high-temperature resistance. Reliable sealing, stable operation, suitable for various industrial pipelines. Easy maintenance, durable and adaptable to harsh working environments.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Cast Iron or Ductile Iron
Application:
Other, Water Supply
Pressure Rating:
PN16
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Hot Selling High-End Epoxy Coating Rising Stem Gate ValveNegotiableMOQ: 1 Piece -
ST001 RVHX Stainless Steel Resilient Seated Gate Valve for High-Pressure Industrial PipelinesNegotiableMOQ: 1 Piece
-
Resilient Seated Gate Valve for Municipal Water Treatment Plants With MTRNegotiableMOQ: 1 Piece
-
Soft Sealing Nrs Gate Valve/Slurry Knife Gate Valve/Brass PPR Gate Valves/Gate Valve A216 Wcb/Penstock Gate Valve PriceNegotiableMOQ: 50 Sets
-
Resilient Seated Gate Valve Non_Rising Stem, STO02 RVCXNegotiableMOQ: 1 Piece
Material
Other, Cast Iron or Ductile Iron
Application
Other, Water Supply
Pressure Rating
PN16
Connection Type
Flanged
Seat Type
Resilient Seated
Bore Design
Full Bore
Size Range
DN50 to DN600 Available
Brand
Shanghai Sote Valve
Function
Flow Isolation and Control
Product Description
Resilent seated gate valve for industrial usage
CF8 gate valve for industrial usage
Connection: Flanged to EN 1092-2, BS4504, ASME B16.10, AS4088
Working pressure: PN10/PN16/PN25
Temperature range: 0,C ~ 80C
Fusion bonded epoxy coating
Connection: Flanged to EN 1092-2, BS4504, ASME B16.10, AS4088
Working pressure: PN10/PN16/PN25
Temperature range: 0,C ~ 80C
Fusion bonded epoxy coating

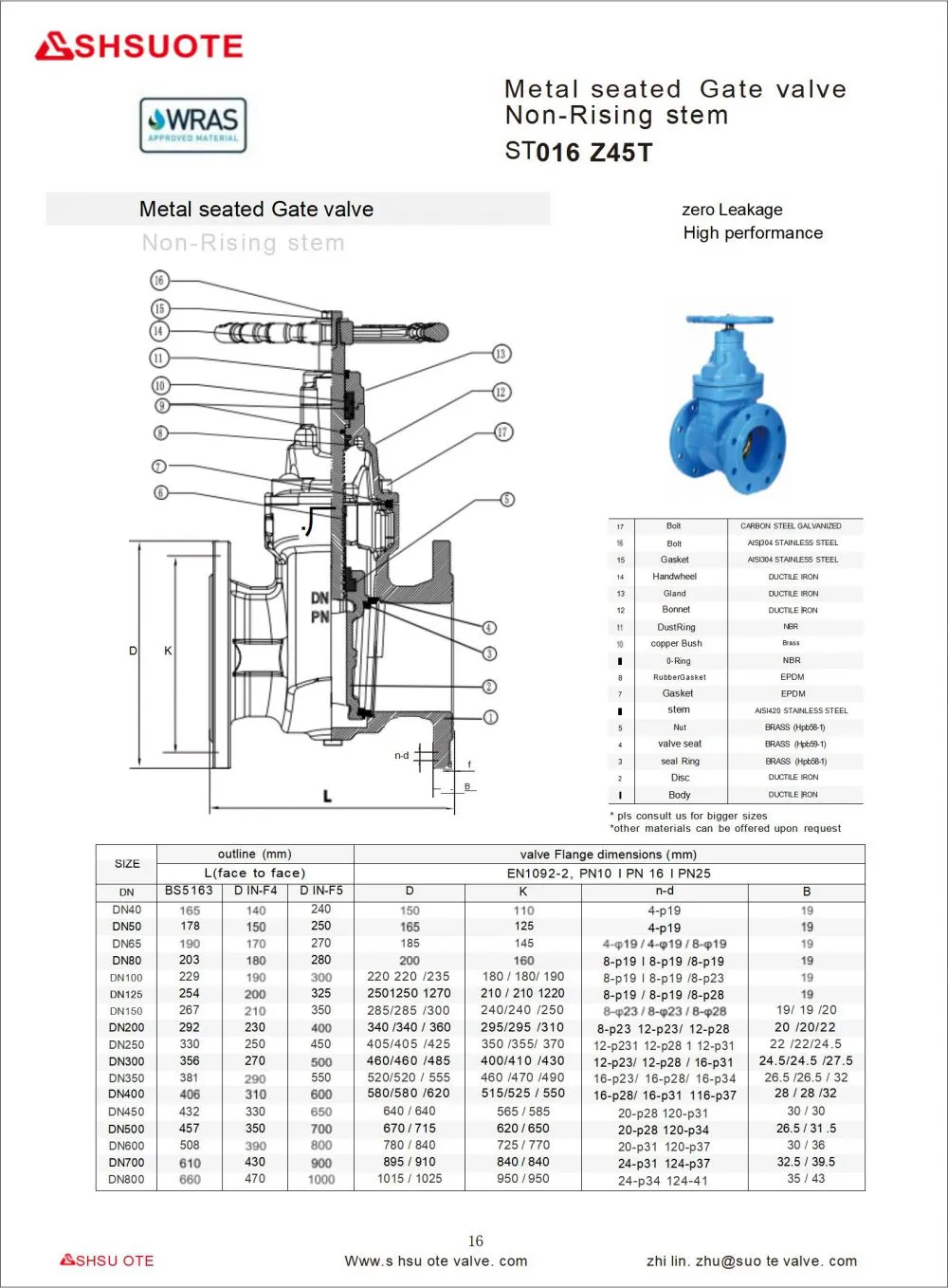

| Size | Face to face dimension(mm) | No,of turns closing | Flange dimension(EN 1092-2) PN10/PN16/PN25 | ASMEB16.1/16.42 CL125/150 | AS 4087 PN10/PN16 | ||||||||||
| DN | DIN F4 | DIN | BS 5163 | ASME B16.10 | AS | D | K | n-d | D | K | n-d | D | K | n-d | |
| F5 | 2638 | ||||||||||||||
| DN40/L5 | 140 | 240 | 178 | . | . | 9 | 150 | 110 | 4-019 | ||||||
| DN50/2 | 150 | 250 | 178 | 178 | . | 9 | 165 | 125 | 4-019 | 152 | 120.5 | 4-019 | - | - | - |
| DN65/2.5 | 170 | 270 | 190 | 190 | - | 10 | 185 | 145 | 4-0)19/4-0)19/8-019 | 178 | 139.5 | 4-019 | . | - | - |
| DN80/3 | 180 | 280 | 203 | 203 | 203 | 12 | 200 | 160 | 8-019 | 191 | 152.5 | 4-019 | 185 | 146 | 4-018 |
| DN 100/4 | 190 | 300 | 229 | 229 | 229 | 12 | 220/220/235 | 180/180/190 | 8-019/8-0)19/8-0)23 | 229 | 190.5 | 8-019 | 215 | 178 | 4-018 |
| DN125/5 | 200 | 325 | 254 | 254 | . | 14.5 | 250/250/270 | 210/210/220 | 8-019/8-019/8-028 | 254 | 216 | 8-022 | . | - | - |
| DN150/6 | 210 | 350 | 267 | 267 | 267 | 17 | 285/285/300 | 240/240/250 | 8-023/8-0)23/8-028 | 279 | 241.5 | 8-022 | 280 | 235 | 8-018 |
| DN200/8 | 230 | 400 | 292 | 292 | 292 | 18.5 | 340/340/360 | 295/295/310 | 8-023/12-023/12-028 | 343 | 298.5 | 8-022 | 335 | 292 | 8-018 |
| DN250/10 | 250 | 450 | 330 | 330 | 330 | 23 | 395/405/425 | 350/355/370 | 12-(P23/12-a)28/12- | 406 | 362 | 12-025 | 405 | 356 | 8-022 |
| DN300/12 | 270 | 500 | 356 | 356 | 356 | 27 | 445/460/485 | 400/410/430 | 12-| 483 | 432 | |
