Flocon 6300 Refractory Slide Plate to Control The Flow Rate of Molten Steel
Product Description
Usage Environment
Sliding nozzles are key devices in the continuous casting process of steelmaking, mainly used to control the flow of molten steel from the ladle to the tundish. They operate in an extremely harsh high - temperature environment, with the temperature of molten steel usually reaching about 1500 - 1600°C. Moreover, they are exposed to the scouring of molten steel and slag, as well as the chemical erosion of various elements in the molten steel and slag. Meanwhile, during the casting process, they need to endure rapid temperature changes, resulting in significant thermal stress inside the materials.
Composition
Refractory Materials:
These are the main components of sliding nozzles. Common refractory materials include aluminum - carbon (Al-C), aluminum - zirconium - carbon (Al-Zr-C), magnesia - based materials, and corundum - based materials.
For example, aluminum - carbon materials are often used in general - purpose ladle sliding nozzles, which are composed of sintered alumina and carbon components. Aluminum - zirconium - carbon materials, which add zirconium - containing components on the basis of aluminum - carbon materials, are widely applied in large - scale refined ladle sliding nozzles.
Detailed Photos

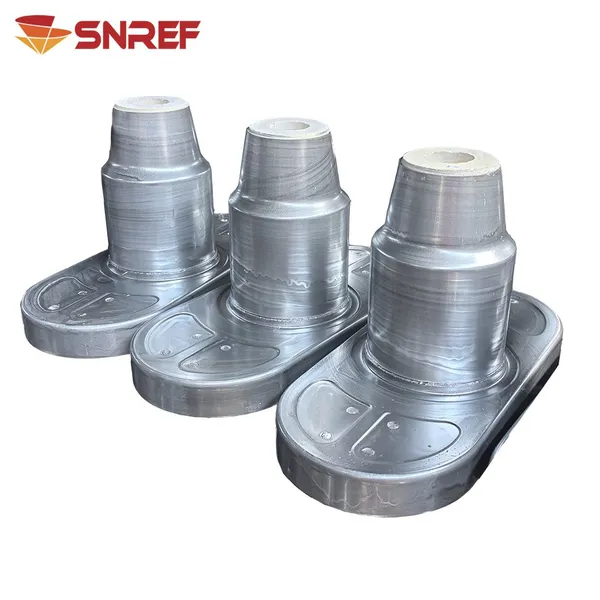

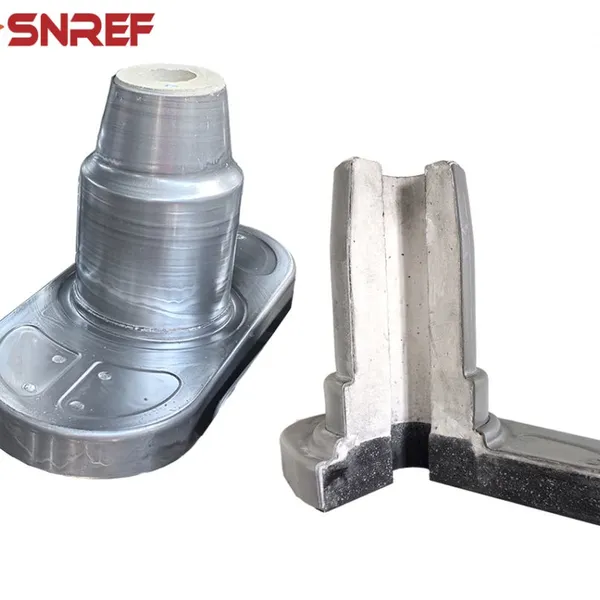

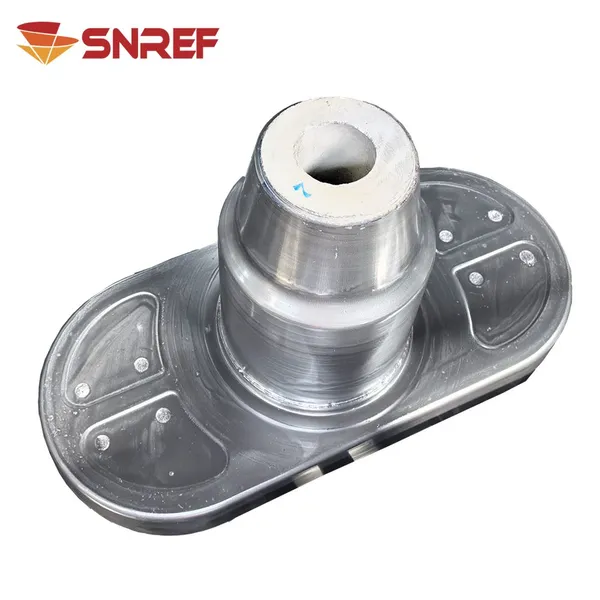

Photo for 6300 Refractory Slide Gate Set (plate & nozzle)
Product Parameters
| Product Name | Al2O3 | ZrO2 | SiO2 | C | MgO | A.P.P | B.D. | C.C.S | |
| 6300 upper slide gate plate | Formula 1 | ≥90 | / | ≤9 | ≥2.5 | ≤12 % | ≥2.90 g/cm3 | ≥80MPa | |
| Formula 1 | ≥82 | ≥4 | ≤6 | ≥4 | ≤9 % | ≥3.15 g/cm3 | ≥80MPa | ||
| 6300 lower slide plate and nozzle | slide plate 1 | ≥90 | / | ≤9 | ≥2.5 | ≤12 % | ≥2.90 g/cm3 | ≥80MPa | |
| slide plate 2 | ≥82 | ≥4 | ≤6 | ≥4 | ≤9 % | ≥3.15 g/cm3 | ≥80MPa | ||
| nozzle | ≥85 | ≤1.6 | ≥3 | ≤20 % | ≥3.07 g/cm3 |
Application
Packaging & Shipping
Company Profile
Shandong Sinorefractory New Materials Co.,Ltd (SinoRefractory)has been focusing on international marketing of flow control refractories in iron and steel industry for 17 years.
SinoRefractory is the second generation of refractories export enterprise developed out of EMEI Group.Supported by one of China's largest production bases in functional refractory materials.
Through years of development in the field of exporting top quality refractories to worldwide markets,SinoRefractory aims at researching,producing,marketing and exporting high standard Ladle slide gate plate,Ladle Nozzles,Well blocks,Purging plugs,Nozzle stuffing sand,Refractory castables, Slide gate Mechanisms etc.
Up to now,SinoRefractory has supplied high quality refractory products and services to nearly 70 top-hundred global steel enterprises.
SinoRefractory will always put clients'interest in the first place,striving to provide a wide range of services,including technical solution,pre-sales support,after-sales services,installation team support,professional know-how according to the changing of steelmaking condition,etc.
We are not only selling products,we are more focused on supporting,developing and growing together with clients.
Workshop
FAQ
Q 1:How can I receive best materials or products for my application ?
A: Please send drawing and steelmaking condition to us for evaluation.
Our technical team will recommend suitable formula and workmanship,
our sales team will offer most competitive prices accordingly.
Our "Technical+Sales" team will work on to provide optimum product recommendation for clients.
Q 2:Is the recommended life time guaranteed by SNREF ?
A: Taking into comprehensive consideration base on steelmaking situation and SNREF's product experience, we'll
offer recommended life time of products.
However SNREF doesn't guarantee the life time.
For first time cooperation, SNREF recommends a trial order for testing.
Trial order offers us chance to adjust formula base on actual performance.
SNREF will offer best technical support and expedited delivery for trial order.
Q 3:Can SNREF's refractories work well for my system from other brands?
A: With years of experience in exporting. SNREF has successfully provided refractory materials to a wide range of overseas markets including Asia, North Amercia, South America, Middle East, CIS area etc.
We are experienced with various types of systems.
SNREF is capable to offer consistent and high performance refractory materials to clients worldwide.
