S2 Slide Gate Plate for Ladle Flow Control
Product Description

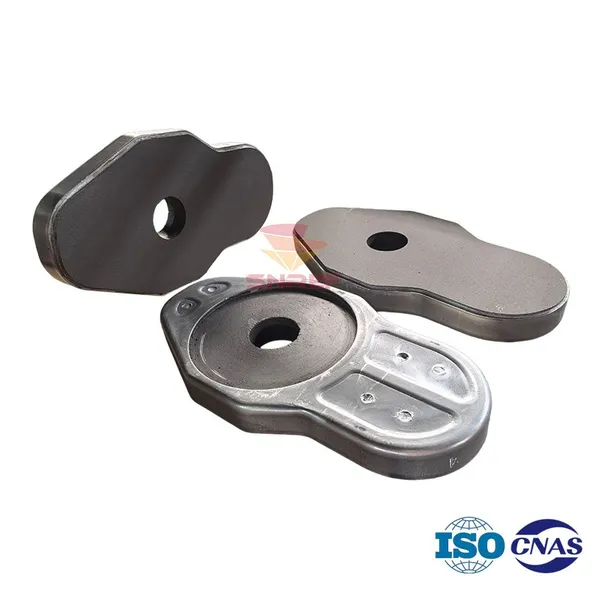

SNREF Slide Gate Plate adopts High quality bauxite material , also takes tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. The slide plates have the advantages of high strength, good erosion resistance, thermal shock resistance and good stability etc., mainly used in large and medium-sized ladle.
Main types of slide gate plate
1) C series Small size Slide Plate---mainly for Indonesia, Vietnam, Myanmar, Thailand, for 5-20 tons ladles.
2) QC series Slide Plate mainly for India, Turkey,Middle East, Indonesia, Pakistan, Italy , mainly for 20-30 tons ladles.
3) B250 , safllow, HB250, Mainly for Pakistan, Middle East market.
4) Flocon sereis Slide Plate mainly for Turkey, Middle East, Italy, Braizl, and soon.
5) CS Serise Slide Plate mainly for Europe countries. mostly for larges ladles such as more than 120 tons.
Type of production design
1) High Temperature Burnt Slide Gate Plate and ladle nozzle system
High performance ladle slide gate plate refractories adopts tabular alumina,carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. Mainly used in large and medium-sized ladles.
2) Low Temperature Burnt Slide Gate Plate and nozzle system
Tabular alumina, zirconia-containing material and spinel as major raw materials, adding in special metal, using phenolic resin as binder, being burned under low temperature to produce the products, Mainly used in small and medium-sized ladle.
3) Un-burned Slide Gate Plate and nozzle system
Without the process of burned, tar impregnated and distilled, simple processing. Mainly used in small and medium-sized ladle.
Packaging & Shipping
Service Result for slide gate plate and nozzle system:
Service life depends on many points:
1)Different Raw Material,
2)Production Process(Firing temperature, oil immersion, drying temperature...)
3)Steel type
4)Steel making condition
5)Different operation mode
And so on....
Our Advantages
1QC Ladle Slide Gate Plate with Collector Nozzle
The slide plates have the advantages of high strength, good erosion resistance, thermal shock resistance and good stability etc.,mainly used in large and medium-sized ladle
The advantages of SNREF SLIDE GATE PLATE REFRACTORY are as follows:
First, it has excellent heat resistance. It can withstand extremely high temperatures without deforming or deteriorating, ensuring the stability and safety of the sliding gate system in high-temperature environments.
Second, it has outstanding wear resistance. With long-term use, it can resist the abrasion caused by the flow of molten metal and other materials, prolonging its service life and reducing maintenance costs.
Third, it has good chemical stability. It can resist the corrosion of various chemical substances in the smelting process, ensuring the purity of the molten metal and improving the quality of the product.
Fourth, its design is precise and reliable. The SNREF SLIDE GATE PLATE REFRACTORY is designed to fit perfectly with the sliding gate system, ensuring smooth operation and accurate control of the flow of molten metal.
Finally, it is supplied by a reliable manufacturer with years of experience in the field. This ensures consistent quality and excellent after-sales service, giving users peace of mind.
Company Profile
Shandong Sinorefractory New Materials Co.,Ltd (SinoRefractory)has been focusing on international marketing of flow control refractories in iron and steel industry for 17 years.
SinoRefractory is the second generation of refractories export enterprise developed out of EMEI Group.Supported by one of China's largest production bases in functional refractory materials.
Through years of development in the field of exporting top quality refractories to worldwide markets,SinoRefractory aims at researching,producing,marketing and exporting high standard Ladle slide gate plate,Ladle Nozzles,Well blocks,Purging plugs,Nozzle stuffing sand,Refractory castables, Slide gate Mechanisms etc.
Up to now,SinoRefractory has supplied high quality refractory products and services to nearly 70 top-hundred global steel enterprises.
SinoRefractory will always put clients'interest in the first place,striving to provide a wide range of services,including technical solution,pre-sales support,after-sales services,installation team support,professional know-how according to the changing of steelmaking condition,etc.
We are not only selling products,we are more focused on supporting,developing and growing together with clients.
Application
Refractory applications of ladle slide gate plates. Ladle slide gate plates are key components used to control the flow rate of molten steel during steel smelting.
The application of refractory materials in them is mainly because the temperature of molten steel is extremely high, and materials that can withstand high temperatures, resist erosion, and resist thermal shock are required to manufacture the slide gate plates.
Common refractory materials include alumina-based and magnesia-based materials. Alumina-based refractory materials have good high-temperature strength and chemical stability; magnesia-based refractory materials perform outstandingly in terms of resistance to alkaline slag erosion. The application of these refractory materials can improve the service life and reliability of the slide gate plates, ensuring the safety and stable quality of molten steel during transportation and casting.
FAQ
Below are some FAQ and answers about ladle and tundish flow control refractories:
Q: What are the requirements for refractories for ladle?
A: The requirements of refractories for ladle mainly include:
* high temperature resistance
* thermal shock resistance
* resistance to the erosion of the slag
* high temperature with sufficient mechanical strength
* the lining has a certain degree of expansion
Q:What are the reasons for the destruction of refractories for ladle?
A: The main causes of damage are as follows:
When the ladle transports high-temperature molten steel, the high-temperature molten steel and slag at about 1680ºC scour and erode it, especially in the slag line part, the scouring and erosion is more serious, and it is an important factor to decide the service life of the ladle.
LF and other extra-oven refining treatment on the unburnt brick damage is serious.
Q:What steel grades are different materials of slide plate bricks suitable for respectively?
A: Different materials of slide plate bricks are applicable to different steel grades. For example,
Al2O3-ZrO2-C slide gate plate can be used as ladle sliding gate plate due to its excellent erosion resistance and thermal shock stability, which can adapt to the casting of various steel grades, and ther are the following materilas based on customer's steel making condition: the MgO-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, and so on.
For more details, feel free to send inquiry to us.
