Production Description
Our New pressing machine for waste plastic waste carton packing machine waste paper baler are CE marked, It can process high volumes of recyclable materials such as paper,cardboard,plastics,metal,and other sorted waste. It also designed with customer requirements, so making your waste management a simple and economical process.It is an important waste baler equipment in the waste sorting line.
Advantages of New pressing machine for waste plastic waste carton packing machine waste paper baler:
▶ All models are hydraulically driven and can be controlled manually or automatically by PLC. ▶ If there is no power source, diesel engine can be used as power. ▶ Compression chamber size and packaging size can be customized. ▶ The feed port is equipped with a dispersion shear knife for high cutting efficiency. ▶ Low noise, Button operation, PLC control, safe and reliable.
Application Material:
It is suitable for waste paper, waste cardboard, waste plastics, waste woven bags, waste cloth strips, waste hemp bags, metal beer bottles, and other recyclable waste. It is also suitable for other soft materials such as straw, grass, cotton, clothing, wool, yarn, tobacco leaves, wool balls, cocoons, silk, etc.
Horizontal waste baler machine |
||
Model |
KT-100 Semi-automatic horizontal baler |
KT-120 Automatic horizontal baler |
Power system |
Hydraulic system |
Hydraulic system |
System pressure |
28Mpa |
28Mpa |
Motor |
22kw hydraulic pump |
22kw+15kw hydraulic pump |
Main thrust |
1000kn |
1200kn |
Inlet size |
1500*820mm (L*W) |
1685*860 (L*W) |
Packing size |
900*1000mm (W*H) |
900*1100 (W*H) |
Packing density |
≥400-450kg/m3 |
≥400-450kg/m3 |
Capacity |
2-5t/h |
5-8t/h |
Whole Waste Sorting Production Line
Urban waste, construction waste, or stale waste enters the feeder — Belt conveyor — Waste trommel screen machine (which mesh sizes of 10-200mm. can sorting waste according to the material size) — Magnetic separator(sorting metal) — Air separation machine(Screening waste by material’s weight) — Waste baler machine.Through this series of sorting process, plastic bottles, rubber, metals, cardboard, hard plastics, etc. are selected, finally, the selected light materials are balled by the waste baller machine.
Specifications of Waste Sorting Line
Model |
JTS1500 |
JTS1800 |
JTS2000 |
JTS2200 |
JTS2500 |
Rated output |
50t/day |
100t/day |
200t/day |
300t/day |
500t/day |
Box feeder |
B800×4000 |
B1000×4000 |
B1200×4000 |
B1400×4000 |
B1400×7000 |
Trommel screen |
T1500*6000 |
T1800*6000 |
T2000*6000 |
T2200*8000 |
T2500*8000 |
Magnetic separator |
RCYD-6 |
RCYD-8 |
RCYD-10 |
RCYD-10 |
RCYD-12 |
Air separator |
GX-A60 |
GX-A80 |
GX-A100 |
GX-A120 |
GX-A160 |
Baller |
B30T |
GX-B80 |
GX-B100 |
GX-B120 |
GX-B160 |
Number of conveyors |
B650*6 |
B800*6 |
B1000*6 |
B1200*6 |
B1200*6 |
Floor area |
18m*58m |
19m*60m |
20m*62m |
22m*65m |
24m*77m |
Total Power |
84kw |
102kw |
135kw |
165kw |
222kw |
Main machines of the line

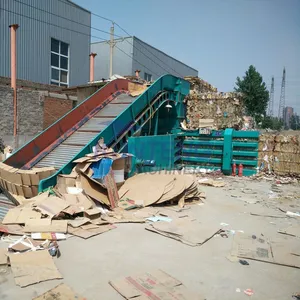

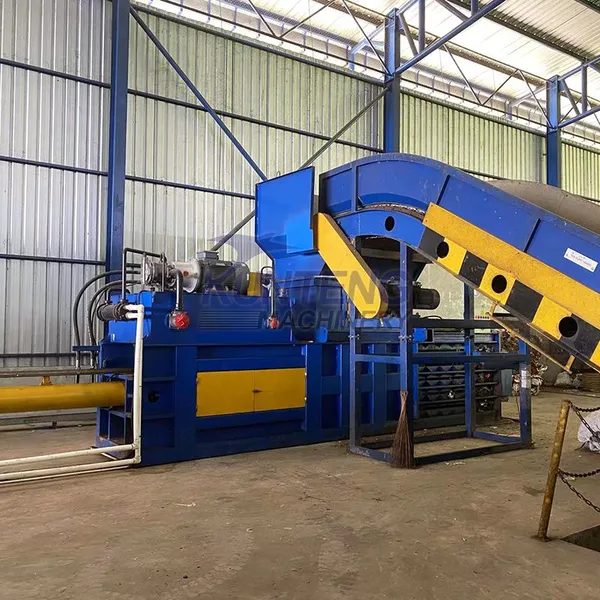

Successful Project
Company Profile
Kunteng Machinery founded in 1999, mainly focuses on design and manufacturing waste sorting production line. Trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, manual sorting tables, New pressing machine for waste plastic waste carton packing machine waste paper baler, chain plate feeder, belt conveyor.etc. Kunteng Machinery is a high-tech modern enterprise integrating scientific research and development, production and sales, engineering design, installation services. Our machine has passed ISO9001:2000 CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
PACKING & SHIPPING
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
