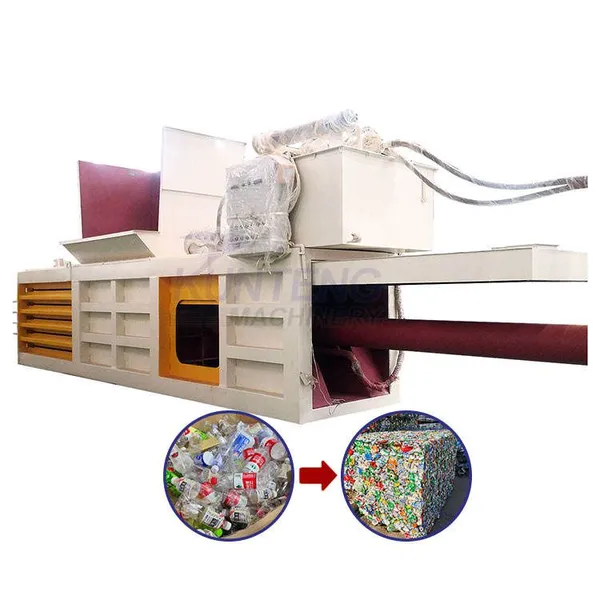

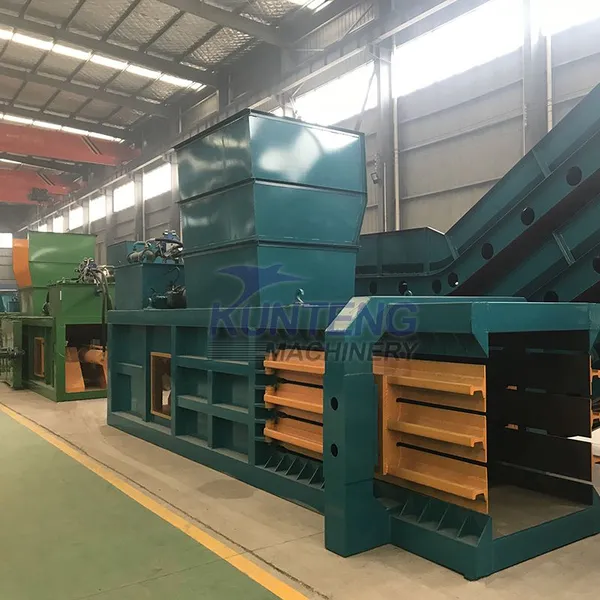

Large Capacity Waste Packaging Machine Waste Plastic Baler Machine
Product Description
Large Capacity Waste Packaging Machinee is a special equipment for waste paper, plastic, and carton board compression and packaging in the garbage disposal and waste recycling industry.
Waste Plastic Compressor Machine can greatly realize the compression and packaging of light material garbage, reduce the floor space and reduce transportation costs.
Main Parameters of Large Capacity Waste Packaging Machine
| Model | KT100 | KT120 |
| Power System | Hydraulic System | Hydraulic System |
| System Pressure | 28 Mpa | 28 Mpa |
| Motor | 22kw hydraulic pump | 22+15kw hydrauckic pump |
| Main Thrust | 1000 kn | 1200kn |
| Inlet Size | 1500*820mm(L*W) | 1685*860mm(L*W) |
| Packing Size | 900*1000mm(W*H) | 900*1100(W*H) |
| Packing Density | ≥400-450kg/m3 |
≥400-450kg/m3 |
| Capacity | 2-5tons/hour | 5-8tons/hour |
Features of Large Capacity Waste Packaging Machine
1.Widely application,such as waste paper,plastic,metal and used clothes etc.
2. Horizontal structure, feeding with conveyor belt, saving time, effort and convenience; 3. Button operation, PLC control, safe and reliable;
4. The matching power is adjusted according to the machine model and actual production requirements;
5. Chain plate or belt conveyors can be selected according to user requirements, with large conveying capacity, wear resistance, strong load capacity and anti-skid drop function;
Production Line
Automatic Waste Sorting Production Line for Organic Waste is to classify domestic waste at the source, and realize waste reduction, recycling and harmlessness through classified collection, classified transportation and classified treatment. The capacity ranges from 30-500 tons per day.
After sorting, different fractions of pure waste are received and can be further processed for recycling.
Mainly equipments of Automatic Waste Sorting Production Line:
Working Principle
Automatic Waste Sorting Production Line in Several Stages:
1.Box feeder+bag breaking machine
Feeding the material evenly and tear the bag into the next process;
2.Trommel screen
Mainly used for sieving organic and inorganic substances;
3.Air sorting machine
Mainly used for screening light materials and heavy materials;
4.Garbage Manual Sorting Platform
Sorting out rubber, wood blocks, large pieces of glass, batteries, etc. from the garbage;
5.Hydraulic Waste Paper Baling Baler Machine
The sorted plastics and cartons are packaged and can be further processed into RDF fuel rods.
Customer Site
We have many successfully customers cases at domestic and abroad for City Garbage Sorting Disposal Production Line,here are some examples from Mexico,Indonisia,and Shanghai city,China.
Packaging & Shipping
All of our equipments package according to international shipping standards,to make sure the machines complete and undamaged transport.
Company Information
Henan Kunteng Machinery Co.,Ltd.was established in 1999.We are engaged in manufacturing urban garbage machine Municipal garbage recycling plant city solid waste sorting plant for more than 20 years.
Our mature equipment include trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc.We can design the most reasonable solution for customers. Welcome to our factory to discuss cooperation
Our service:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big items.
