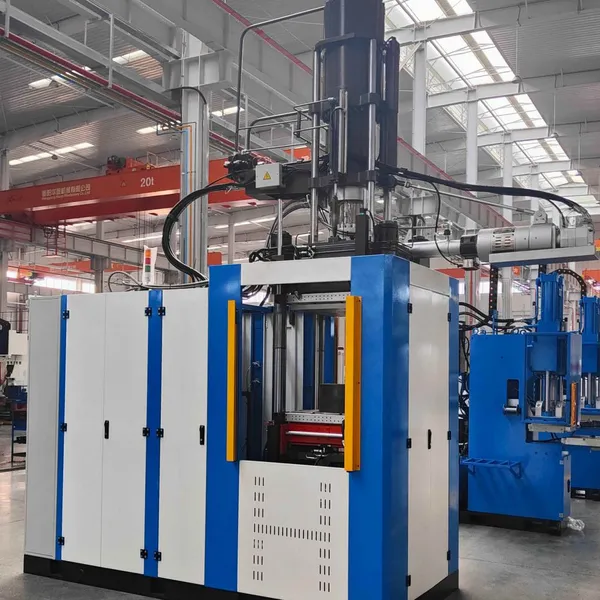

Vertical Rubber Injection Machine with Control System Motor & Engine Components for Automotive Rubber Parts
Rubber Injection Machine E Series, vertical rubber injection molding machine, four-column structure with retractable nozzle, LIFO injection, no material leakage or spill, easy maintenance structure, multi-phase injection speed & pressure setting adapt various molds production demand.
LIFO Injection, injection accuracy ±1% , multi-phase injection speed and pressure setting;
Separate TCU controls the plasticizing & injection temperature to prevent dead rubber and improve the fluidity of the rubber;
No leakage or spill due to the optimal nozzle design;
European transducer to measure strokes with high precision(±0.01);
Easy clean structure, reversible screw help rubber exit automatically.
Vertical single-cylinder clamping structure, bigger clamping piston diameter, more balanced clamping force distribution;
High rigid ductile casting platens, clamping cylinder design on the basis of finite element analysis;
PQ valves control clamping movements, equipped two separate clamping cylinders, can achieve "slow - fast - slow" clamping speed;
Heating platen temperature tolerance within±2.5 degree(Size
Lower pressure mold clamping, hydraulic safety protection, light curtains safety protection on the operator side.
SIEMENS PLC and Screen, advanced model, global service support, editable program suitable for various customized production needs;
300 sets of mold recipe, support production data transferring by USB or Ethernet port.
Remote control support to achieving remote wireless monitoring and maintenance;
Company introduction
Hengyang Huayi machinery co.,ltd, a hongkong invested high-tech enterprise in Hunan province, was founded in march 18,2001,covering an area of 32 acres, plant area of 50,000 squre meters. We have passed ISO9001:2008 quality management system certification since 2002.By now, we are the biggest manufacturer of rubber injection molding machine, vacuum vulcanizing press and mold in China with largest production scale and the most powerful R&D. We have undertaken implementation on the national Torch Plan Project and the national innovation Fund project many times. The core technology of our products gained a number of national invention patens and independent intellectual property rights. Now our products are widely used in electrical power, high voltage power transmission, automotive rubber parts,railway infrasturcture and mechanical seal parts and other industries.

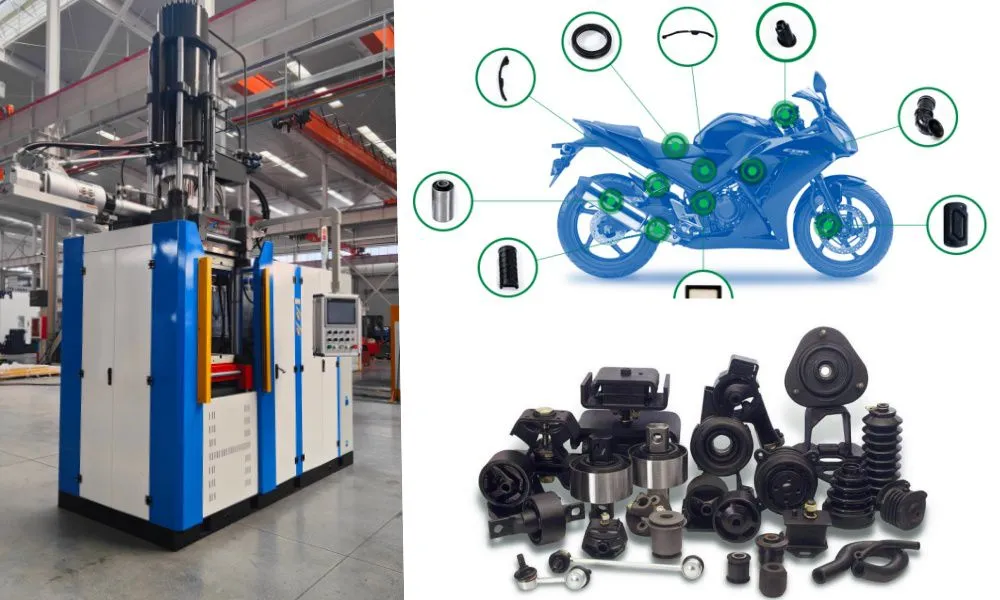

Vertical Rubber Injection Machine for Automatic Rubber Parts Production
The vertical rubber injection molding machine is widely used for the fully automatic production of precision rubber parts. With its compact vertical clamping structure, high injection accuracy, and easy automation integration, it is especially suitable for manufacturers requiring high efficiency, stable quality, and labor-saving production.
Main Applications
Vertical rubber injection machines are commonly used to manufacture:
Rubber O-rings
Oil seals
Automotive rubber parts
Shock absorbers
Rubber bushings
Waterproof seals
Rubber connectors
-
Electronic rubber parts
Multi-cavity precision rubber components
Advantages for Automatic Production
1. Easy Automation Integration
The vertical structure provides convenient access for:
Robot take-out systems
Automatic insert loading
Conveyor systems
Vision inspection systems
Automatic trimming and deflashing
This greatly reduces manual labor and improves production consistency.
2. High Production Efficiency
Compared with traditional compression molding machines, rubber injection machines offer:
Faster molding cycles
Stable rubber feeding
Reduced material waste
Continuous automatic operation
Suitable for 24-hour unmanned or semi-unmanned production.
3. Excellent Product Quality
The injection molding process ensures:
Better dimensional accuracy
Uniform rubber distribution
Lower defect rate
Reduced air traps and flash
Stable vulcanization quality
Especially suitable for high-precision automotive and sealing products.
4. Suitable for Complex and Multi-Cavity Molds
Vertical injection machines can efficiently run:
Large cavity molds
Family molds
Complex geometry rubber parts
Insert molding applications
Helping customers maximize production output.
Industries Served
Automotive industry
Energy and power industry
Medical and healthcare industry
Electronics industry
Hydraulic and pneumatic sealing industry
Household appliance industry
Smart Manufacturing Solution
Modern vertical rubber injection molding machines can be equipped with:
PLC intelligent control systems
Servo hydraulic systems
Vacuum systems
Cold runner systems
Industry 4.0 data monitoring
Helping factories achieve intelligent and energy-saving manufacturing.
Vertical rubber injection molding machines are an ideal solution for customers seeking high automation, stable product quality, and reduced labor costs in rubber parts manufacturing.
