Supply rubber injection machine

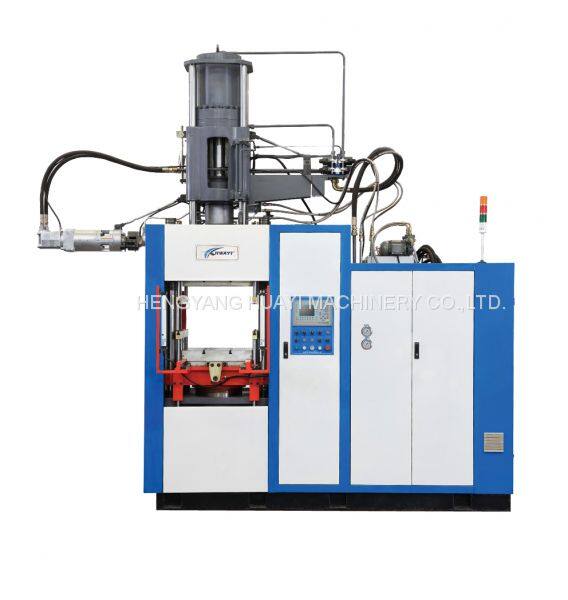

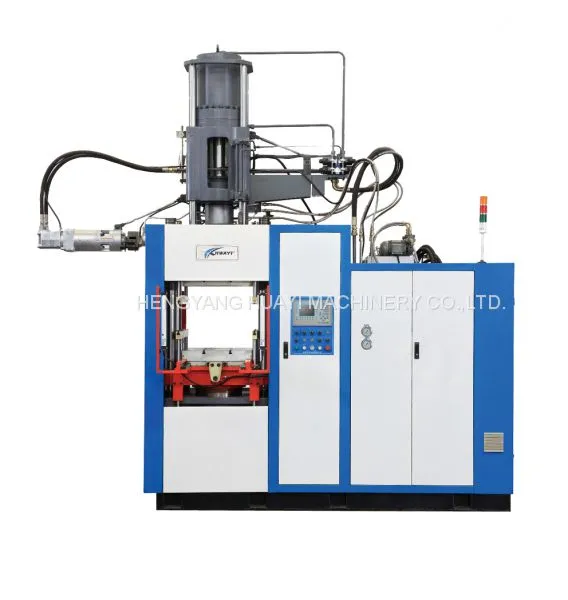

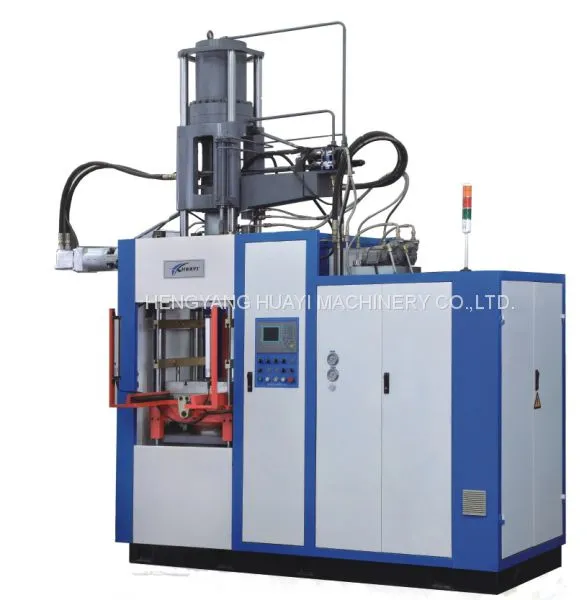

Rubber Injection Machine E Series, vertical rubber injection molding machine, four-column structure with retractable nozzle, LIFO injection, no material leakage or spill, easy maintenance structure, multi-phase injection speed & pressure setting adapt various molds production demand.

LIFO Injection, injection accuracy ±1% , multi-phase injection speed and pressure setting;

Separate TCU controls the plasticizing & injection temperature to prevent dead rubber and improve the fluidity of the rubber;

No leakage or spill due to the optimal nozzle design;

European transducer to measure strokes with high precision(±0.01);

Easy clean structure, reversible screw help rubber exit automatically.

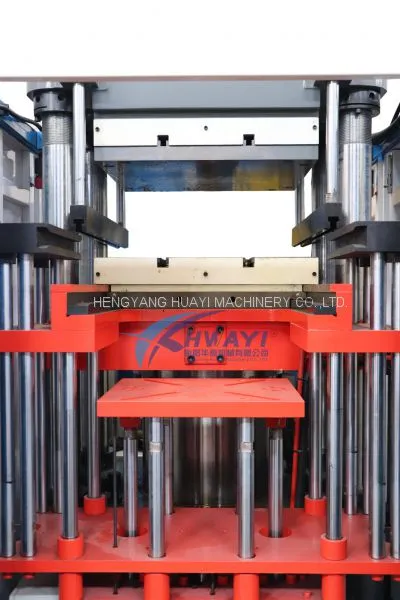

Vertical single-cylinder clamping structure, bigger clamping piston diameter, more balanced clamping force distribution;

High rigid ductile casting platens, clamping cylinder design on the basis of finite element analysis;

PQ valves control clamping movements, equipped two separate clamping cylinders, can achieve "slow - fast - slow" clamping speed;

Heating platen temperature tolerance within±2.5 degree(Size<600x600mm), temperature PID calibration.

Lower pressure mold clamping, hydraulic safety protection, light curtains safety protection on the operator side.

SIEMENS PLC and Screen, advanced model, global service support, editable program suitable for various customized production needs;

300 sets of mold recipe, support production data transferring by USB or Ethernet port.

Remote control support to achieving remote wireless monitoring and maintenance;

Package

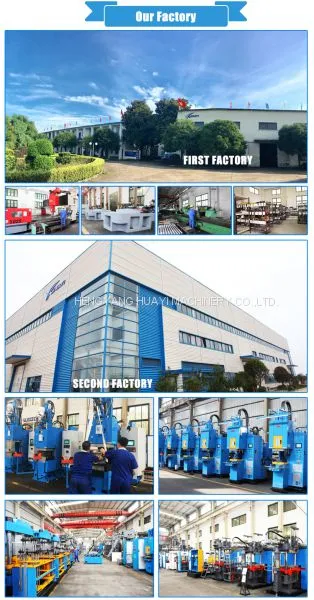

Company information
