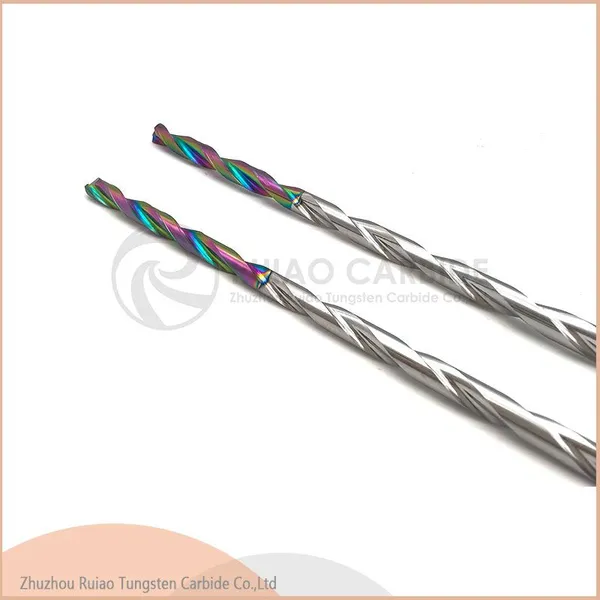

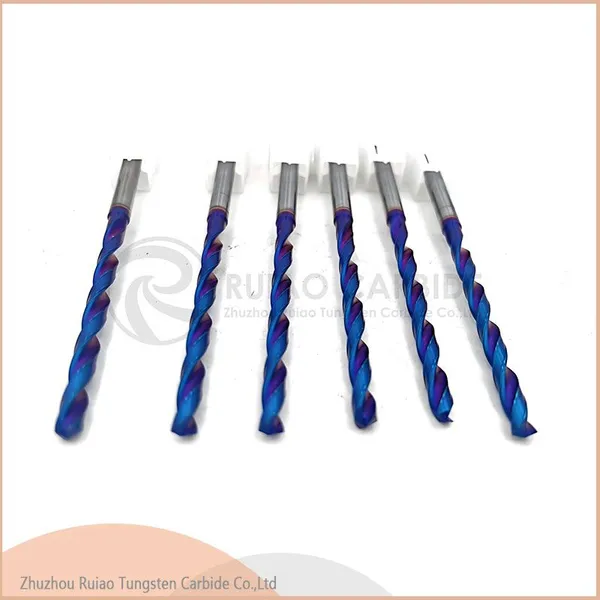

Tungsten Carbide Drill Bits
Tungsten carbide drill bits are mainly made of tungsten carbide (WC) with cobalt (Co) as binder via powder metallurgy process. They feature ultra-high hardness, excellent wear resistance and heat resistance, ideal for drilling hard materials and machining high-precision holes, widely used in CNC machining, mold manufacturing, auto parts, aerospace and other industries.
1. Core Performance (vs HSS Drill Bits)
Hardness: HRA 90–93 (equivalent to HRC 78–82), capable of drilling hardened steel up to HRC 60+
Service Life: 5–10 times longer than HSS bits, cost-effective for mass production
Heat Resistance: Maintain cutting performance at 800–1000℃, suitable for high-speed machining
Precision: High rigidity with low runout, ensuring high hole accuracy and smooth finish, mostly no secondary finishing needed
Drawbacks: High brittleness, vulnerable to impact; strict requirements on machine tools and clamping; higher cost, professional grinding equipment required for resharpening
2. Main Types & Features
Solid Tungsten Carbide Drill Bits (Most Popular)
Integrally made of carbide with fine-grain material and TiAlN coating.Advantages: supreme rigidity, good self-centering, high precision and smooth chip removal, fit for deep hole and precision machining.Application: CNC machining centers, high-speed machine tools; carbon steel, stainless steel, hardened steel, cast iron, etc.
Brazed Carbide Drill Bits
Steel body welded with carbide cutting head, balancing toughness and hardness.Advantages: lower cost than solid carbide bits, good rigidity, optional internal cooling.Application: medium-load stable cutting; steel, cast iron and non-ferrous metals.
Replaceable Head Drill Bits
Steel drill body with interchangeable carbide heads for repeated use of shank.Advantages: low long-term cost, quick head replacement, precision close to brazed type.Application: large-batch fixed-diameter drilling; CNC machining centers and lathes.
Indexable Insert Drill Bits
Steel holder fitted with indexable carbide inserts, directly replace worn inserts.Advantages: economical, fast tool change, wide applicable aperture range (2D–5D).Application: lathes and general machine tools; rough machining of mild steel, cast iron and aluminum.
3. Key Parameters & Selection Guide
Point Angle: Standard 118° for general use; 135° for stainless steel & hard materials for better centering
Helix Angle: 30°–35° for common steel; 40°–45° for aluminum & copper for better chip removal; 15°–20° for hard materials to enhance rigidity
Coatings: TiN (golden, wear-resistant); TiAlN (purple-black, heat-resistant, preferred choice); AlTiN (super-hard, high temperature resistance)
Cooling Mode: Internal cooling is preferred to deliver coolant directly to cutting area and prevent edge chipping; sufficient external coolant flow is necessary if internal cooling is unavailable
Clamping Requirement: Total runout ≤0.02mm, ≤0.01mm for small diameter bits; hydraulic or heat-shrink tool holders are recommended
4. Applicable Materials & Machining Scope
✅ Recommended materials: carbon steel, alloy steel, mold steel, hardened steel (HRC 50–68), stainless steel, cast iron, ductile iron, aluminum alloy, titanium alloy❌ Not recommended: pure copper (easy to cause built-up edge), soft wood, plastic (easy thermal melting), working conditions with severe impact load such as hand-held electric hammers
5. Operation Tips (Prevent Edge Chipping & Extend Service Life)
Adopt high-rigidity machine tools and high rotating speed (≥8000rpm), avoid outdated equipment
Speed & feed rate: low speed & medium feed for hard/hardened steel; high speed & large feed for aluminum and mild steel
Keep flute unobstructed for smooth chip removal; retract drill bit to remove chips when drilling holes deeper than 3 times diameter
Resharpen worn bits with professional tools instead of manual grinding to avoid edge damage
6. Performance Comparison Chart
| Properties | Tungsten Carbide Drill Bit | HSS Drill Bit |
|---|---|---|
| Hardness | HRA 90–93 | HRC 62–68 |
| Service Life | Long | Short |
| Applicable Speed | High (8000–30000rpm) | Low (≤3000rpm) |
| Price | Higher | Economical |
| Toughness | Poor, impact-sensitive | Good |
7. Common Specifications
Diameter: 1–20mm (common size), max up to 50mm
Shank Type: straight shank (≤12mm), taper shank (≥12mm), internal cooling shank
Length: standard length (3D–5D), extended length (8D–15D for deep holes), short length (1.5D for high rigidity)
