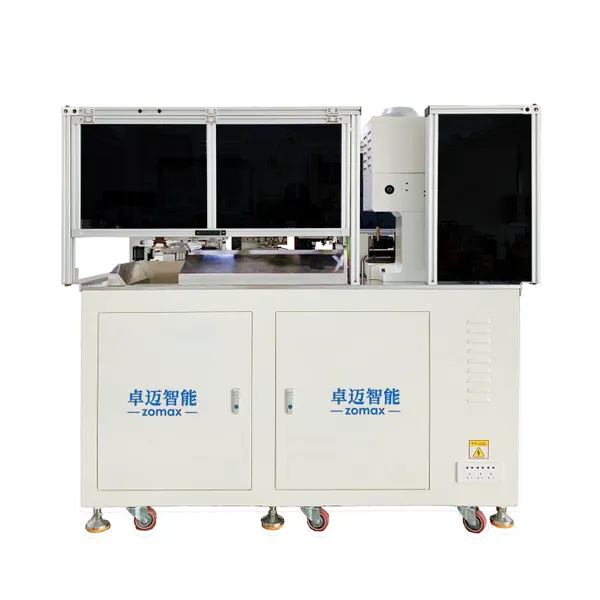

Rubber-housed Terminal Crimping MachineNegotiableMOQ: 3 Units
It can perform multiple tasks simultaneously, including cutting, stripping, crimping terminals, inserting rubber shells, and twisting and tinning wires. With a production efficiency of 600 cycles per hour, it can produce multiple outputs for different rubber shells, achieving up to 1800 pieces per hour. The pull-type wire feeding system is servo-controlled, allowing for wire lengths to be precise to 0.01mm. It is suitable for terminating and inserting rubber shells for multiple electronic wires ranging from 2P to 12P, and is compatible with terminals such as 1.0, 1.25, 2.0, and 2.54.
A CCD visual inspection system can be installed to detect defective rubber inserts and perform color sorting.
The Japan Solu pressure management system can be installed to detect poor crimping of terminals.
By adopting an Ethernet bus controller, communication time is significantly reduced, resulting in a 50% increase in production efficiency. In case of abnormal insertion of rubber shells or crimping, defective products are automatically separated.
The human-machine interface features digital control for thread trimming and stripping with precision down to 0.01, allowing for arbitrary color matching of electronic wires, and boasts powerful functionality with flexible transformations.
Using higher-quality components, the insert-moulded shell machine boasts stronger performance, higher precision, and a longer lifespan.
