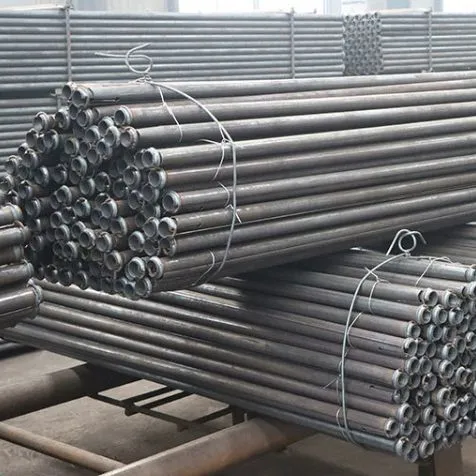

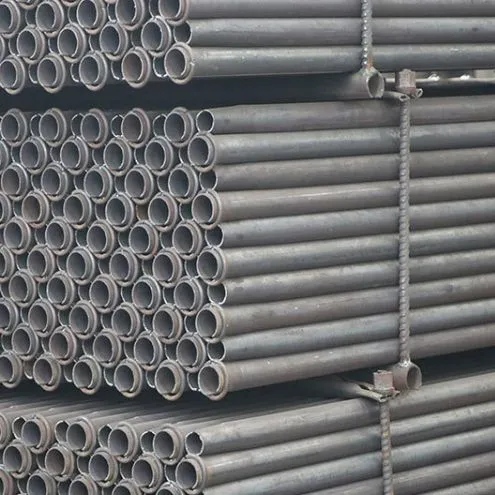

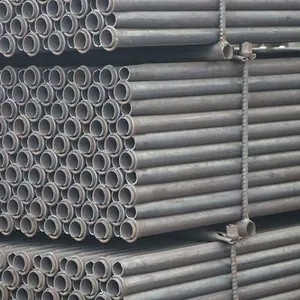

Carbon Steel Hollow Anchor Bolt 36mm With Nut and Washer for Tunnel Reinforcement
US$ 6.00
100 - 499 Meters
US$ 4.50
≥500 Meters
Key Specifications
Get Latest Price
Shape:
Round
Application:
Foundation Construction
Model Number:
36
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision Self-Drilling Hollow Anchor Bolt 36mm for Mine Shaft SupportUS$ 4.50 - 6.00MOQ: 100 Meters -
Threaded Hollow Anchor Rod 36mm for Soil Nailing and Retaining Wall ConstructionUS$ 4.50 - 6.00MOQ: 100 Meters
-
R25N Full Thread Hollow Anchor Bolt for Underground Construction SupportUS$ 4.50 - 6.00MOQ: 100 Meters
-
Hollow Grouting Anchor Bolt R32N for Railway Slope Stabilization ProjectsUS$ 4.50 - 6.00MOQ: 100 Meters
-
R32S Easy Installation Hollow Anchor Rod for Building Foundation ReinforcementUS$ 4.50 - 6.00MOQ: 100 Meters
Shape
Round
Application
Foundation Construction
Model Number
36
Brand Name
runcheng
Place of Origin
Shandong, China
Material
Foundation Construction
Product name
Hollow Grouting Anchor Bolt
Advantage
Professional Technical Support
Payment terms
30%T/T Advance + 70% Balance
Product Display
PRODUCT SPECIFICATIONS
Self drilling anchor bar with R25, R32, R38, R51, T30, T40, T52, T73, T76 etc.
Plate Specification
Type |
Size(mm) |
Thickness(mm) |
Hole diameter(mm) |
Weight(kg) |
R25N |
150x150 |
8 |
30 |
1.4 |
R32L,R32N |
200x200 |
10 |
35 |
3 |
R32S, R32SS |
200x200 |
12 |
35 |
3.3 |
R38N |
200x200 |
12 |
41 |
3.6 |
R51L |
200x200 |
30 |
60 |
8.8 |
R51N |
250x250 |
40 |
60 |
18.5 |
T30 |
200x200 |
8 |
36 |
2.46 |
T40-20mm |
200x200 |
12 |
54 |
3.5 |
T40-16mm |
200x200 |
15 |
54 |
4.58 |
T52 |
220x220 |
35 |
65 |
12.1 |
T73 |
250x250 |
40 |
80 |
18 |
T76 |
250x250 |
40 |
80 |
18 |
T103 |
300x300 |
50 |
110 |
32.6 |

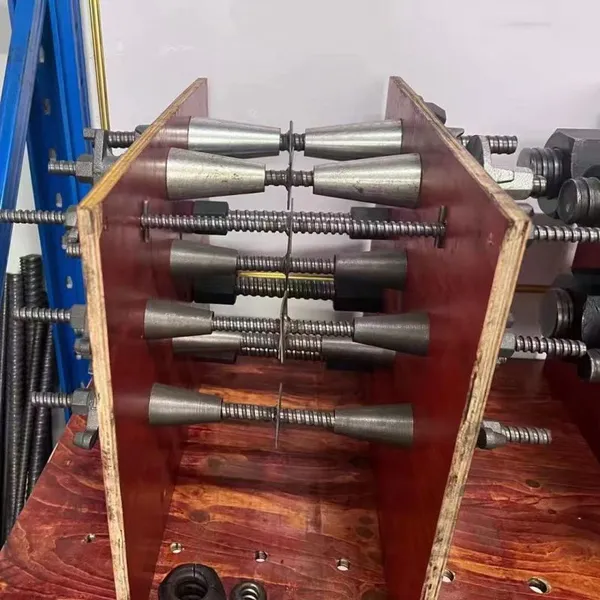

Coupler Specification
Type |
Outside Diameter(mm) |
Length(mm) |
Weight |
R25 |
36 |
150 |
0.6 |
R32L |
42 |
145 |
0.72 |
R32N |
42 |
160 |
0.8 |
R32S, R32SS |
42 |
190 |
0.96 |
R38 |
52 |
220 |
1.8 |
R51L |
63 |
140 |
1.26 |
R51N |
63 |
200 |
1.9 |
T30 |
38 |
105 |
0.42 |
T40-20mm |
54 |
140 |
1.15 |
T40-16mm |
57 |
140 |
1.54 |
T52 |
70 |
160 |
2.3 |
T73 |
95 |
235 |
4.3 |
T76N |
95 |
200 |
4.3 |
T76S |
9 |
220 |
5.35 |
T103 |
123 |
255 |
7.45 |
Self Drilling Hollow Grouting Anchor Bar specification
Type |
Inner diameter |
Ultimate load |
Yield load capacity |
Weight |
||||
(mm) |
capacity(KN) |
(KN) |
(KG) |
|||||
R Thread |
||||||||
R25N |
14 |
200 |
150 |
2.3 |
||||
R32N |
21 |
280 |
230 |
2,9 |
||||
18.5 |
280 |
230 |
3.4 |
|||||
R32S |
16 |
360 |
280 |
3.6 |
||||
R32SS |
15.5 |
405 |
350 |
3.8 |
||||
R38N |
21 |
500 |
400 |
4.8 |
||||
19 |
500 |
400 |
5.5 |
|||||
R51L |
36 |
550 |
450 |
7 |
||||
R51N |
33 |
800 |
630 |
8.4 |
||||
T Thread |
||||||||
T30 |
11 |
320 |
260 |
3.41 |
||||
14 |
275 |
220 |
2.87 |
|||||
16 |
245 |
190 |
2.7 |
|||||
T40 |
16 |
660 |
525 |
6.6 |
||||
20 |
540 |
425 |
5.6 |
|||||
T52 |
26 |
925 |
730 |
9.87 |
||||
T73 |
53 |
1160 |
970 |
14.2 |
||||
56 |
1035 |
830 |
10.75 |
|||||
45 |
1585 |
1270 |
17.8 |
|||||
35 |
1865 |
1430 |
21.2 |
|||||
T76S |
45 |
1900 |
1500 |
19.7 |
||||
T76N |
51 |
1600 |
1200 |
15 |
||||
T103 |
78 |
2270 |
1800 |
25.3 |
||||
51 |
3660 |
2670 |
44.6 |
|||||
T111L |
82 |
2640 |
2000 |
25 |
||||
T111N |
75 |
3650 |
2750 |
34.5 |
||||
T127 |
111 |
2320 |
2030 |
28.9 |
||||
T130 |
60 |
7940 |
5250 |
75 |
||||
Nut Specifications
Type |
Key size(mm) |
Length(mm) |
Weight(kg) |
R25N |
41 |
35 |
0.25 |
R32L, R32N |
46 |
45 |
0.35 |
R32S,R32SS |
46 |
65 |
0.53 |
R38N |
50 |
60 |
0.5 |
R51L, R51N |
75 |
70 |
1.5 |
T30 |
46 |
35 |
0.36 |
T40 |
65 |
50 |
0.85 |
T52 |
80 |
70 |
2.35 |
T73 |
95 |
70 |
2.2 |
T76 |
100 |
80 |
2.66 |
T103 |
125 |
80 |
3.42 |
Bit Specification
Type |
Specification |
Material |
Weight(kg) |
Height(mm) |
Steel Cross bit(EX) |
R25 / D42mm |
42CrMo |
0.28 |
56 |
R32 / D45mm |
42CrMo |
0.31 |
56 |
|
R32 /D51mm |
42CrMo |
0.36 |
56 |
|
R38/D76mm |
42CrMo |
12 |
80 |
|
R38 /D90mm |
42CrMo |
1.53 |
80 |
|
R51 /D115mm |
42CrMo |
3.61 |
100 |
|
T30/ D51mm |
42CrMo |
0.41 |
56 |
|
T40 / D76mm |
42CrMo |
1.21 |
80 |
|
T76/ D130mm |
42CrMo |
3.92 |
100 |
|
T76/ D150mm |
42CrMo |
6.1 |
110 |
|
Cross button bit(EXX) |
R25 /D42mm |
40CR |
0.3 |
58 |
R32/ D45mm |
40CR |
0.38 |
56 |
|
R32 / D51mm |
40CR |
0.42 |
56 |
|
R38 / D76mm |
40CR |
1.27 |
85 |
|
T30/ D51mm |
40CR |
0.42 |
56 |
|
T40/D76mm |
40CR |
1.27 |
80 |
|
T40/D90mm |
40CR |
21 |
90 |
|
R51 /D100mm |
40CR |
3.2 |
90 |
|
R51 /D115mm |
40CR |
3.5 |
100 |
|
T76/ D130mm |
40CR |
3.61 |
100 |
|
T76/ D150mm |
40CR |
6.27 |
125 |
|
Drill button bit(ESS) |
R25 / D42mm |
40CR |
0.33 |
60 |
R32/ D45mm |
40CR |
0.35 |
60 |
|
R32/ D51mm |
40CR |
0.49 |
60 |
|
R38/D76mm |
40CR |
1.447 |
82 |
|
R38/ D90mm |
40CR |
2.73 |
100 |
|
R51/D100mm |
40CR |
2.81 |
100 |
|
R51 /D115mm |
40CR |
3.72 |
110 |
|
T76/ D130mm |
40CR |
6.78 |
120 |
Note:We can produce other standard as the customers' requirement
Product spotlights
Feature highlights
The self-drilling hollow anchor bar offers fast drilling and installation by combining drilling, anchoring, and grouting in one
step. Its hollow core allows for debris removal during drilling and immediate grout injection, ensuring efficient performance.
Made from robust Q235 carbon steel, it features continuous threads for customizable length adjustments and is suitable for tunnel pre-support, slope stabilization, and mining projects.
step. Its hollow core allows for debris removal during drilling and immediate grout injection, ensuring efficient performance.
Made from robust Q235 carbon steel, it features continuous threads for customizable length adjustments and is suitable for tunnel pre-support, slope stabilization, and mining projects.
Supplier highlights
This supplier is a manufacturer and trader. It offers flexible customization, full customization, design customization, and sample customization. The positive review rate is 100.0%.
Our Advantages
1.Own Factory with 10+ years Industry Experience2.Advanced Manufacturing Equipment
3.Skilled Research &Development Department
4.Full-time Quality Control Department
5.Reliable Pre-sales&After-sales Service Department
6.Competitive Price,Superior Quality and On-time Deliery
3.Skilled Research &Development Department
4.Full-time Quality Control Department
5.Reliable Pre-sales&After-sales Service Department
6.Competitive Price,Superior Quality and On-time Deliery
Other Products
Company Profile
Shandong Runcheng Metal Materials Co., Ltd. was established in Liaocheng City, Shandong Province in November 2012. It has a production area of more than 10,000 square meters and a storage area of 20,000 square meters.It has CNC lathes, CNC drilling machines,CNC milling machines,CNC welding machines,and CNC laser cutting machines,stamping equipment, thermal processing equipment and more than 50 world-leading production equipment, it is a manufacturer specializing in the production of geological drill pipes, grouting pipes, anchors, and anchor rods. In addition, Shandong Runcheng has good resources in drilling consumable parts such as drill bits and reamers, which makes Shandong Runcheng a leading one-stop supplier of geological drilling and tunnel engineering consumables. Our products are now widely exported to Asia, South America, and Africa, and have won a good reputation.There are also many domestic trading companies that purchase and export from us. We look forward to communicating with the world.
Packaging & Shipping
FAQ
1. Q: Are you manufacture or trade company?
A: We are manufacture specialized in steel casing pipes, we have 1 facotory in China, welcome to visit us at any time.And also we have own trading department to export goods.
2. Q: How can I get the samples?
A: If you need some samples to test, we can send small free pipe sampe.You should pay for the transportation freight fee only.
3. Q: How much the transportation freight of samples?
A: The freight depends on the weight and packing size and your area.
4. Q: How long can I expect to get the sample?
A: The samples will be ready for delivery within one week. The samples will be sent via express and arrive in 4-7 days.
5. Q: Can we have our Logo or company name to be printed on your products or package?
A: Sure. Your Logo can be print on your pipes when your quantity is reach our requirement.
A: We are manufacture specialized in steel casing pipes, we have 1 facotory in China, welcome to visit us at any time.And also we have own trading department to export goods.
2. Q: How can I get the samples?
A: If you need some samples to test, we can send small free pipe sampe.You should pay for the transportation freight fee only.
3. Q: How much the transportation freight of samples?
A: The freight depends on the weight and packing size and your area.
4. Q: How long can I expect to get the sample?
A: The samples will be ready for delivery within one week. The samples will be sent via express and arrive in 4-7 days.
5. Q: Can we have our Logo or company name to be printed on your products or package?
A: Sure. Your Logo can be print on your pipes when your quantity is reach our requirement.
