Product Display
PRODUCT SPECIFICATIONS

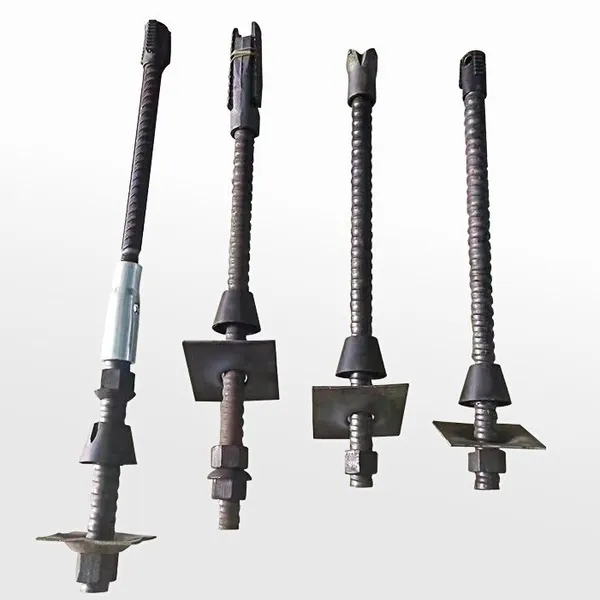

Self drilling anchor bar with R25, R32, R38, R51, T30, T40, T52, T73, T76 etc.
Plate Specification
Type |
Size(mm) |
Thickness(mm) |
Hole diameter(mm) |
Weight(kg) |
R25N |
150x150 |
8 |
30 |
1.4 |
R32L,R32N |
200x200 |
10 |
35 |
3 |
R32S, R32SS |
200x200 |
12 |
35 |
3.3 |
R38N |
200x200 |
12 |
41 |
3.6 |
R51L |
200x200 |
30 |
60 |
8.8 |
R51N |
250x250 |
40 |
60 |
18.5 |
T30 |
200x200 |
8 |
36 |
2.46 |
T40-20mm |
200x200 |
12 |
54 |
3.5 |
T40-16mm |
200x200 |
15 |
54 |
4.58 |
T52 |
220x220 |
35 |
65 |
12.1 |
T73 |
250x250 |
40 |
80 |
18 |
T76 |
250x250 |
40 |
80 |
18 |
T103 |
300x300 |
50 |
110 |
32.6 |
Coupler Specification
Type |
Outside Diameter(mm) |
Length(mm) |
Weight |
R25 |
36 |
150 |
0.6 |
R32L |
42 |
145 |
0.72 |
R32N |
42 |
160 |
0.8 |
R32S, R32SS |
42 |
190 |
0.96 |
R38 |
52 |
220 |
1.8 |
R51L |
63 |
140 |
1.26 |
R51N |
63 |
200 |
1.9 |
T30 |
38 |
105 |
0.42 |
T40-20mm |
54 |
140 |
1.15 |
T40-16mm |
57 |
140 |
1.54 |
T52 |
70 |
160 |
2.3 |
T73 |
95 |
235 |
4.3 |
T76N |
95 |
200 |
4.3 |
T76S |
9 |
220 |
5.35 |
T103 |
123 |
255 |
7.45 |
Self Drilling Hollow Grouting Anchor Bar specification
Type |
Inner diameter |
Ultimate load |
Yield load capacity |
Weight |
||||
(mm) |
capacity(KN) |
(KN) |
(KG) |
|||||
R Thread |
||||||||
R25N |
14 |
200 |
150 |
2.3 |
||||
R32N |
21 |
280 |
230 |
2,9 |
||||
18.5 |
280 |
230 |
3.4 |
|||||
R32S |
16 |
360 |
280 |
3.6 |
||||
R32SS |
15.5 |
405 |
350 |
3.8 |
||||
R38N |
21 |
500 |
400 |
4.8 |
||||
19 |
500 |
400 |
5.5 |
|||||
R51L |
36 |
550 |
450 |
7 |
||||
R51N |
33 |
800 |
630 |
8.4 |
||||
T Thread |
||||||||
T30 |
11 |
320 |
260 |
3.41 |
||||
14 |
275 |
220 |
2.87 |
|||||
16 |
245 |
190 |
2.7 |
|||||
T40 |
16 |
660 |
525 |
6.6 |
||||
20 |
540 |
425 |
5.6 |
|||||
T52 |
26 |
925 |
730 |
9.87 |
||||
T73 |
53 |
1160 |
970 |
14.2 |
||||
56 |
1035 |
830 |
10.75 |
|||||
45 |
1585 |
1270 |
17.8 |
|||||
35 |
1865 |
1430 |
21.2 |
|||||
T76S |
45 |
1900 |
1500 |
19.7 |
||||
T76N |
51 |
1600 |
1200 |
15 |
||||
T103 |
78 |
2270 |
1800 |
25.3 |
||||
51 |
3660 |
2670 |
44.6 |
|||||
T111L |
82 |
2640 |
2000 |
25 |
||||
T111N |
75 |
3650 |
2750 |
34.5 |
||||
T127 |
111 |
2320 |
2030 |
28.9 |
||||
T130 |
60 |
7940 |
5250 |
75 |
||||
Nut Specifications
Type |
Key size(mm) |
Length(mm) |
Weight(kg) |
R25N |
41 |
35 |
0.25 |
R32L, R32N |
46 |
45 |
0.35 |
R32S,R32SS |
46 |
65 |
0.53 |
R38N |
50 |
60 |
0.5 |
R51L, R51N |
75 |
70 |
1.5 |
T30 |
46 |
35 |
0.36 |
T40 |
65 |
50 |
0.85 |
T52 |
80 |
70 |
2.35 |
T73 |
95 |
70 |
2.2 |
T76 |
100 |
80 |
2.66 |
T103 |
125 |
80 |
3.42 |
Bit Specification
Type |
Specification |
Material |
Weight(kg) |
Height(mm) |
|
Steel Cross bit(EX) |
R25 / D42mm |
42CrMo |
0.28 |
56 |
|
R32 / D45mm |
42CrMo |
0.31 |
56 |
||
R32 /D51mm |
42CrMo |
0.36 |
56 |
||
R38/D76mm |
42CrMo |
12 |
80 |
||
R38 /D90mm |
42CrMo |
1.53 |
80 |
||
R51 /D115mm |
42CrMo |
3.61 |
100 |
||
T30/ D51mm |
42CrMo |
0.41 |
56 |
||
T40 / D76mm |
42CrMo |
1.21 |
80 |
||
T76/ D130mm |
42CrMo |
3.92 |
100 |
||
T76/ D150mm |
42CrMo |
6.1 |
110 |
||
Cross button bit(EXX) |
R25 /D42mm |
40CR |
0.3 |
58 |
|
R32/ D45mm |
40CR |
0.38 |
56 |
||
R32 / D51mm |
40CR |
0.42 |
56 |
||
R38 / D76mm |
40CR |
1.27 |
85 |
||
T30/ D51mm |
40CR |
0.42 |
56 |
||
T40/D76mm |
40CR |
1.27 |
80 |
||
T40/D90mm |
40CR |
21 |
90 |
||
R51 /D100mm |
40CR |
3.2 |
90 |
||
R51 /D115mm |
40CR |
3.5 |
100 |
||
T76/ D130mm |
40CR |
3.61 |
100 |
||
T76/ D150mm |
40CR |
6.27 |
125 |
||
Drill button bit(ESS) |
R25 / D42mm |
40CR |
0.33 |
60 |
|
R32/ D45mm |
40CR |
0.35 |
60 |
||
R32/ D51mm |
40CR |
0.49 |
60 |
||
R38/D76mm |
40CR |
1.447 |
82 |
||
R38/ D90mm |
40CR |
2.73 |
100 |
||
R51/D100mm |
40CR |
2.81 |
100 |
||
R51 /D115mm |
40CR |
3.72 |
110 |
||
T76/ D130mm |
40CR |
6.78 |
120 |
Note:We can produce other standard as the customers' requirement
Product spotlights
Feature highlights
The self-drilling hollow anchor bar offers fast drilling and installation by combining drilling, anchoring, and grouting in one
step. Its hollow core allows for debris removal during drilling and immediate grout injection, ensuring efficient performance.
Made from robust Q235 carbon steel, it features continuous threads for customizable length adjustments and is suitable for tunnel pre-support, slope stabilization, and mining projects.
