Home > Computer Products > Server & Workstation > Rack Server > Dell PowerEdge R6615 1U Rack Server With 128 Memory and Direct Liquid Cooling，custom Storage Server，2 Way Server

Dell PowerEdge R6615 1U Rack Server With 128 Memory and Direct Liquid Cooling，custom Storage Server，2 Way Server

Dell PowerEdge R6615 1U Rack Server With 128 Memory and Direct Liquid Cooling，custom Storage Server，2 Way Server thumbnail-1
Dell PowerEdge R6615 1U Rack Server With 128 Memory and Direct Liquid Cooling，custom Storage Server，2 Way Server thumbnail-2
Dell PowerEdge R6615 1U Rack Server With 128 Memory and Direct Liquid Cooling，custom Storage Server，2 Way Server thumbnail-3
Dell PowerEdge R6615 1U Rack Server With 128 Memory and Direct Liquid Cooling，custom Storage Server，2 Way Server thumbnail-4
Dell PowerEdge R6615 1U Rack Server With 128 Memory and Direct Liquid Cooling，custom Storage Server，2 Way Server photo-1
Dell PowerEdge R6615 1U Rack Server With 128 Memory and Direct Liquid Cooling，custom Storage Server，2 Way Server photo-2
Dell PowerEdge R6615 1U Rack Server With 128 Memory and Direct Liquid Cooling，custom Storage Server，2 Way Server photo-3
Dell PowerEdge R6615 1U Rack Server With 128 Memory and Direct Liquid Cooling，custom Storage Server，2 Way Server photo-4
Negotiable MOQ: 1 Combo (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Other
Processor Type:
AMD EPYC
Operating System:
Windows Server
Contact Supplier Request Quote Chat Now
Beijing Qianxing Jietong Technology Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Other
Processor Type AMD EPYC
Operating System Windows Server
Power Supply Single PSU
Storage Capacity >1TB
Instruction System CISC
Max. CPUs 1
Number of CPu Threads Other
Supporting Memory Capacity >1TB
System Architecture X86 Server
Network Connectivity 1GbE
Server Form Factor 1U
Management Interface iDRAC
Storage Type Hybrid Storage(Combination of HDDs and SSDs)
Form Factor 1U
RAM Capacity 128GB

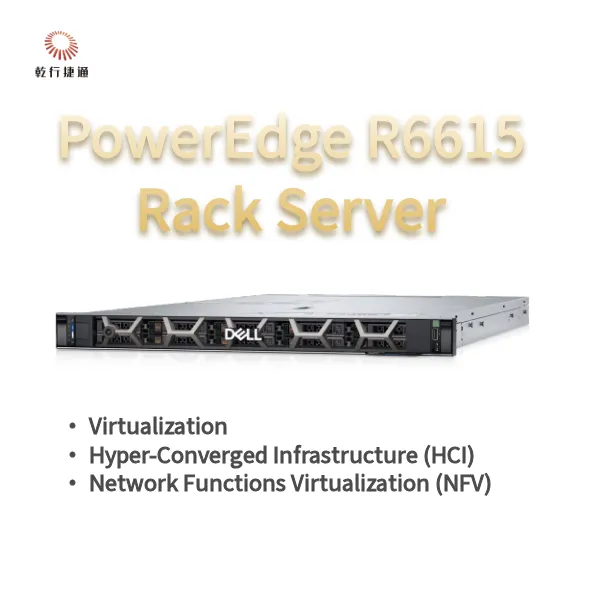

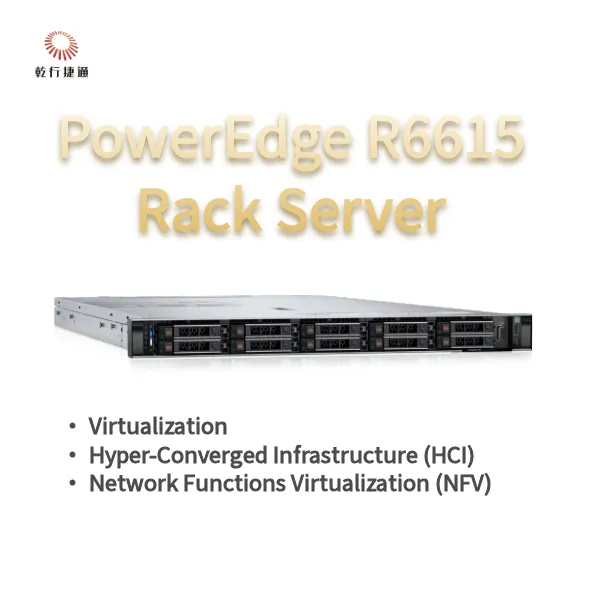

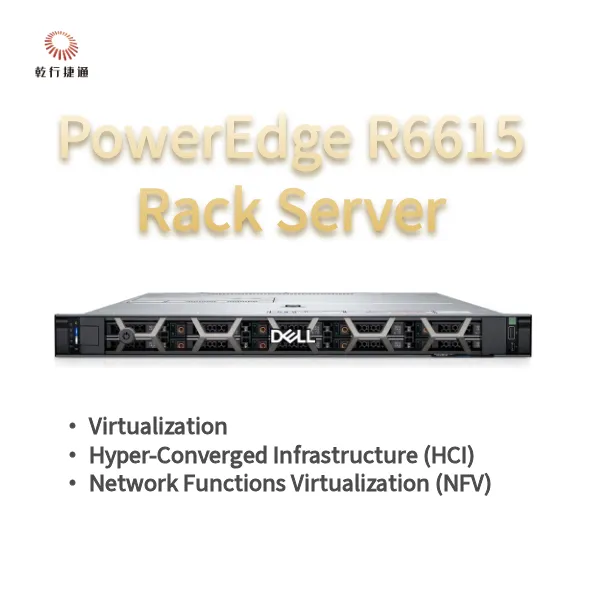

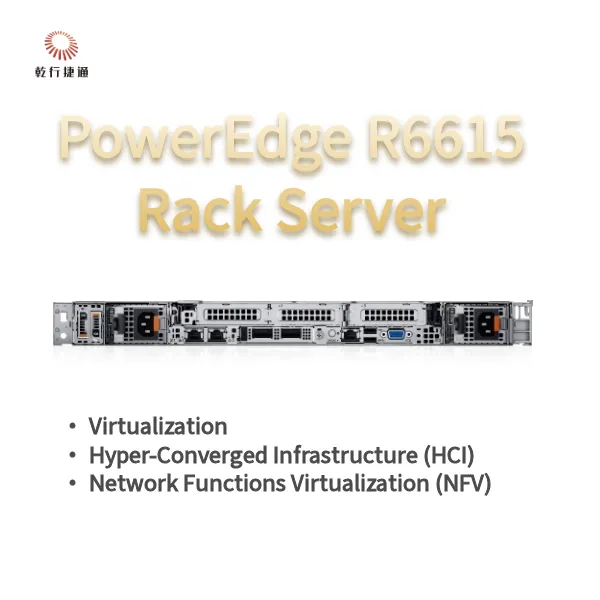

Dell PowerEdge R6615 1U Rack Server Overview

The Dell PowerEdge R6615 is a 1U, single-socket rack server designed to deliver exceptional performance per investment dollar for modern data centers. This server provides powerful performance and flexible, low-latency storage options in both air and Direct Liquid Cooling configurations.


Technical Specifications

Processor One AMD EPYC 4th Generation 9004 Series with up to 128 cores
Memory

  • 12 DDR5 DIMM slots, supports RDIMM 3 TB max, speed up to 4800 MT/s

  • Supports registered ECC DDR5 DIMMs only
Storage Controllers

  • Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i

  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB

  • External HBA (non-RAID): HBA355e

  • Software Raid: S160
Drive Bays

Front bays:

  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB

  • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB

  • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB

  • Up to 14 x EDSFF E3.S Gen5 NVMe (SSD) max 107.52 TB

  • Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB

Rear bays:

  • Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB

  • Up to 2 x EDSFF E3.S Gen5 NVMe (SSD) max 15.36 TB
Power Supplies

  • 1800 W Titanium 200-240 V AC or 240 HVDC, hot swap redundant

  • 1400 W Platinum 100-240 V AC or 240 HVDC, hot swap redundant

  • 1400 W Titanium 277 V AC or 336 HVDC, hot swap redundant

  • 1100 W Titanium 100-240 V AC or 240 HVDC, hot swap redundant

  • 1100 W LVDC -48 - -60 VDC hot swap redundant

  • 800 W Platinum 100-240 V AC or 240 HVDC, hot swap redundant

  • 700 W Titanium 200-240 V AC or 240 HVDC, hot swap redundant
Cooling Options

  • Air cooling

  • Optional Direct Liquid Cooling (DLC)

DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans

  • Standard (STD) fans/High performance GOLD (VHP) fans

  • Up to 4 sets (dual fan module) hot plug fans
Dimensions

  • Height - 42.8 mm (1.685 inches)

  • Width - 482 mm (18.97 inches)

  • Depth - 822.89 mm (32.39 inches) with bezel

  • 809.05 mm (31.85 inches) without bezel
Form Factor 1U rack server


Key Features & Benefits

Breakthrough Performance

Delivering innovation for traditional and emerging workloads including dense virtualization, hyper-converged infrastructure (HCI), and Network Function Virtualization (NFV) with OpenStack for Telco.


Scalable Platform Investment

  • -AMD EPYC 4th generation processor delivers up to 50% more core count per single socket platform

  • -DDR5 memory at 4800 MT/s and PCIe Gen5 with double the speed of previous Gen4

  • -Optional Direct Liquid Cooling for efficient cooling of high-performance processors


Enhanced Virtualization Capabilities

  • -Increased virtual machine density with higher core count and memory footprint

  • -Improved application responsiveness with support for up to 2 x single-wide half-length GPUs


Expanded Storage Capacity

  • -Greater memory density with DDR5 supporting up to 3TB of RAM

  • -Lower latency NVMe SSD support in hardware RAID solutions




Management & Security

Embedded Management

  • -iDRAC9

  • -iDRAC Direct

  • -iDRAC RESTful API with Redfish

  • -iDRAC Service Module

  • -Quick Sync 2 wireless module


OpenManage Software

  • -OpenManage Enterprise

  • -OpenManage Power Manager plugin

  • -OpenManage Service plugin

  • -OpenManage Update Manager plugin

  • -CloudIQ for PowerEdge plugin

  • -OpenManage Enterprise Integration for VMware vCenter

  • -OpenManage Integration for Microsoft System Center

  • -OpenManage Integration with Windows Admin Center


Cyber Resilient Architecture

Security is integrated into every phase of the PowerEdge lifecycle with silicon-based root of trust, Multi-Factor Authentication (MFA), and role-based access controls for Zero Trust IT environments.


Security Features

  • -AMD Secure Encrypted Virtualization (SEV)

  • -AMD Secure Memory Encryption (SME)

  • -Cryptographically signed firmware

  • -Data at Rest Encryption (SEDs with local or external key management)

  • -Secure Boot

  • -Secured Component Verification (Hardware integrity check)

  • -Secure Erase

  • -Silicon Root of Trust

  • -System Lockdown (requires iDRAC9 Enterprise or Datacenter)

  • -TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ


Additional Information

Sustainability

The PowerEdge portfolio incorporates recycled materials in products and packaging, with energy-efficient options designed to reduce carbon footprint and lower operational costs.


Dell Technologies Services

Maximize your PowerEdge Servers with comprehensive services including Consulting, ProDeploy, ProSupport suites, and Data Migration - available across 170 locations worldwide.


OEM-ready Version Available

From bezel to BIOS to packaging, servers can be customized to look and feel as if they were designed and built by your organization.


Important Notices

  • -Open packaging carefully and inspect products gently

  • -Product is brand new original unopened equipment

  • -All products include 1 year warranty - buyer responsible for return shipping costs


International Buyers

Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine additional costs prior to purchase.


Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.


International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
