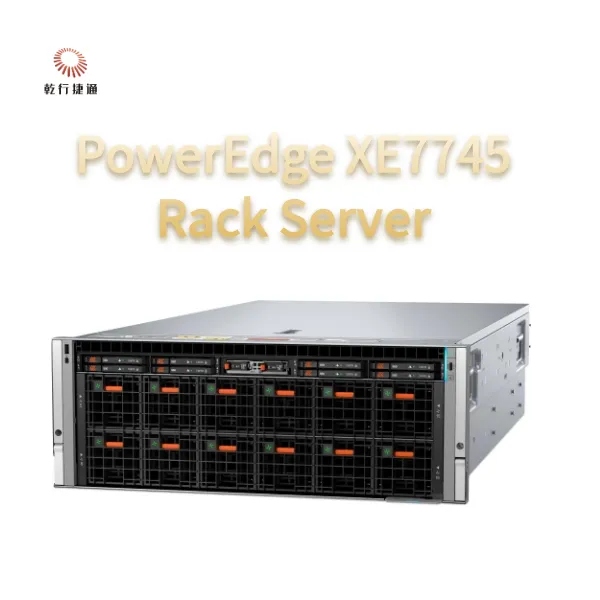

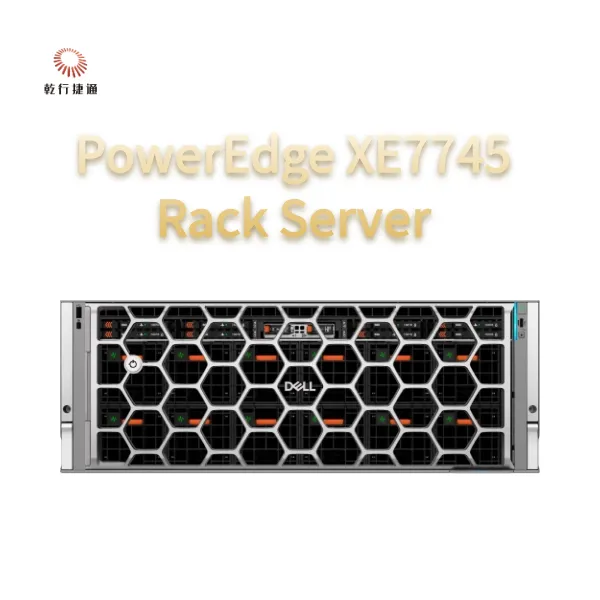

PowerEdge XE7745 Rack Server
Flexible AI Acceleration for Enterprise Insights
The PowerEdge XE7745 empowers enterprise AI insights with flexible air-cooled PCIe GPU configurations for inferencing and model fine-tuning. Experience extreme acceleration for Generative AI and ML/DL training with Dell's first 8-way GPU server.
Technical Specifications
| Feature | Technical Specifications |
|---|---|
| Processor |
Two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor Two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor |
| Memory |
32 DDR5 DIMM slots, supports RDIMM 4 TB max Speeds up to 5600 MT/s on 5th Generation Intel Xeon Scalable processors Speeds up to 4800 MT/s on 4th Generation Intel Xeon Scalable processors Supports registered ECC DDR5 DIMMs only |
| GPU |
8 NVIDIA HGX H100 80GB 700W SXM5 GPUs with NVIDIA NVLink technology 8 NVIDIA HGX H200 141GB 700W SXM5 GPUs with NVIDIA NVLink technology 8 NVIDIA HGX H20 96GB 500W SXM5 GPUs with NVIDIA NVLink technology 8 AMD Instinct MI300X 192GB 750W OAM accelerator with AMD Infinity Fabric connectivity 8 Intel Gaudi 3 128GB 900W OAM accelerator with embedded RoCE ports |
| Storage Controllers |
Internal Controllers (RAID): PERC H965i (Not supported with Intel Gaudi3) Internal boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs Software RAID: S160 |
| Front Bays |
Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB Up to 16 x E3.S NVMe direct drives max 122.88 TB Note: Only 8 x 2.5-inch NVMe SSD drives supported with Intel Gaudi3 |
| Power Supplies |
3200W Titanium 277 VAC or 260-400 VDC, hot swap redundant (US & Canada only) 3000W Titanium 200-240 VAC or 240 VDC (Multi-rated, Intel Gaudi 3 only) 2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant |
| Cooling Options | Air cooling |
| Chipset | Intel ® C741 chipset |
| PCIe | Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length (8 PCIe slots with Intel Gaudi 3) |
| Embedded NIC | 2 x 1 GbE |
| Embedded OSFP | 6 x 800 Gb (Intel Gaudi 3 only) |
| Network Options | 1 x OCP 3.0 (x8 PCIe lanes) |
| Hot Swappable Fans |
Up to six high performance (HPR) gold grade fans in mid tray Up to ten high performance (HPR) gold grade fans on rear (up to 12 with Intel Gaudi 3) |
| Dimensions and Weight |
Height: 263.2 mm (10.36 inches) Width: 482.0 mm (18.97 inches) Depth: 1008.77 mm (39.71 inches) with bezel, 995 mm (39.17 inches) without bezel Weight: up to 114.05 kg (251.44 pounds) |
| Form Factor | 6U rack server |
| Embedded Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module |
| Bezel | Optional LCD bezel or security bezel |
| OpenManage Software | CloudIQ for PowerEdge plugin, OpenManage Enterprise, OpenManage Service plugin, OpenManage Power Manager plugin, OpenManage Update Manager plugin |
| OpenManage Integrations | BMC Truesight, OpenManage Integration with ServiceNow, Red Hat Ansible Modules, Terraform Providers |
| Security |
Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot, Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China |
| Ports |
Front: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA Rear: 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x RJ45 iDRAC9 ethernet port |
| Operating Systems and Hypervisors | Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| OEM-ready Version | Available with custom bezel, BIOS, and packaging. Visit > Solutions > OEM Solutions for details. |
*AMD Instinct MI300X only
** 8 PCIe slots with Intel Gaudi 3
No Compromise AI Infrastructure
The Dell XE7745 6U server is Dell's first 8x GPU platform. Engineered to significantly enhance application performance by driving the most complex GenAI, Machine Learning, Deep Learning (ML/DL) and High Performance Computing workloads (HPC). Features up to 64-core 5th generation Intel Xeon processors and offers the highest GPU memory capacity and bandwidth currently available, making it capable of managing extremely large and complex models and datasets.
Custom GPU Configuration Options
Eight NVIDIA H100, H200 SXM5 700W GPUs, or H20 SXM5 500W GPUs, fully interconnected with NVLink
Eight AMD Instinct MI300X 750W OAM GPUs fully interconnected with Infinity Fabric links
Eight Intel Gaudi 3 900W OAM accelerators with ethernet connectivity w/ embedded RoCE ports
Improve generative AI training performance with GPU-GPU communication and up to 1.5TB* shared coherent GPU memory
Accelerated I/O Throughput
Latest generation technologies including DDR5, PCIe Gen 5.0, and NVMe SSDs
Up to 10 front-facing PCIe Gen 5 slots** and up to 16 drives for optimal expansion
Dell Validated Designs for Generative AI and comprehensive Dell Services offerings
Cyber Resilient Architecture
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations for Zero Trust IT environments.
Autonomous Infrastructure Management
The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Sustainability Features
From recycled materials in products and packaging to innovative energy efficiency options, the PowerEdge portfolio is designed to reduce carbon footprint and lower operation costs. Responsible retirement of legacy systems available through Dell Technologies Services.
Global Support Services
Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, ProDeploy and ProSupport suites, Data Migration and more - available across 170 countries and backed by 60K+ employees and partners.
