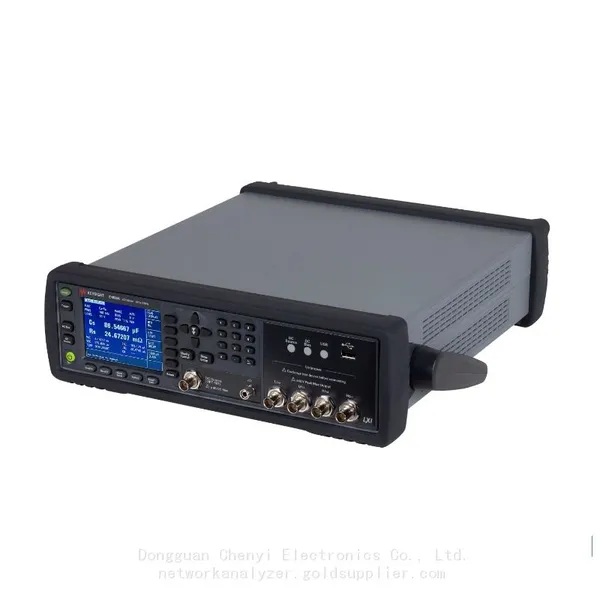

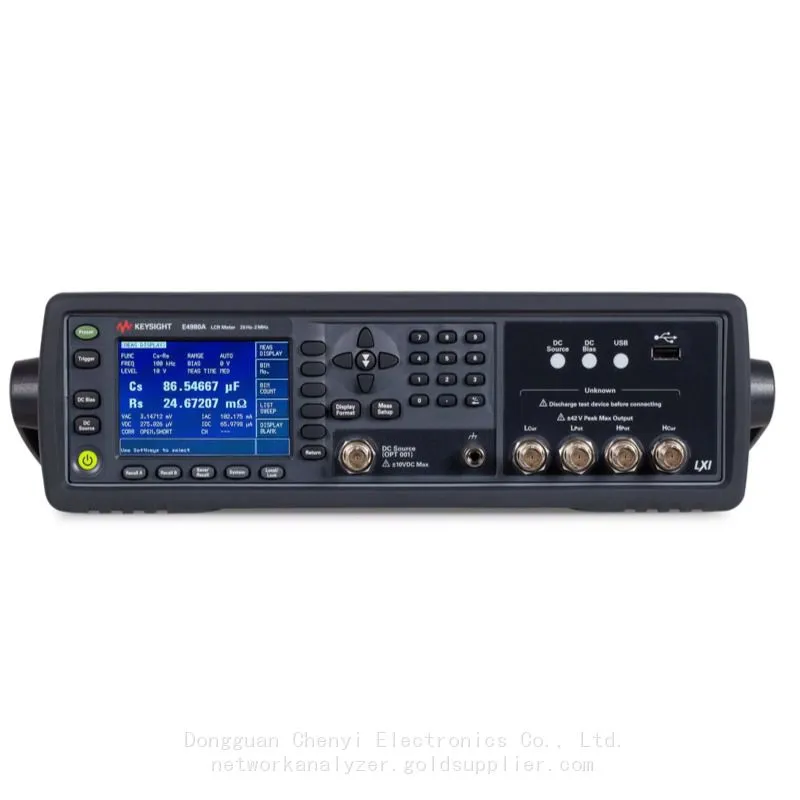

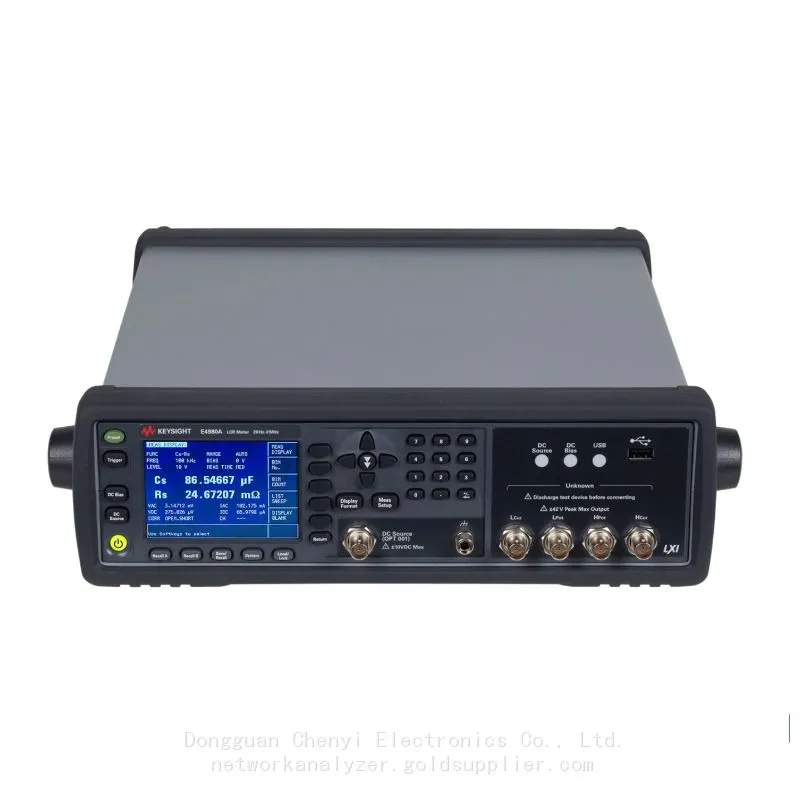

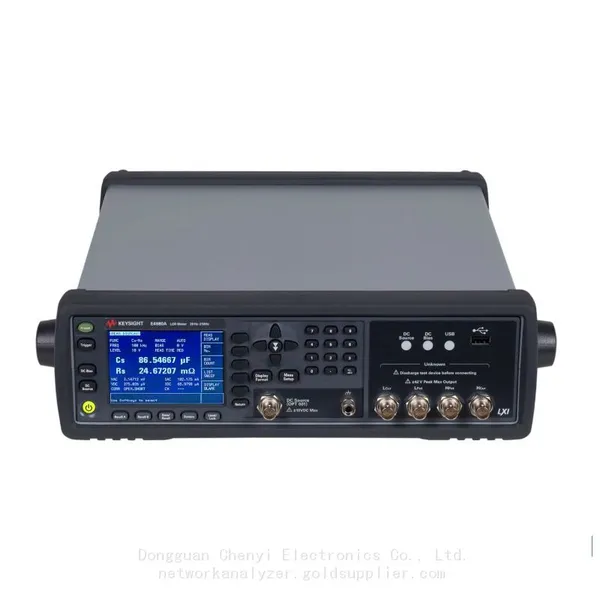

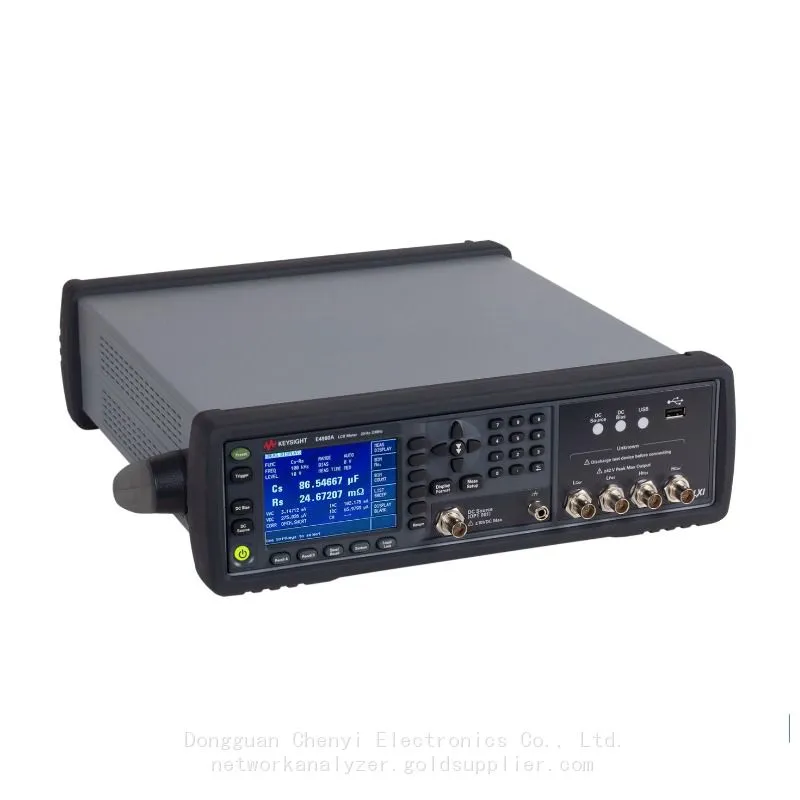

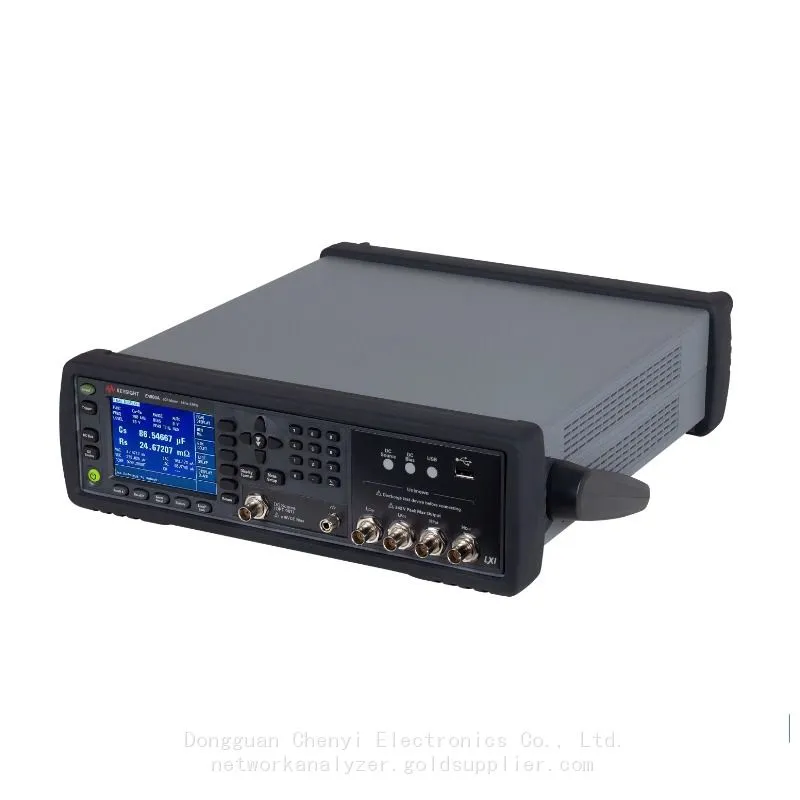

Keysight E4980A Precision LCR Meter E4980AL-052：20 Hz to 500 kHz
E4980A : 20 Hz to 2 MHz
E4980AL-102：20 Hz to 1 MHz
E4980AL-032：20 Hz to 300 kHz
E4980AL-052：20 Hz to 500 kHz
E4980A -001：2 MHz With 40V Bias Source
Provides the best combination of accuracy, speed, and versatility for a wide range of component measurements.
Frequency
• 20 Hz to 2 MHz, with 4-digit resolution in any range; see the E4980BL Precision LCR Meter for
lower price with 300 kHz / 500 kHz / 1 MHz frequencies
Basic accuracy
• 0.05% basic accuracy with superior measurement repeatability at low and high impedance
DC bias
• DC Bias Enhancement (Option 001)
More features
• 20 Vrms test signal (Option 001)
• High-speed measurements: 5.6 ms
• 201 points list sweep

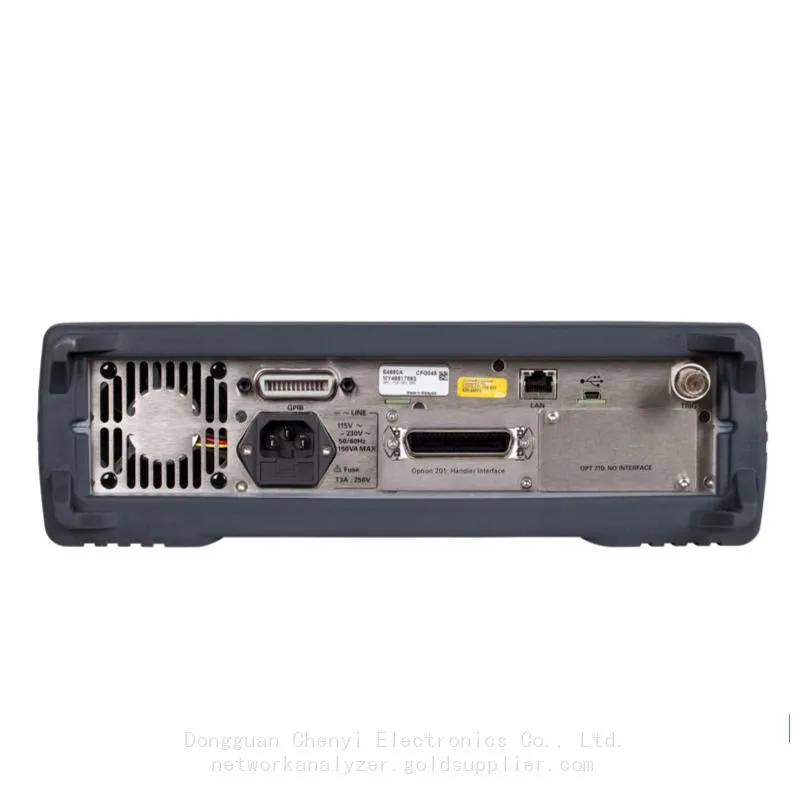

• Versatile PC connectivity (LAN, USB and GPIB)
The E4980B precision LCR meter provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980B is the ultimate tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity. For materials measurements, the E4980B with the N1500A-005/006 materials measurement suite simplifies the measurement process from fixture setup to report generation.
Measurement parameters
• Cp-D, Cp-Q, Cp-G, Cp-Rp
• Cs-D, Cs-Q, Cs-Rs
• Lp-D, Lp-Q, Lp-G, Lp-Rp, Lp-Rdc
• Ls-D, Ls-Q, Ls-Rs, Ls-Rdc
• R-X
• Z-θd, Z-θr
• G-B
• Y- θd, Y-θr
• Vdc-Idc 1
Definitions
• Cp Capacitance value measured with parallel-equivalent circuit model
• Cs Capacitance value measured with series-equivalent circuit model
• Lp Inductance value measured with parallel-equivalent circuit model
• Ls Inductance value measured with series-equivalent circuit model
• D Dissipation factor
• Q Quality factor (inverse of D)
• G Equivalent parallel conductance measured with parallel-equivalent circuit model
• Rp Equivalent parallel resistance measured with parallel-equivalent circuit model
• Rs Equivalent series resistance measured with series-equivalent circuit model
• Rdc Direct-current resistance
• R Resistance
• X Reactance
• Z Impedance
• Y Admittance
• θd Phase angle of impedance/admittance (degree)
• θr Phase angle of impedance/admittance (radian)
• B Susceptance
• Vdc Direct-current voltage
• Idc Direct-current electricity
Deviation measurement function: Deviation from reference value and percentage of deviation fromreference value can be
output as the result.Equivalent circuits for measurement: Parallel, Series
Impedance range selection: Auto (auto range mode), manual (hold range mode)
Trigger mode: Internal trigger (INT), manual trigger (MAN), external trigger (EXT), GPIB trigger (BUS)
