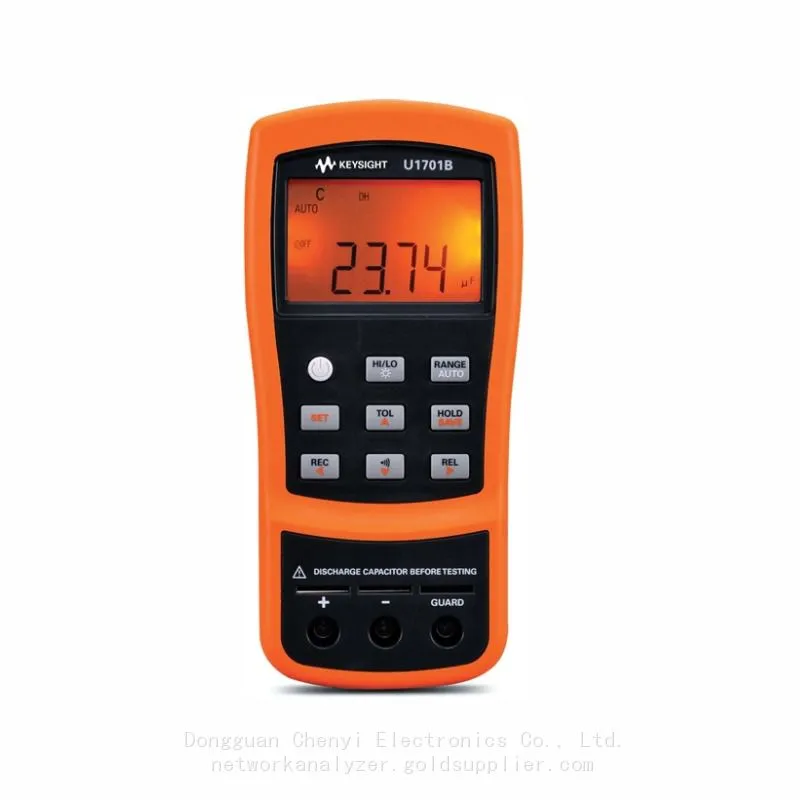

Keysight U1701B Handheld Capacitance Meter 11000 count, dual display
U1701B Capacitance meter, handheld, 11000 count, dual display

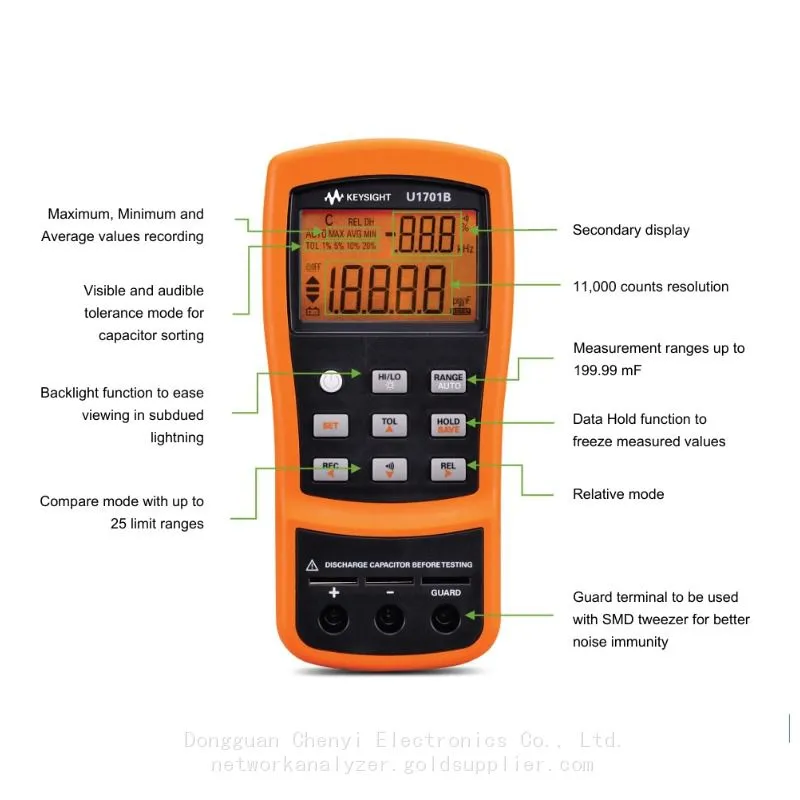

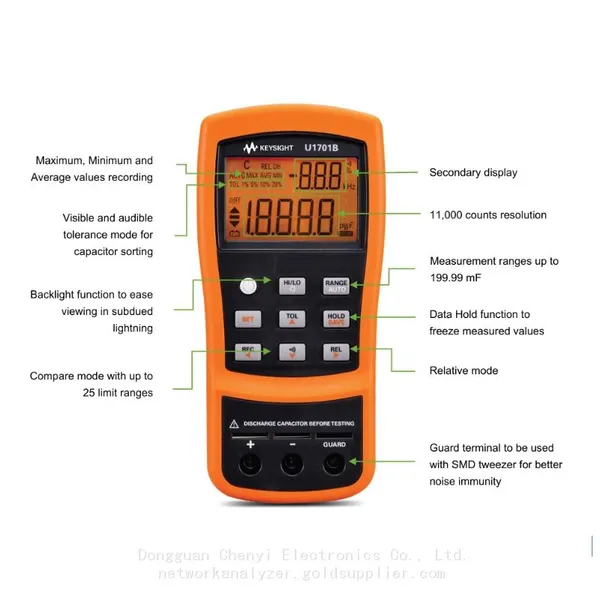

HIGHLIGHTS
• 11,000 counts resolution with dual display
• Wide range selection of 1000pF to 199.00mF
• Visible and audible tolerance mode for easy capacitor sorting
• Compare mode with 25 sets of non-volatile High/Low limit settings
• Records Minimum, Maximum, and Average readings
• Relative mode and Data Hold function
• PC connectivity with optional IR-USB cable
• 3-year warranty standard with every unit
Capacitance meters do not always need to be on the bench. Neither do they always need to strain your budget. Keysight’s new U1701A capacitance meter now puts the capacitance meter into the palm of your hand – while doing random checks across the production floor or performing checks at your inspection or sorting stations. With wide measurement range, and features to ease your sorting tasks, the U1701A puts a new level of convenience into the world of capacitance meters.
The U1701B handheld capacitance meter is now available, with the same outstanding performance and reliability of the U1701A, but in bright orange casing. Designed to give maximum visibility, the vivid color underlines Keysight commitment to safety in each of its handhelds.
Features
• 11,000 counts resolution
• Dual display with backlight
• Wide range: 1000 pF to 199.99 mF
• Compare mode with 25 sets of High/Low limit settings
• Tolerance mode: 1%, 5%, 10% and 20%
• Relative mode
• Hold and Min/Max/Average recordings

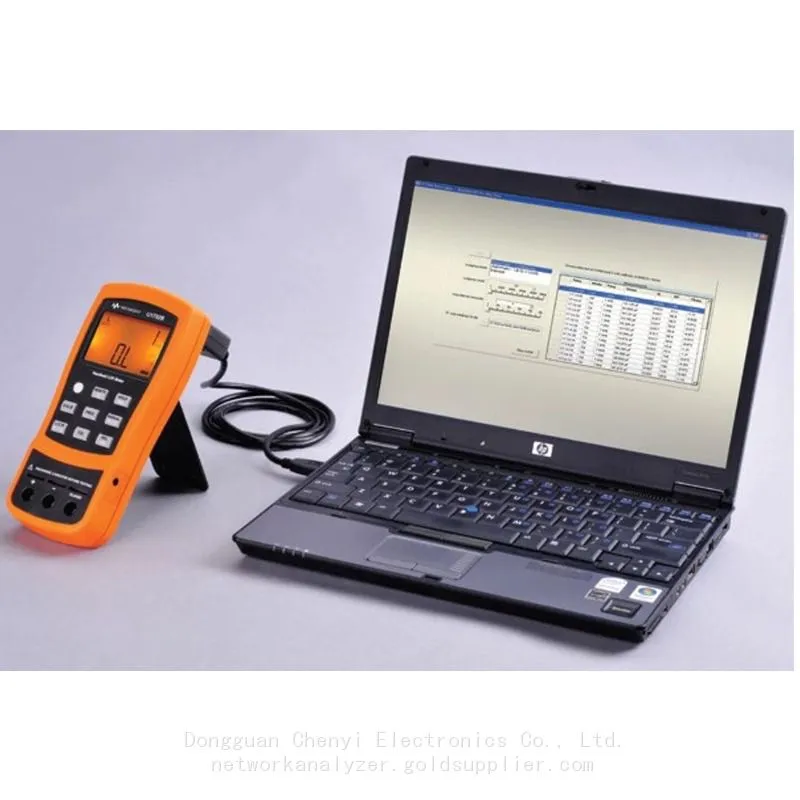

• Data logging to PC with optional IR-to-USB cable.
Efficient capacitor sorting
With up to 25 sets of High/Low limits that you can store and choose from in compare mode, the U1701B lets you breeze through capacitor sorting without the need to set and reset the standard reference for different capacitors-under-test.
The U1701B also comes with other handy functions, including tolerance and relative modes, Hold, Min/Max/Average recordings, and PC data logging.
Uncompromised quality and reliability
The handheld capacitance meter comes in a robust overmold and is tested to stringent industrial standards. Each capacitance meter is sealed with the assurance that you can test your components with confidence.

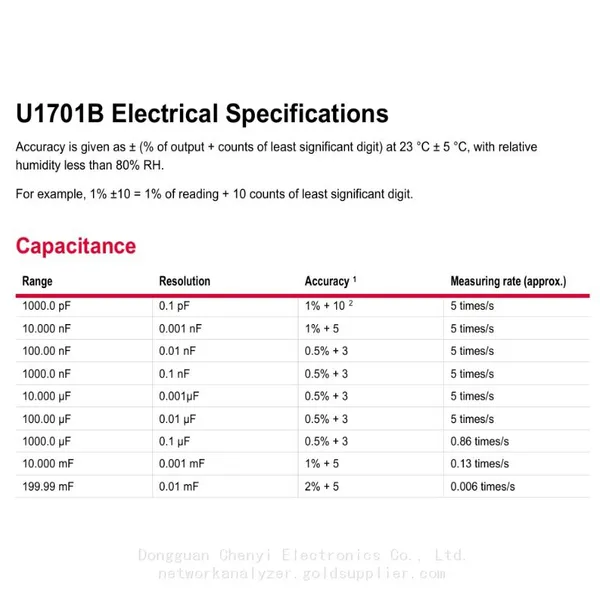

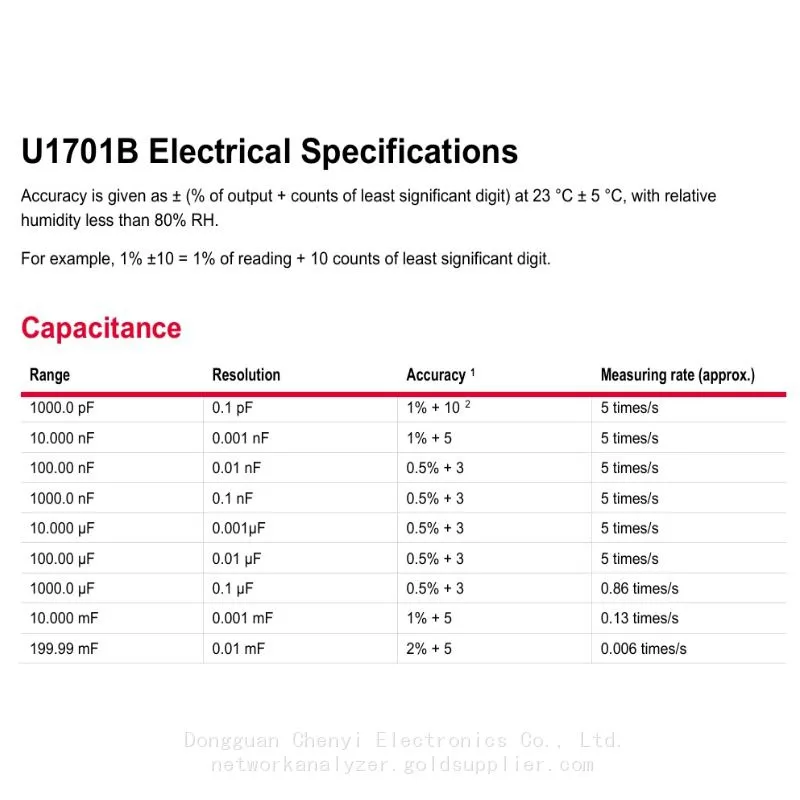

U1701B Electrical Specifications
Accuracy is given as ± (% of output + counts of least significant digit) at 23 °C ± 5 °C, with relative humidity less than 80% RH.
For example, 1% ±10 = 1% of reading + 10 counts of least significant digit
